GS1200

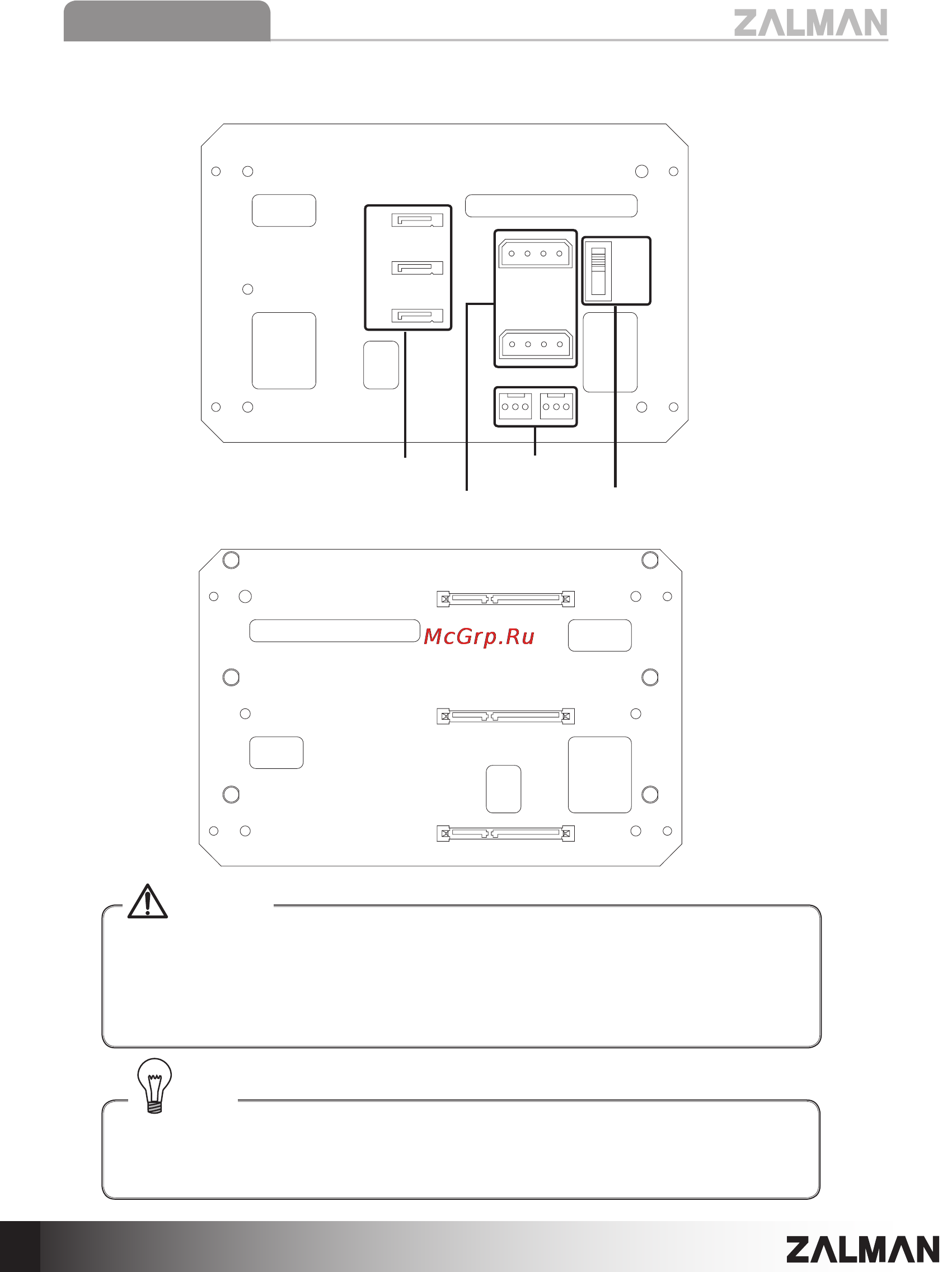

ZM-HS100 HOT SWAP PCB

① Rear

② Front

ZM-HS100 HOT SWAP PCB

HIGH

LOW

3-Pin Fan Connector

4-Pin Power Connector

Fan Controller

S-ATA Connector

4) Hot Swap PCB

Caution

▶ The S-ATA connectors connect in A=a / B=b / C=c conguration.

▶ To use the Hot-Swap feature, the S-ATA Cable(s) and the 4-Pin power cable must

be connected to the Hot-Swap PCB.

▶ For HDD stability, please power the system OFF before removing the HDD.

▶ Frequent installation and removal of an HDD can wear connectors.

▶ The fan controller enables selection of 12V or 5V power source.

▶ 1 Hot Swap PCB comes standard at the bottom of the case. Additional Hot Swap

PCB’s (ZM HS100) can be purchased separately.

Tip
