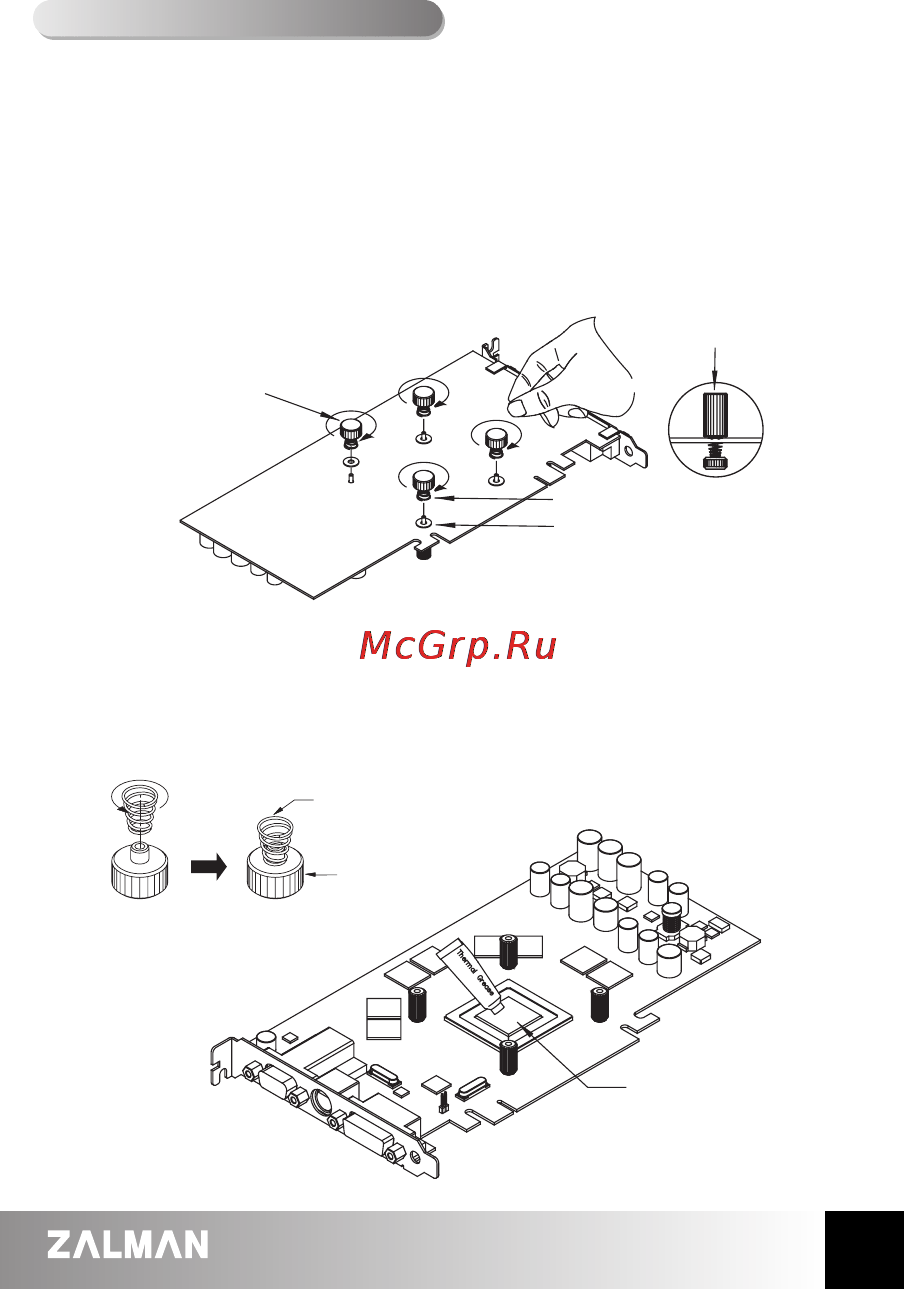

1) Install Nipples and Fixing Nuts

Insert the Nipples and Rubber Rings into the front side of the VGA card, then install

the Washer Plate (PVC), Springs, and Fixing Nuts in the mentioned order.

Note 1) Screw the Fixing Nuts only to a point so that the Fixing Nuts stay connected

to the Nipples (approximately two screw turns).

Note 2) The ends of the Springs are of different diameters. Install the Spring end with

the shorter diameter on the Fixing Nut.

2) Thermal Grease Applycation

Clean the contact surface of the VGA Chipset completely. Apply Thermal Grease on

the VGA Chipset that makes contact with the base of theVGA Cooler.
