Zalman ZM-GWB3 [6/9] Nipple

※

The specifications of any product may change without prior notice to improve performance.

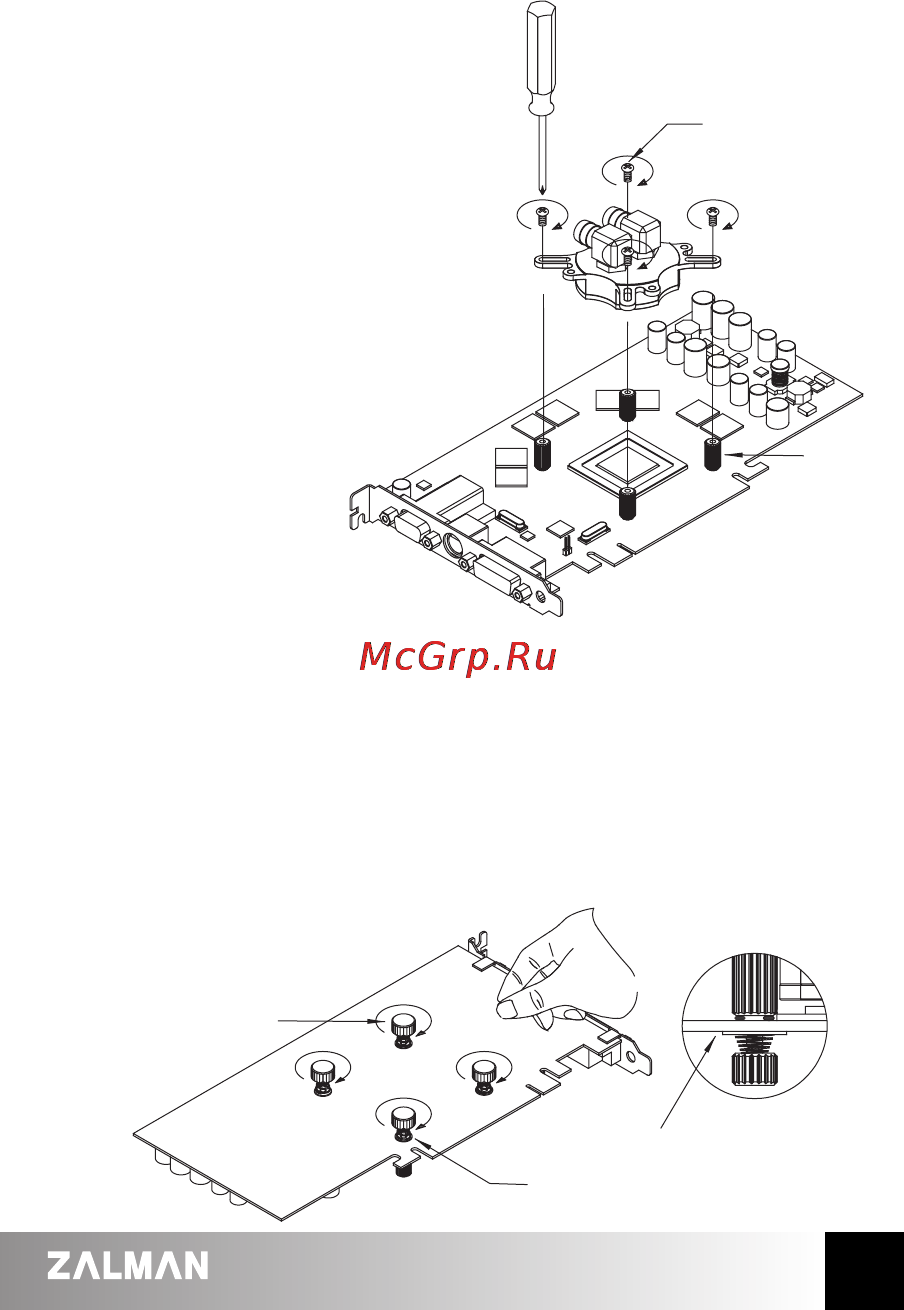

3) Installing the VGA Water Block

Place the VGA Water Block and the clip on

the center of the VGA chipset. Screw each

bolt B on each nipple slightly, and tighten

each bolt a few turns at a time while alternating

between the two until the bolt ends are

completely pressed against the Nipples.

Note 1) Nipples and Fixing Nuts are not

completely fixed on to each other,

therefore hold the Nipple with one hand

while screwing in the Bolts.

4) Control Tension between VGA Water Block and VGA Chipset

Tighten/loosen the Fixing Nuts on the back side of the VGA card in order to control the

tension between the VGA water block and VGA chipset.

Note 1) If the Fixing Nuts are turned too tightly, then damage to the VGA chipset or VGA

card could occur.

Note 2) Fully tightening one Fixing Nut at a time may result in damaging the VGA chipset.

Please tighten each Fixing Nut one rotation at a time until all are completely tightened.

Note3) Make sure that the VGA Cooler does not interfere with the VGA card's capacitors

and other components.

Nipple

Bolt

Spring

Washer Plate

Nut
