5) VGA Card Installation

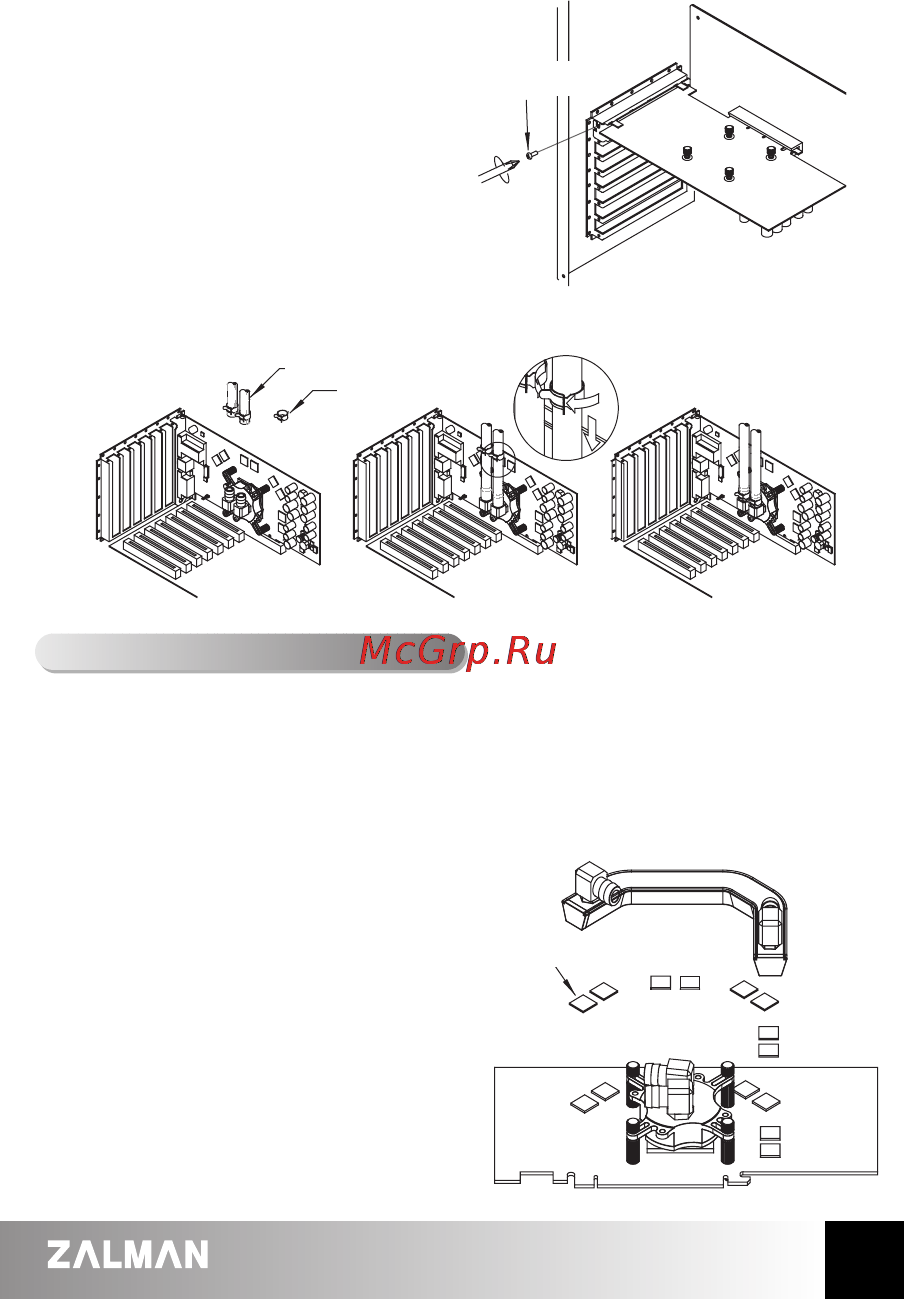

Insert the assembled VGA card into the

motherboard’s PCIe (or AGP) slot. Use

the Fixing Bolt to secure the VGA card

onto the computer case. If the VGA

card has a power connector on it,

remember to plug in th power cable.

6) Installing the Tubes and the Tube Clamps

Plug the tubes over the VGA Water Block’sfittings and install the Tube Clamps.

1) Remove the film from the thermal tapes on the bottom of theRAM Heatsinks and attach

the heatsinks on the VGA RAM.

Note 1) If Thermal Grease or other residue remains on the RAM, the Thermal Tapes will

not stick. Clean the surface of the RAM with acetone or alcoho before attaching.

Note 2) The bonding strength of theThermal

Tapes reaches 90% after 24 hours

of curing.

Do not exert excessiveforce on the

RAM Heatsinks during this period.

Note 3) Thermal Tapes are not reusable

because they lose adhesiveness

after their initial attachment.

Purchase new Thermal Tapes if

you need to reattach the RAM

Heatsinks.

Fixing Bolt

Thermal Tape

Tube

Tube Clamp

To install RWB1 (Optional)
