Zalman ZM-GWB3 [8/9] Ati hole

※

The specifications of any product may change without prior notice to improve performance.

2) Hooking the RWB1 Fixing Clip into the ATI hole positioned on the upper region

of the VGA water block will create tension. Now hook the other side of the RWB1

Fixing Clip on to the upper part of the RWB1 in order to safely install the RWB1

3) Installing the Tubes and the Tube Clamps

Plug the tubes over the VGA Water Block’s fittings and install the Tube Clamps.

Note 1) Use a proper tool (e.g. cutting nipper)when installing the Tube Clamps.

Note 2) Hold the VGA or RAM water block with one hand to keep them from moving

when installing the Tube.

Note 3) Cutting the tubes to adequate length before-hand will simplify the process of

connecting tubes to the VGA water block and RWB1

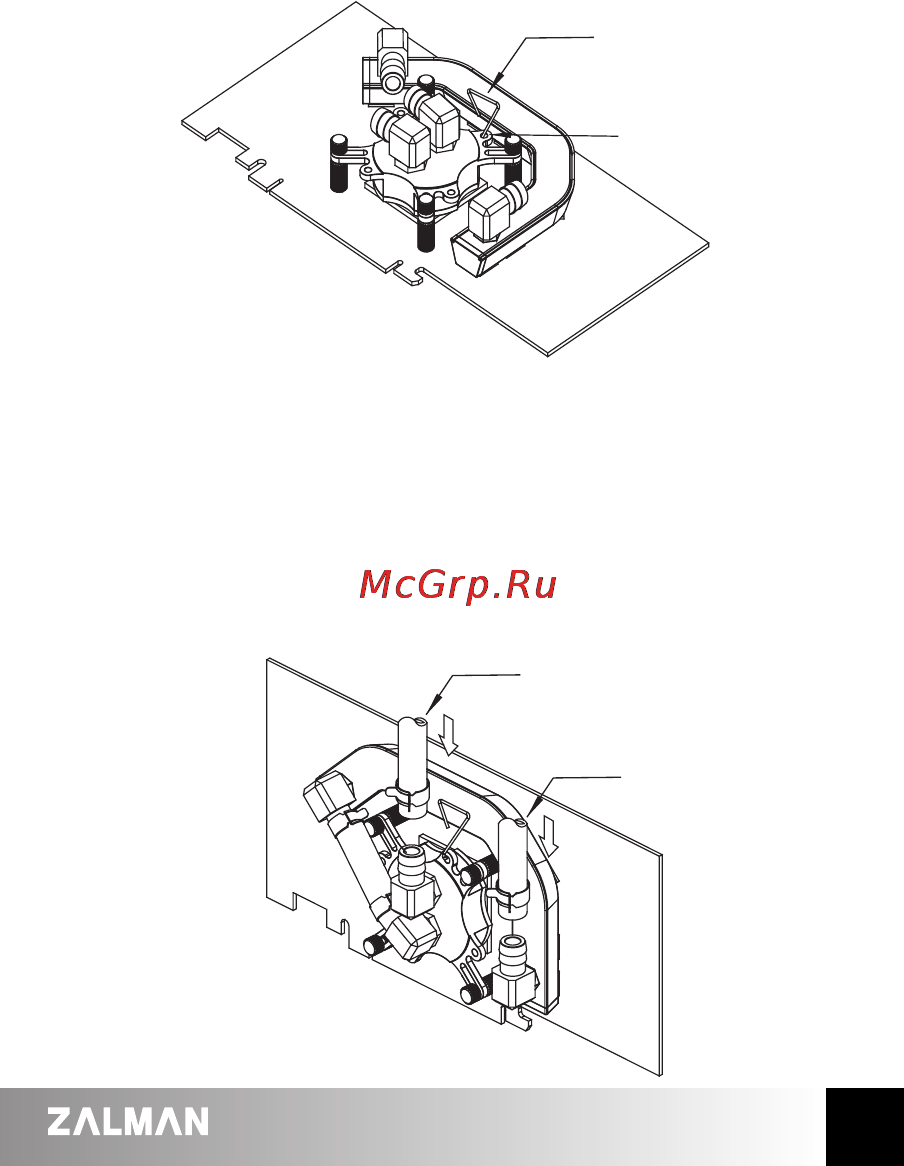

RWB1 Fixing Clip

ATI Hole

INLET

OUTLETT
