5. 13 Confirm Proper Installation

1) Check that the product is placed properly.

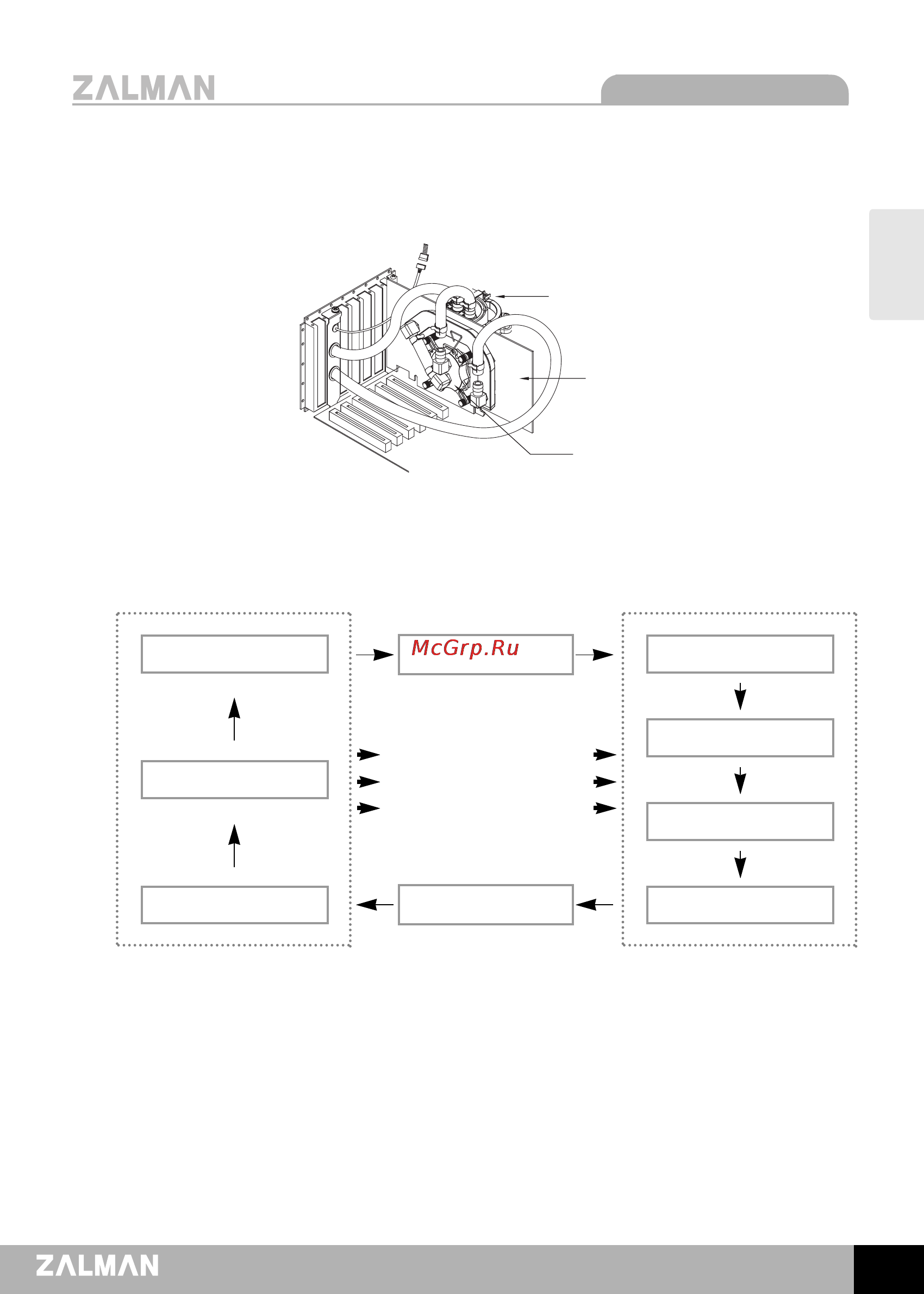

2) Confirm that the coolant circulation path is correct as shown below.

3) Lightly tug the PVC tube connected to each of the fittings to check for loose ends.

5. 14 Leakage Inspecting and Test Run

1) Supply power to the Reserator’s AC cable, and check to see if the green wire terminal

and the black wire terminal of the power supply’s main connector are connected to each

other with Jump Cable.

2) Check the amount of coolant inside the Reserator’s Reservoir, and fill it by approximately 70%.

3) Connect the power supply’s 4-Pin connector to the Reserator’s DC cable connector,

and provide power for the Power Supply by switching its ON/OFF button to ON.

4) Once the power is supplied, check to see if the flow indicator's impeller placed inside the

Reserator’s front panel is rotating, if the Blue LED is lit, and if the coolant is being circulated

to each water block.

Reserator OUT

CPU Water Block

N/B Water Block

VGA Water Block

RAM Water Block

Reserator IN

Flow Indicator

Heat Sink

Radiate

Heat

Absorb

Heat

Water Pump

CPU Water Block

VGA Water Block

VGA RAM Water Block

5. 12 Installing the VGA RAM Water Block

1) To install the VGA RAM Water Block, connect as shown in the diagram below.

2) Remember to install Tube Clamps on the PVC Tubes during installation.
