Zalman CNPS7000B-Cu LED [6/9] Installation amd duron athlon athlon xp sempron 462

※

The specifications of any product may change without prior notice to improve performance.

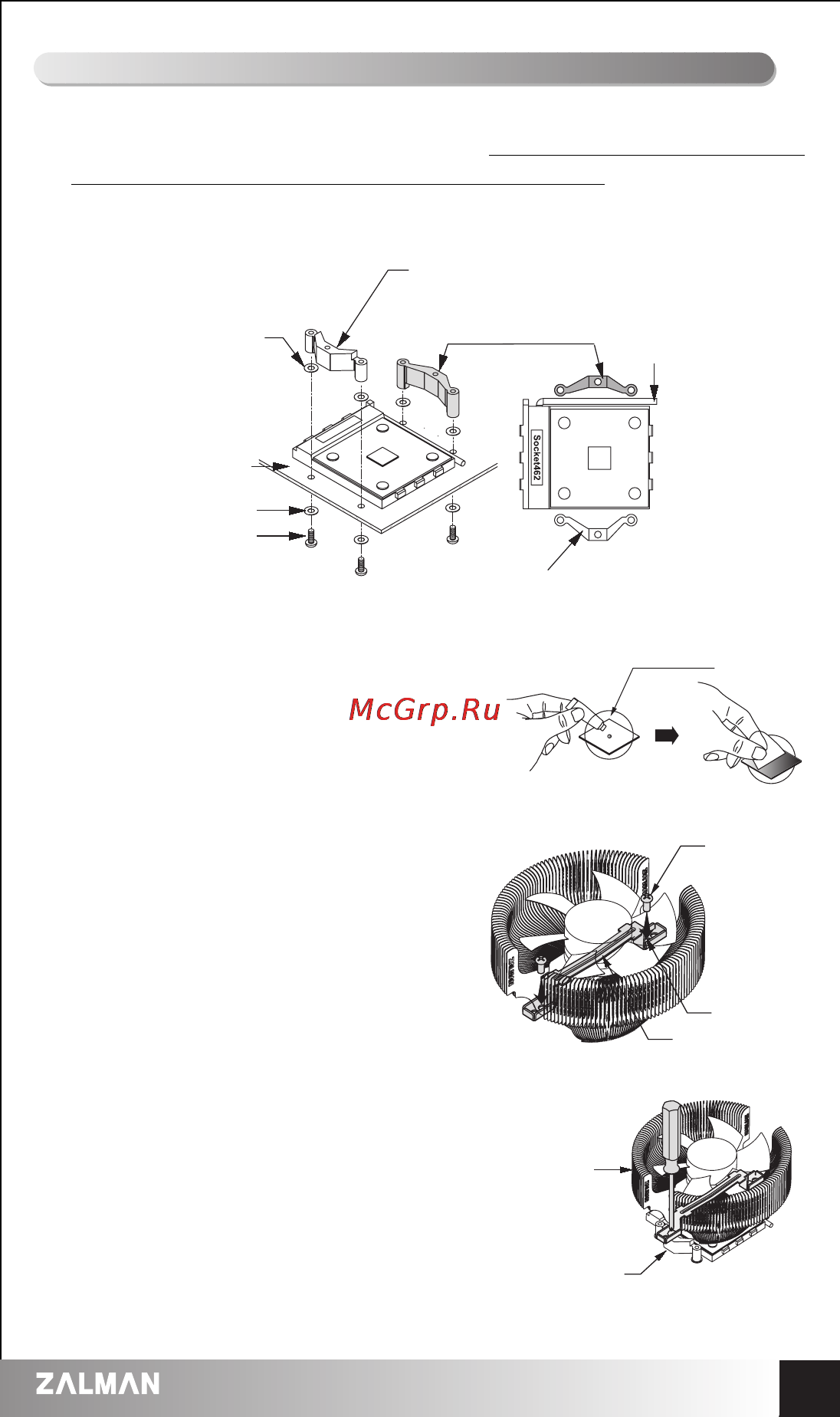

1) Install Clip Supports for Socket 462

Install the clip supports for socket 462 on the motherboard. Make sure to place A-type (blue : installed

near the lever) and B-type (white) supports at the appropriate location.

The installation should be done in the order of : bolts > small washers > motherboard > small washers >

clip supports (see below).

2) Apply Thermal Grease

Clean off particles and residue then spread a thin layer

of thermal grease on the CPU core (only on the chip's

surface that makes contact with the FHS base).

8. Installation (AMD Duron / Athlon / Athlon XP / Sempron - 462)

5) Connect Power (How to use FAN MATE 2)

◆

Please refer to FAN MATE 2 Installation and Usage on page 7.

3) Insert Bolts

Insert the two bolts into the inner holes of the clip.

4) Place FHS

Set the FHS at the center of the CPU. Screw the

bolts in slightly, then tighten each bolt a few turns at a time

while alternating between the two until the clip supports

are completely pressed against the clip.

FHS

Clip Support for

Socket 462

Bolt

Inner Hole

Clip

CPU

Thermal Grease

Clip Support B for Socket 462 (White)

Lever

Small Washer

Motherboard

Small Washer

Bolt

Clip Support B for Socket 462 (White)

Clip Support A for

Socket 462 (Blue)
