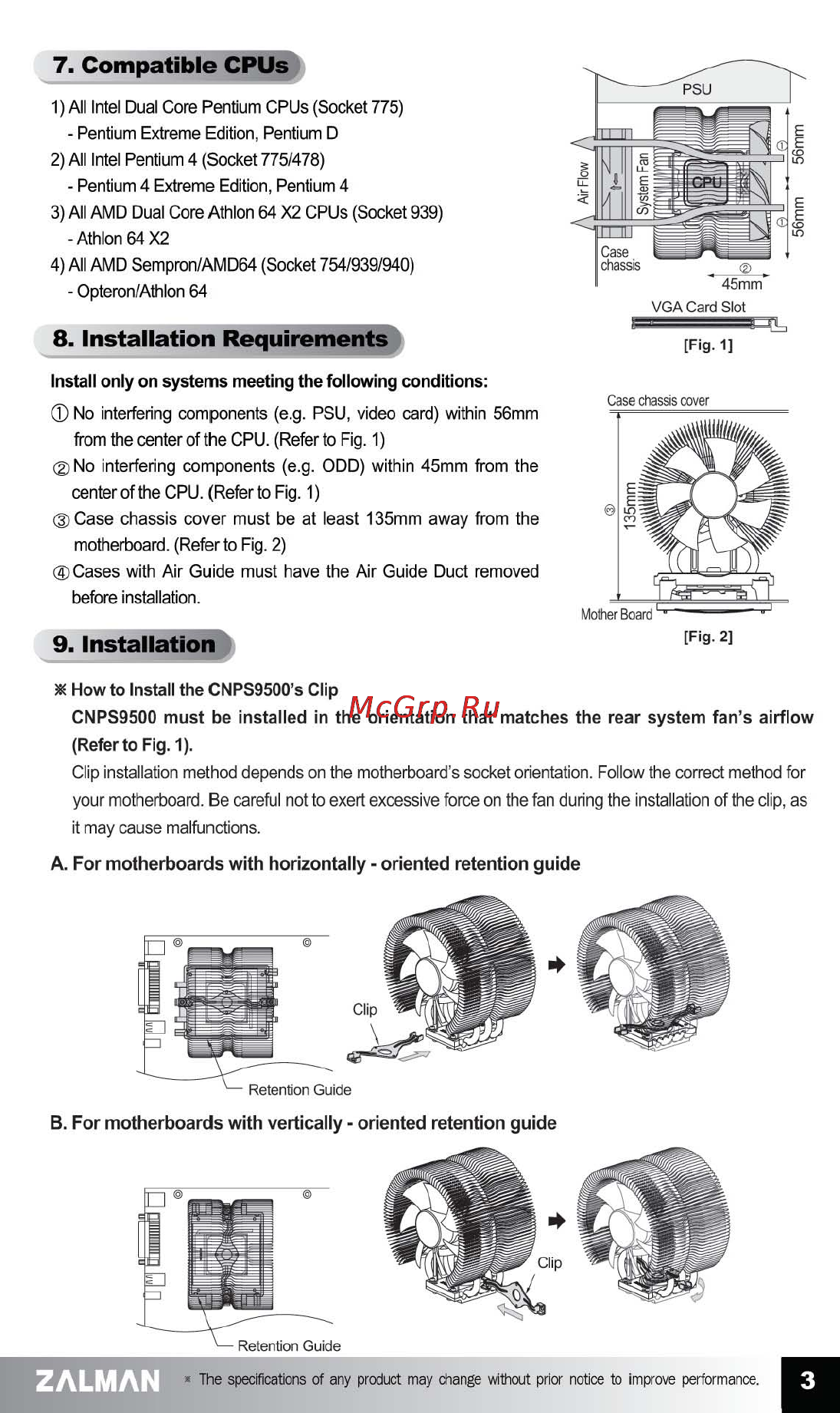

7 Compatible CPUs 1 All Intel Dual Core Pentium CPUs Socket 775 Pentium Extreme Edition Pentium D 2 All Intel Pentium 4 Socket 775 478 Pentium 4 Extreme Edition Pentium 4 3 All AMD Dual Core Athlon 64 X2 CPUs Socket 939 Athlon 64X2 4 All AMD Sempron AMD64 Socket 754 939 940 Opteron Athlon 64 8 Installation Requirements Fig 1 Install only on systems meeting the following conditions D No interfering components e g PSU video card within 56mm from the center of the CPU Refer to Fig 1 2 No interfering components e g ODD within 45mm from the center of the CPU Refer to Fig 1 Case chassis cover must be at least 135mm away from the motherboard Refer to Fig 2 Cases with Air Guide must have the Air Guide Duct removed before installation 9 Installation Howto Install the CNPS9500 s Clip CNPS9500 must be installed in the orientation that matches the rear system fan s airflow Refer to Fig 1 Clip installation method depends on the motherboard s socket orientation Follow the correct method for your motherboard Be careful not to exert excessive force on the fan during the installation of the clip as it may cause malfunctions A For motherboards with horizontally oriented retention guide B For motherboards with vertically oriented retention guide
