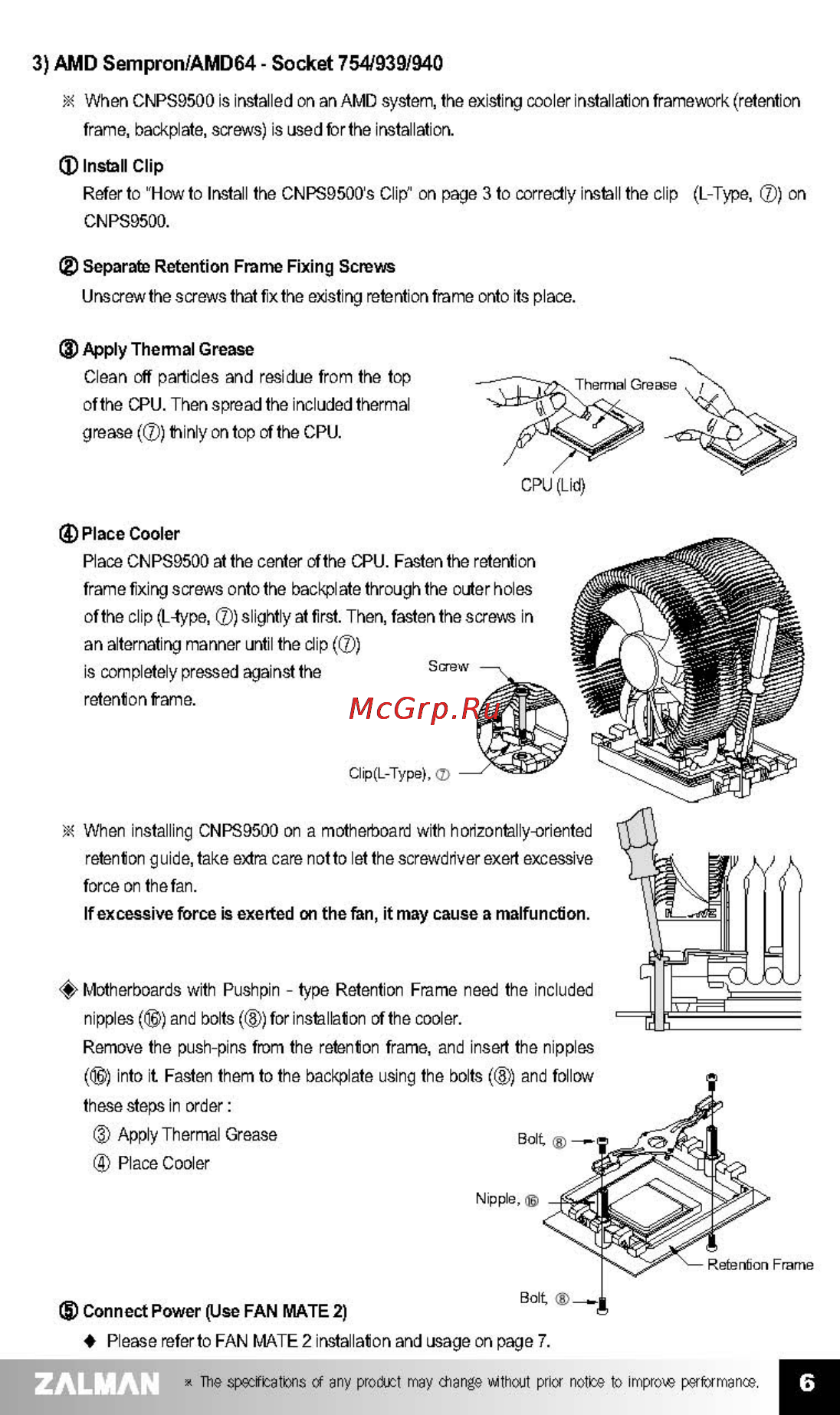

3 AMD Sempron AMD64 Socket 754 939 940 jx When CNPS9500 is installed on an AMD system the existing cooler installation framework retention frame backplate screws is used for the installation Install Clip Refer to How to Install the CNPS9500 s Clip on page 3 to correctly install the clip L Type on CNPS9500 Separate Retention Frame Fixing Screws Unscrew the screws that fix the existing retention frame onto its place Apply Thetmal Grease Clean off particles and residue from the top of the CPU Then spread the included thermal grease thinly on top of the CPU Place Cooler Place CNPS9500 at the center of the CPU Fasten tt frame fixing screws onto the backplate through the c of the clip L type slightly at first Then fasten the an alternating manner until the clip Scre is completely pressed against the retention frame Clip L Type iti When installing CNPS9500 on a motherboard with f retention guide take extra care not to let the screwdri force on the fan If excessive force is exerted on the fen it may cat Motherboards with Pushpin type Retention Frame nipples and bolts for installation of the cooler Remove the push pins from the retention frame a into it Fasten them to the backplate using the these steps in order Apply Thermal Grease Place Cooler Connect Power Use FAN MATE 2 Please refer to FAN MATE 2 installation and usage on page 7 ZALMAN x The specificatons of any product may change without prior notice to improve performance
