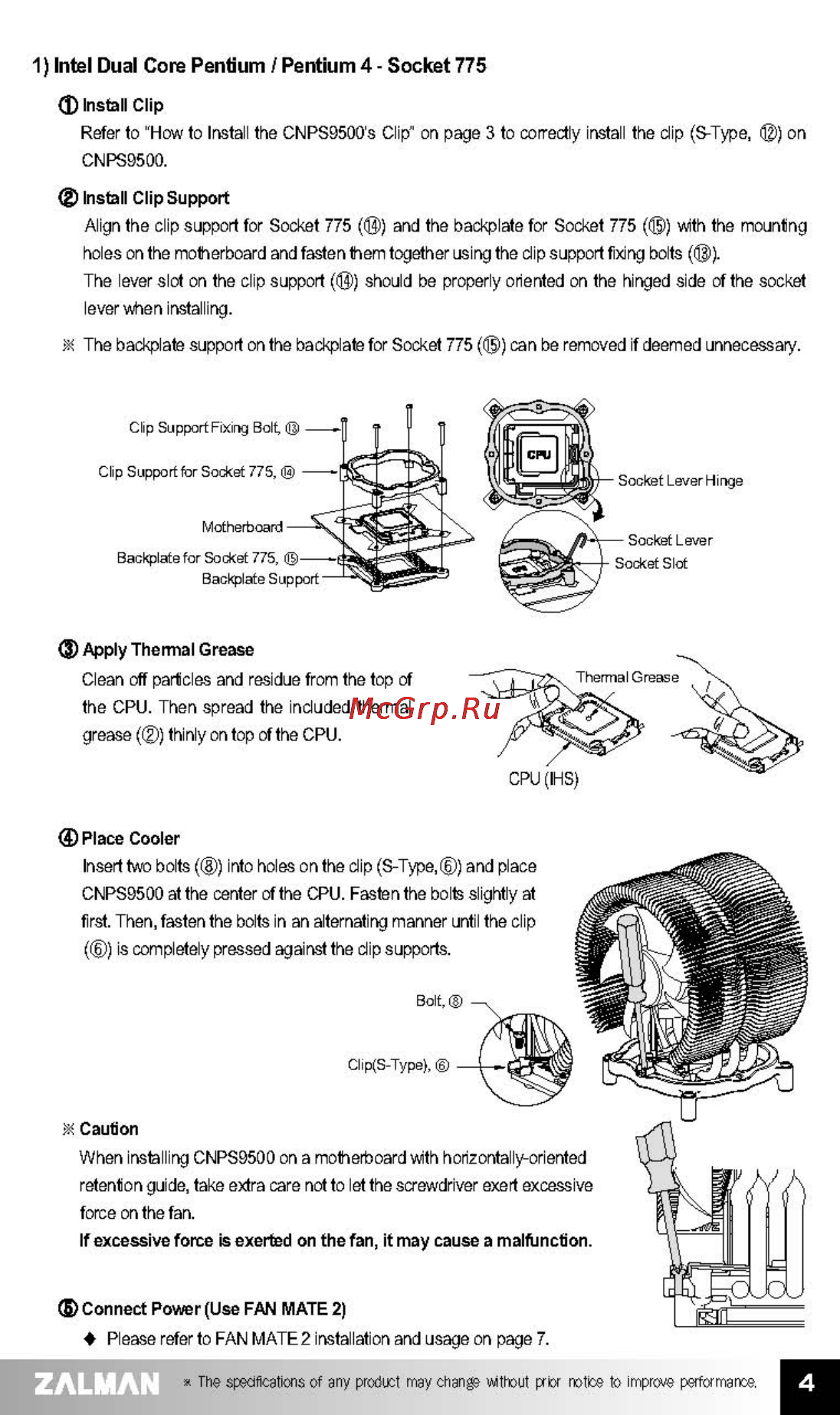

1 Intel Dual Core Pentium I Pentium 4 Socket 775 D Install Clip Refer to How to Install the CNPS9500 s Clip on page 3 to correctly install the clip S Type on CNPS9500 Install Clip Support Align the clip support for Socket 775 and the backplate for Socket 775 with the mounting holes on the motherboard and fasten them together using the clip support fixing bolts The lever slot on the clip support should be properly oriented on the hinged side of the socket lever when installing Si The backplate support on the backplate for Socket 775 can be removed if deemed unnecessary Apply Thermal Grease Clean off particles and residue from the top of the CPU Then spread the included thermal grease thinly on top of the CPU Place Cooler Insert two bolts into holes on the clip S Type and place CNPS9500 at the center of the CPU Fasten the bolts slightly at first Then fasten the bolts in an alternating manner until the clip is completely pressed against the clip supports Clip S Type iff Caution When installing CNPS9500 on a motherboard with horizontally oriented retention guide take extra care not to let the screwdriver exert excessive force on the fan If excessive force is exerted on the fan it may cause a malfunction Connect Power Use FAN MATE 2 Please refer to FAN MATE 2 installation and usage on page 7 ZALMAN The specifications of any product may change without prior notice to improve performance 4
