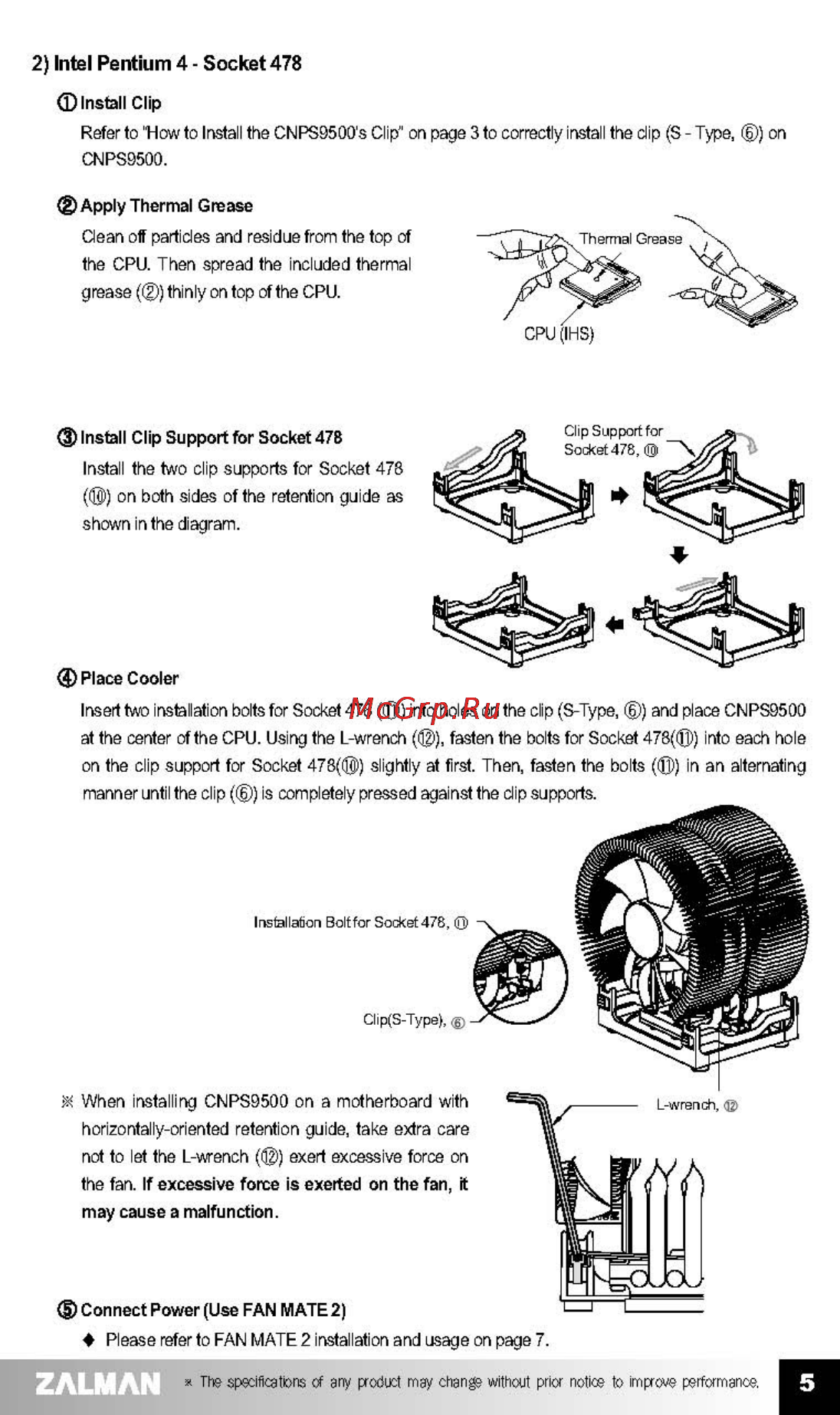

2 Intel Pentium 4 Socket 478 Install Clip Refer to How to Install the CNPS9500 s Clip on page 3 to correctly install the clip S Type on CNPS9500 ApplyThermal Grease Clean off particles and residue from the top of the CPU Then spread the included thermal grease thinly on top of the CPU Clip Support for Install Clip Support for Socket 478 Socket 478 Install the two clip supports for Socket 478 on both sides of the retention guide as shown in the diagram Place Cooler Insert two installation bolts for Socket 478 into holes on the clip S Type and place CNPS9500 at the center of the CPU Using the L wrench fasten the bolts for Socket 478 into each hole on the clip support for Socket 478 slightly at first Then fasten the bolts in an alternating manner until the clip is completely pressed against the clip supports Installation Boltfor Socket 478 Clip S Type gi When installing CNPS9500 on a motherboard with wrench horizontally oriented retention guide take extra care not to let the L wrench exert excessive force on the fan If excessive force is exerted on the fan it may cause a malfunction Connect Power Use FAN MATE 2 Please refer to FAN MATE 2 installation and usage on page 7 ZALMAN The specifications of any product may change without prior notice to improve performance 5
