CABLES
Type 3
Connecting to balanced equipment.

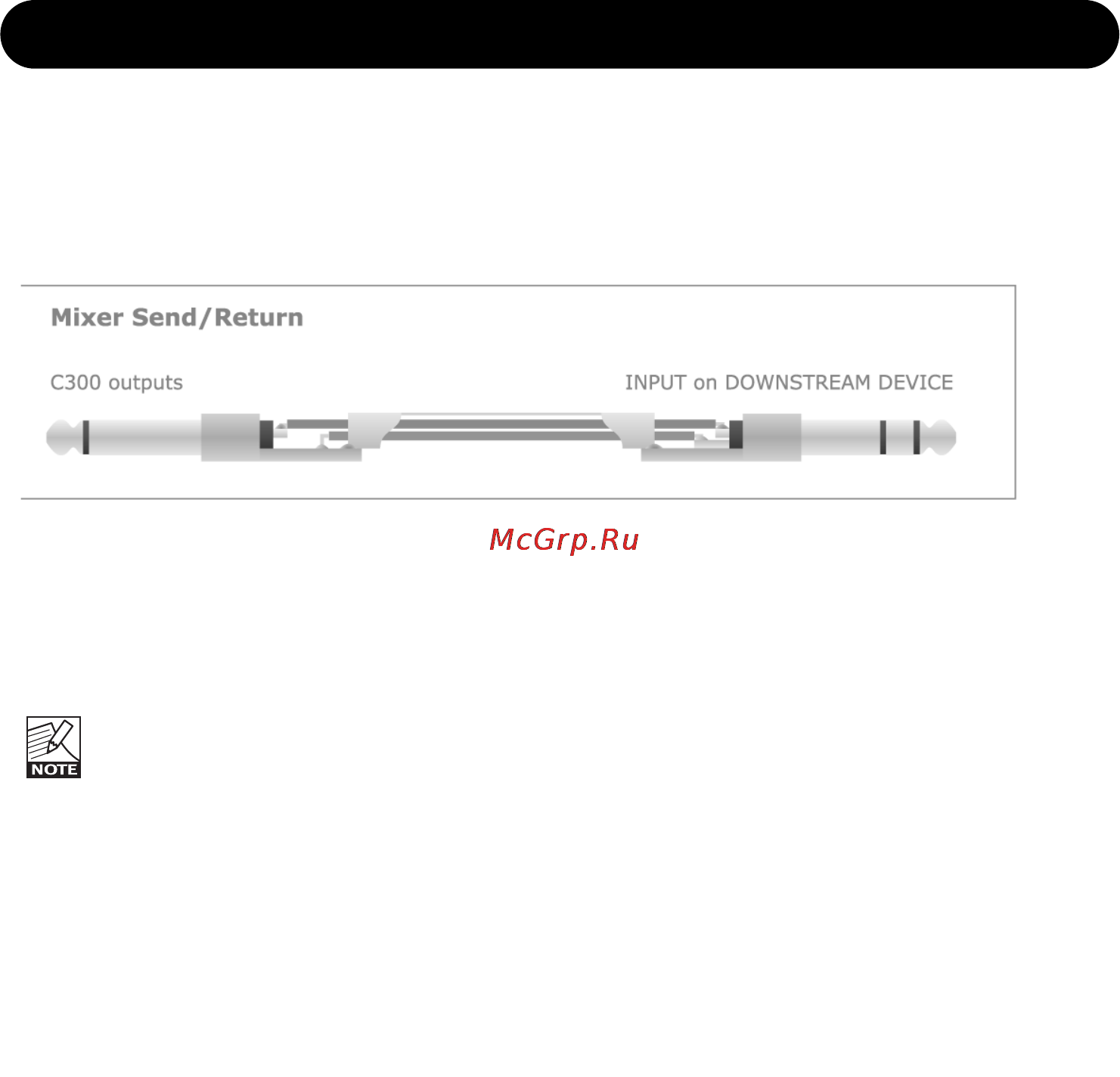

When connecting to C300 outputs to downstream devices with balanced inputs you MUST use
mono/unbalanced plugs in the C300 outputs.
Warning!
Do NOT use balanced cables from the C300
outputs. This may introduce unwanted hum or
noise.
It is a common problem that you will
loose 6dB of signal when connecting
unbalanced equipment to balanced.
This is not the case with the C300 if
you use the cables as described in this
section.
