Hertz ST 25 [4/16] Tweeter

TWEETER

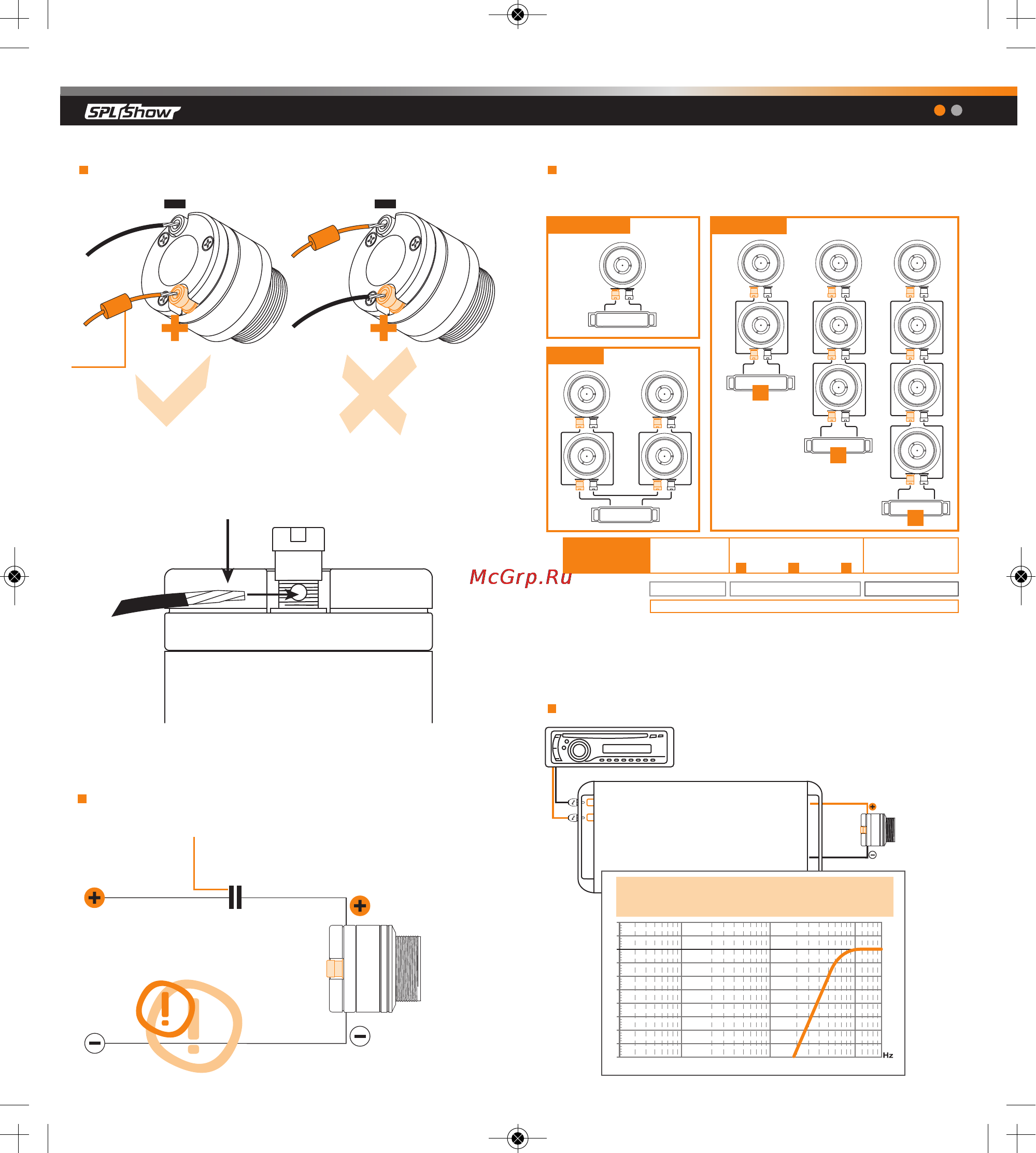

Esempi di collegamento / Connection patterns

Filtraggio elettronico / Electronic filtering

Filtraggio passivo / Passive filtering

Manuale d’uso | Owner’s manual

PARALLEL

MIXED

1 SPEAKER

1 Speaker Parallel mode Mixed mode

FREE AIR DC

RESISTANCE

1,60 1,07 0,80

ST 25

Misure espresse in Ω / Measures in Ω

2 3 4

3,203,20

Collegamenti / Connecting

Supplied

capacitor

Supplied

capacitor

3,3µF

Ø MAX: 2,5 mm

Minimum filtering:

ST 25: Hi-pass 5 kHz @ 12 dB Oct.

5020 100 20 0 500 1k 2k 10k5k 20k

6 7
