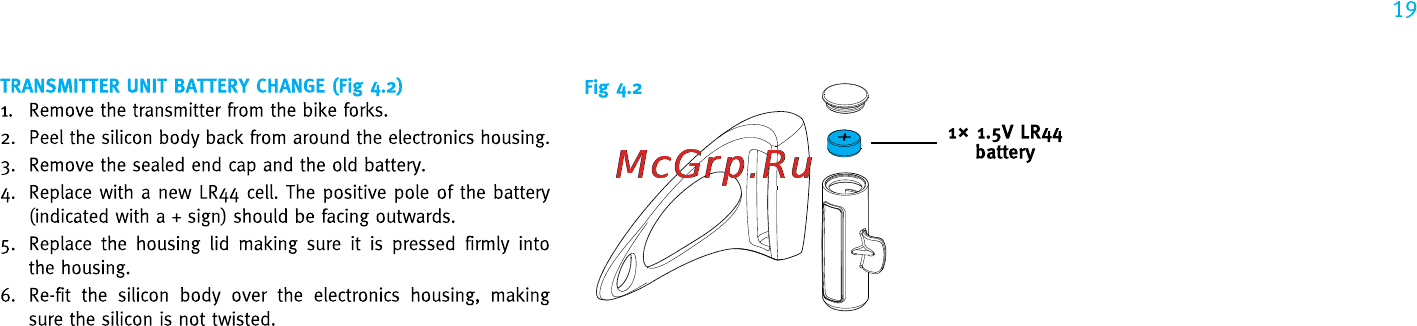

19 TRANSMITTER UNIT BATTERY CHANGE Fig 4 2 Fig 4 2 1 Remove the transmitter from the bike forks 2 Peel the silicon body back from around the electronics housing 3 Remove the sealed end cap and the old battery 4 Replace with a new LR44 cell The positive pole of the battery indicated with a sign should be facing outwards 5 Replace the housing lid making sure it is pressed firmly into the housing 6 Re fit the silicon body over the electronics housing making sure the silicon is not twisted x 1 5V LR44 battery
