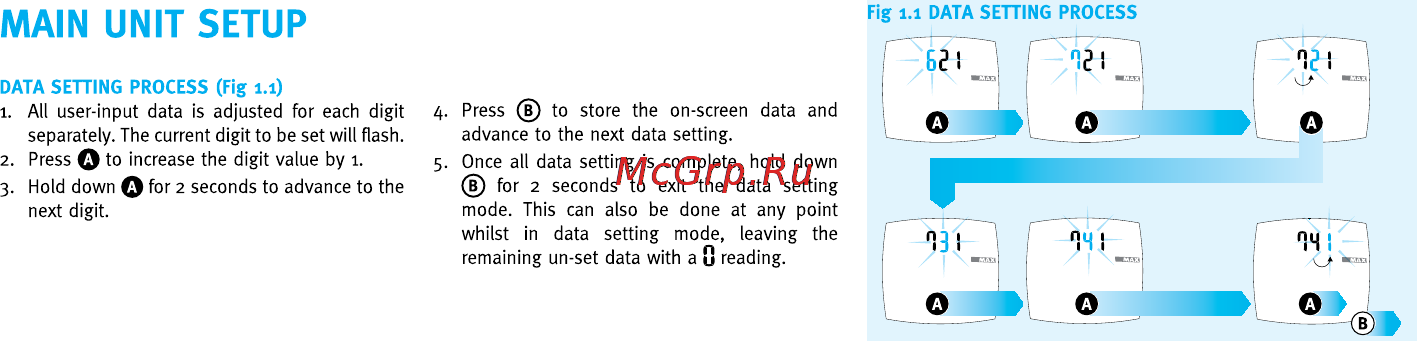

Fig 1 1 DATA S ERI NG PROCESS MAIN UNIT SETUP DATA SETTING PROCESS Fig 1 1 i All user input data is adjusted for each digit separately The current digit to be set will flash 2 Press 0 to increase the digit value by i 3 Hold down 0 for 2 seconds to advance to the next digit 4 Press to store the on screen data and advance to the next data setting 5 Once all data setting is complete hold down for 2 seconds to exit the data setting mode This can also be done at any point whilst in data setting mode leaving the remaining un set data with a 0 reading
