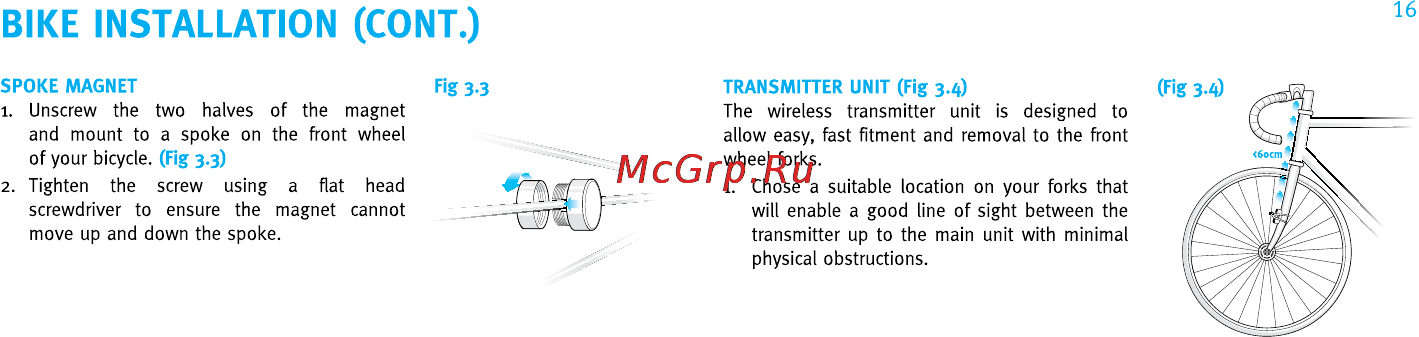

16 BIKE INSTALLATION CONT SPOKE MAGNET i Unscrew the two halves of the magnet and mount to a spoke on the front wheel of your bicycle Fig 3 3 2 Tighten the screw using a flat head screwdriver to ensure the magnet cannot move up and down the spoke Fig 3 3 TRANSMITTER UNIT Fig 3 4 The wireless transmitter unit is designed to allow easy fast fitment and removal to the front wheel forks 1 Chose a suitable location on your forks that will enable a good line of sight between the transmitter up to the main unit with minimal physical obstructions Fig 3 4
