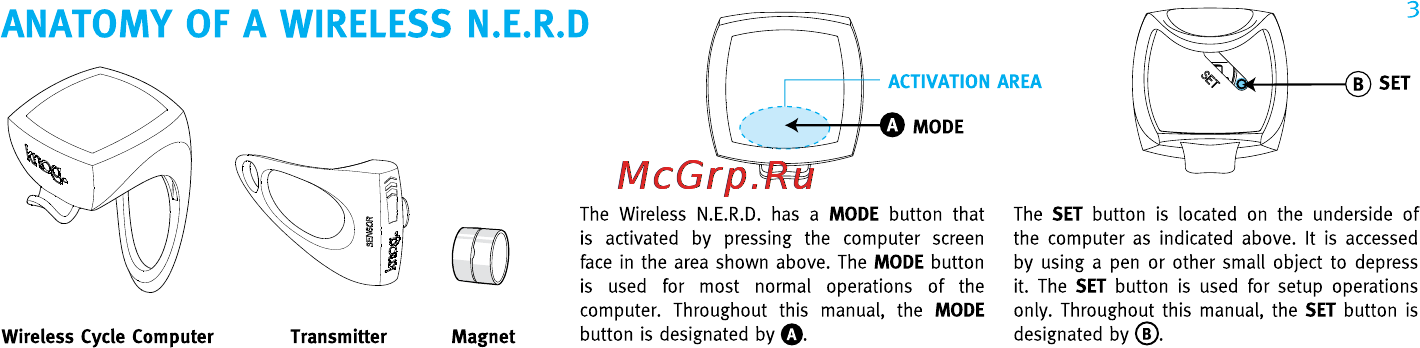

ANATOMY OF A WIRELESS N E R D ACTIVATION O MODE Wireless Cycle Computer Transmitter Magnet The Wireless N E R D has a MODE button that is activated by pressing the computer screen face in the area shown above The MODE button is used for most normal operations of the computer Throughout this manual the MODE button is designated by 0 The SET button is located on the underside of the computer as indicated above It is accessed by using a pen or other small object to depress it The SET button is used for setup operations only Throughout this manual the SET button is designated by B
