BMW R850C (1999) [148/288] Renewing input shaft sealing ring at output side
![BMW R850C (1999) [148/288] Renewing input shaft sealing ring at output side](/views2/1121022/page148/bg94.png)
23.8
Renewing input shaft sealing ring at output side
•
Pierce the shaft sealing ring with piercing tool,
BMWNo.008583.
•
Screw the pull rod, BMW No. 00 8 581, into the
pierced hole and use impact weight,
BMWNo.008582, to remove the shaft sealing
ring.
•
Install the new sealing ring with the sealing lips
facing inwards, using guide pin,
BMWNo.234722, and impact driver,
BMWNo.234721.
Renewing shaft sealing ring for selector drum
•
Lever the shaft sealing ring out with a screw-
driver.
•
Install the new sealing ring with the sealing lips
facing inwards, using impact driver,
BMWNo.234750.
Renewing sealing ring for selector shaft
•
Lever the shaft sealing ring out with a screw-
driver.
•
Install the new sealing ring with the sealing lips
facing inwards, using slip-over sleeve,
BMWNo.234612, and impact driver,
BMWNo.234740.

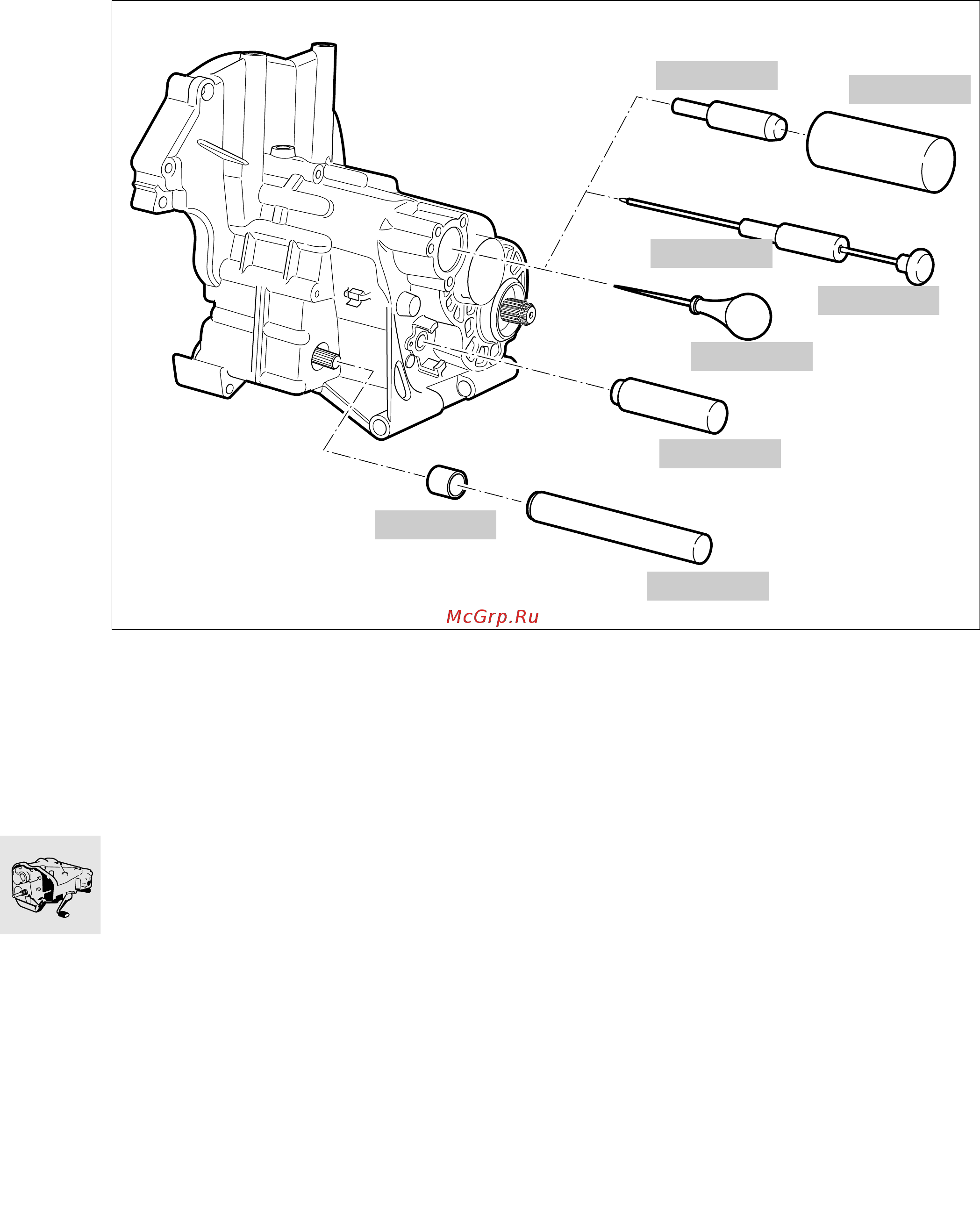

C230160
23 4 612
23 4 740
23 4 750
00 8 581
23 4 721
234722
00 8 583
00 8 582
