Yamaha XS360 (1976-1982) [20/34] Yamaha xs360 400

Содержание

• A sight glass in the crankcase is pro 1
• Below 15 c 59 f use sae 10w 30 service rating se or sf 1
• Checking oil level xs400gisg on 1
• General specifications ________________ 1
• In order to prevent possible confusion when ordering parts always refer to the engine and frame serial numbers 1
• Lubrication 1
• Maintenance 1
• Motor oil 1
• Note common maintenance procedures are explained in detail in general infor mation 1
• Recommended lubricants chart at the end of this section 1
• Serial number location 1
• Side of the steering lug while the engine number is located on a raised boss just be hind the right cylinder on the top of the crankcases 1
• Straight grades can also be used according 1
• The frame number is stamped on the right 1
• To ambient air temperatures as given in the 1
• Vided to enable the rider to check oil level at a glance when checking the motorcycle should be parked on the centerstand on a level surface 1
• When the air temperature is consistently 1
• When the average air temperature is above 5 c 41 f use yamalube 4 stroke oil or sae 20w 40 service rating se or sf 1
• Yamaha xs360 400 1
• Changing oil 2
• Filter screen 2
• Front forks 2
• Oil filter 2
• Other models 2
• Yamaha xs360 400 2
• Chassis lubrication 3
• Clutch 3
• Drive chain 3
• Service checks and adjustments 3
• Yamaha xs360 400 3
• Brakes front disc 4
• Rear disc 4
• Throttle cable 4
• Yamaha xs360 400 4
• Brake light switches 5
• Front drum 5
• Fuel system 5
• Headlight adjustment 5
• Petcock 5
• Rear drum 5
• Yamaha xs360 400 5
• Air filters 6
• Although major overhaul of the carbu 6
• Blow out the elements from the inside 6
• Carburetors 6
• Caution do not let gasoline spill on a hot engine 3 remove the four screws which secure 6
• Check the sealing washer and replace it 6
• Clean the filter screen in a solvent be 6
• Disconnect the fuel line from the petcock and the vacuum line from the manifold 6
• Each float bowl and carefully lower the bowls until they are clear of the float mechanism 6
• If it is damaged 6
• Install the petcock after the tank is 6
• Install them 6
• Intervals 6
• Maintenance data 6
• Make sure that the petcock is shut off 6
• Note after several such cleanings the elements should be replaced with new ones the service interval for replacement will depend upon the amount of dirt build up on the elements 5 refit the elements into their cases and 6
• Periodic maintenance 6
• Pilot jets these are fitted to the float bowl on 360 models and are on the carburetor bodies on 400 models blow the jets clear then rein stall clean any foreign matter out of the float bowls when installing position the bowls carefully to avoid damage to the floats tighten the screws gradually and evenly check for fuel leaks before operation 6
• Recommended lubricants 6
• Refitted check for leaks before operating the motorcycle 6
• Remove the case screws and separate 6
• Remove the gas tank drain off the fuel 3 unscrew the petcock securing nut or 6
• Remove the side covers 2 loosen the carburetor clamp remove 6
• Res position drain the fuel from the car buretor float bowls by removing the main jet cover bolt from the bottom of the float bowls 6
• Retors requires their removal as a unit the float bowls and jets can be cleaned with the units in place 6
• Set the petcock to the res position 6
• Sure to remove any foreign matter trapped in the screen as this will impede fuel flow if the screen cannot be cleaned or if it is punc tured or otherwise damaged it should be re placed 6
• The case halves removing the filter element 6
• The element case holder screw take off the securing band and remove the element case 6
• Two phillips screws depending upon the method of fastening and pull off the petcock 6
• Unscrew and remove the main and 6
• With compressed air 6
• Yamaha xs360 400 6
• Cam chain adjustment 7
• Compression test 7
• Contact breaker points 7
• Location 7
• Replacement 7
• Tune up 7
• Valve adjustment 7
• Yamaha xs360 400 7
• Dynamic timing 8
• Gapping 8
• Ignition timing breaker point models 8
• Lubrication 8
• Yamaha xs360 400 8
• Adjusting float level 9
• Carburetors 9
• Ignition timing xs400g sg h 9
• Static timing 9
• Synchronization 9
• Yamaha xs360 400 9
• Connect the vacuum gauges 5 start the engine and note the vacuum 10
• Ders must be within 5 cm hg 0 in hg adjust if necessary by turning the synchro nization screw in or out until the vacuum readings for the two cylinders is as identical as possible 10
• Feed line if necessary so that the synchro nization screw between the carburetors is ac cessible 10
• Idle speed and mixture 10
• Idle speed is set by means of the throt 10
• If the limiter caps are missing or if the 10
• Manifolds the vacuum gauge fitting for the right cylinder operates the fuel petcock dis connect the petcock line from the fitting and turn the petcock to the prime position for the duration of the procedure 10
• Note if the vacuum gauges read more than 5 cm hg 0 in hg at 1 200 rpm check the compression spark plugs igni tion timing and valve clearance 6 if vacuum gauges are not available a 10
• Pilot screws have been removed as during a carburetor overhaul pilot screw adjustment is accomplished by screwing the pilot screws in very carefully until lightly seated then backing them out 1 turns on 360 models and 1 turns on 400 models 10
• Readings at idle 1 200 rpm the two cylin 10
• Rough method of synchronizing the carbu retors may be carried out remove the car buretors as a unit from the motorcycle look into the engine side of the carburetors and note the relative positions of the edges of the butterflies in relation to the small by pass passages in the bottom of the bores both butterflies should be in the same position relative to these by pass holes 10
• Screw fitted to each carburetor the screws are fixed in position by means of idle limiter caps this is designed to reduce emissions therefore it is not generally necessary to ad just the pilot screws 10
• The idle mixture is controlled by a pilot 10
• The vacuum gauge fittings are on the 10
• Tle stop screw between the carburetors idle speed is 1 200 rpm and must be adjusted when the engine is at operating temperature 10
• Tune up specifications 10
• Yamaha xs360 400 10
• Cylinder head removal 11
• Engine and transmission 11
• Engine removal and installation 11
• Engine service 11
• Top end 11
• Yamaha xs360 400 11
• Cylinder and piston removal 12
• Cylinder head 12
• Inspection camshaft 12
• Rocker arms and shafts 12
• Valve assembly 12
• Yamaha xs360 400 12
• Cylinders and pistons 13
• Lapping 13
• Seat cutting 13
• Yamaha xs360 400 13
• Cylinder and piston installation 14
• Cylinder head installation 14
• Piston rings 14
• Yamaha xs360 400 14
• Clutch removal 15
• Crankcase cover components 15
• Yamaha xs360 400 15
• Gearshift mechanism removal 16
• Inspection 16
• Installation 16
• Kickstarter shaft removal 16
• Oil pump 16
• Yamaha xs360 400 16
• Alternator starter drive removal 17
• Case assembly 17
• Engine sprocket removal 17
• Inspection 17
• Installation 17
• Lower end and transmission 17
• Splitting the crankcases 17
• Transmission gear shift assembly removal 17
• Yamaha xs360 400 17
• Assembly 18
• Crankshaft removal 18
• Inspection 18
• Yamaha xs360 400 18
• 1 blue 19
• 2 black 19
• Before installing connecting rods on the 19
• Berance is towards the intake side of the engine be sure that the rods are installed so that the cap numbers align with the rod num bers 19
• Big end bearing no crankpin no 19
• Brown green 19
• Coat the con rod bolt threads with a 19
• Crankcase no journal no insert 19
• Crankpins thoroughly lubricate the bearings with motor oil install the rods so that the yamaha mark on both rods faces the left end of the crankshaft and the bearing protu 19
• Engine specifications 19
• Going to be replaced be sure that the weight codes stamped on the rod and cap match for both rods 19
• If one or both of the connecting rods is 19
• Insert 19
• Molybdenum disulphide lubricant and 19
• Replace big end bearing inserts with in 19
• Rod side play at the small end if the move ment exceeds 0 mm 0 19 in the big end bearing should be replaced 19
• Serts of the same color code if the color is no longer visible on the old insert select a re placement according to the following chart 19
• Torque them to 24 28 ft lbs 19
• With a dial gauge check connecting 19
• Yamaha xs360 400 19
• Checking oil pressure 20
• Engine specifications cont 20
• Engine torque specifications 20
• Inspection 20
• Installation 20
• Lubrication system 20
• Oil pump 20
• Operational description 20
• Removal 20
• Yamaha xs360 400 20
• Carburetors 21
• Fuel system 21
• Installation 21
• Lubrication system specifications 21
• Removal 21
• Yamaha xs360 400 21
• Disassembly 22
• Inspection 22
• Yamaha xs360 400 22
• Alternator output check 23
• Assembly 23
• Carburetor specifications 23
• Charging system 23
• Electrical system 23
• Field coiliarmature tests 23
• Fuel petcock 23
• Yamaha xs360 400 23
• Breaker point ignition 24
• Pick up coil removal and installation 24
• Rectifier 24
• Regulator 24
• Transistorized ignition 24
• Troubleshooting 24
• Yamaha xs360 400 24
• Brake light 25
• Electrical components 25
• Inspection 25
• Neutral indicator 25
• Starter motor service removal and installation 25
• Starter solenoid 25
• Starting system 25
• Taillight 25
• Testing 25
• Turn signals 25
• Yamaha xs360 400 25
• Oil pressure indicator 26
• Self cancelling turn signal system 26
• Wiring diagrams 26
• Yamaha xs360 400 26
• Yamaha xs360 400 27
• J xs400fonly 28
• Wiring diagrams 28
• Xs400 2e 28
• Xs400f 2f 28
• Yamaha xs360 400 28
• Chassis 29
• Wiring diagrams 29
• Yamaha xs360 400 29
• Bleeding 30
• Disc brake service 30
• Flushing 30
• Precautions 30
• Rear wheel assembly removal and installation 30
• Tubeless tires 30
• Wheel bearings 30
• Yamaha xs360 400 30
• Caliper 31
• Front disc brake pad replacement 31
• Master cylinder 31
• Yamaha xs360 400 31
• Disc service 32
• Dissassembly 32
• Front drum brake 32
• Front forks 32
• Inspection 32
• Rear disc brake 32
• Rear drum brake 32
• Removal 32
• Yamaha xs360 400 32
• Assembly 33
• Bearing adjustment 33
• Disassembly 33
• Inspection 33
• Installation 33
• Steering stem assembly 33
• Yamaha xs360 400 33
• Assembly 34
• Inspection 34
• Rear shocks 34
• Removal and installation 34
• Swing arm 34
• Yamaha xs360 400 34

Похожие устройства

• Tesy GCH/L 12044 30 B12 TSR Инструкция по эксплуатации
• Yamaha XJR1300 (P) (2002) Инструкция по эксплуатации
• Tesy GCV 3036 16D A04 TS2R Инструкция по эксплуатации
• Yamaha XJR1300 (L) (1999) Инструкция по эксплуатации
• Tesy GCV 6036 20D A04 TS2R Инструкция по эксплуатации
• Yamaha XJ900S (G) (1995) Инструкция по эксплуатации
• Tesy GCV 8036 24D A04 TS2R Инструкция по эксплуатации
• Yamaha XJ750 (1980-1984) Инструкция по эксплуатации
• Tesy GCV 5045 16D A04 TS2R Инструкция по эксплуатации
• Yamaha XJ650 (1980-1984) Инструкция по эксплуатации
• Tesy GCV 8045 24D A04 TS2R Инструкция по эксплуатации
• Yamaha WR450FR (2003) Инструкция по эксплуатации
• Tesy GCV 10045 24D A04 TS2R Инструкция по эксплуатации
• Yamaha WR250FR (2002) Инструкция по эксплуатации
• Tesy GCV 12045 24D A04 TS2R Инструкция по эксплуатации
• Yamaha VMX12HC (1995) Инструкция по эксплуатации
• Tesy GCV 15045 24D A04 TS2R Инструкция по эксплуатации
• Yamaha VMX12H (1995) Инструкция по эксплуатации
• Tesy GCH[L] 8045 20D A04 TS2R ANTICALC Инструкция по эксплуатации
• Yamaha TZR250 (1987) Инструкция по эксплуатации

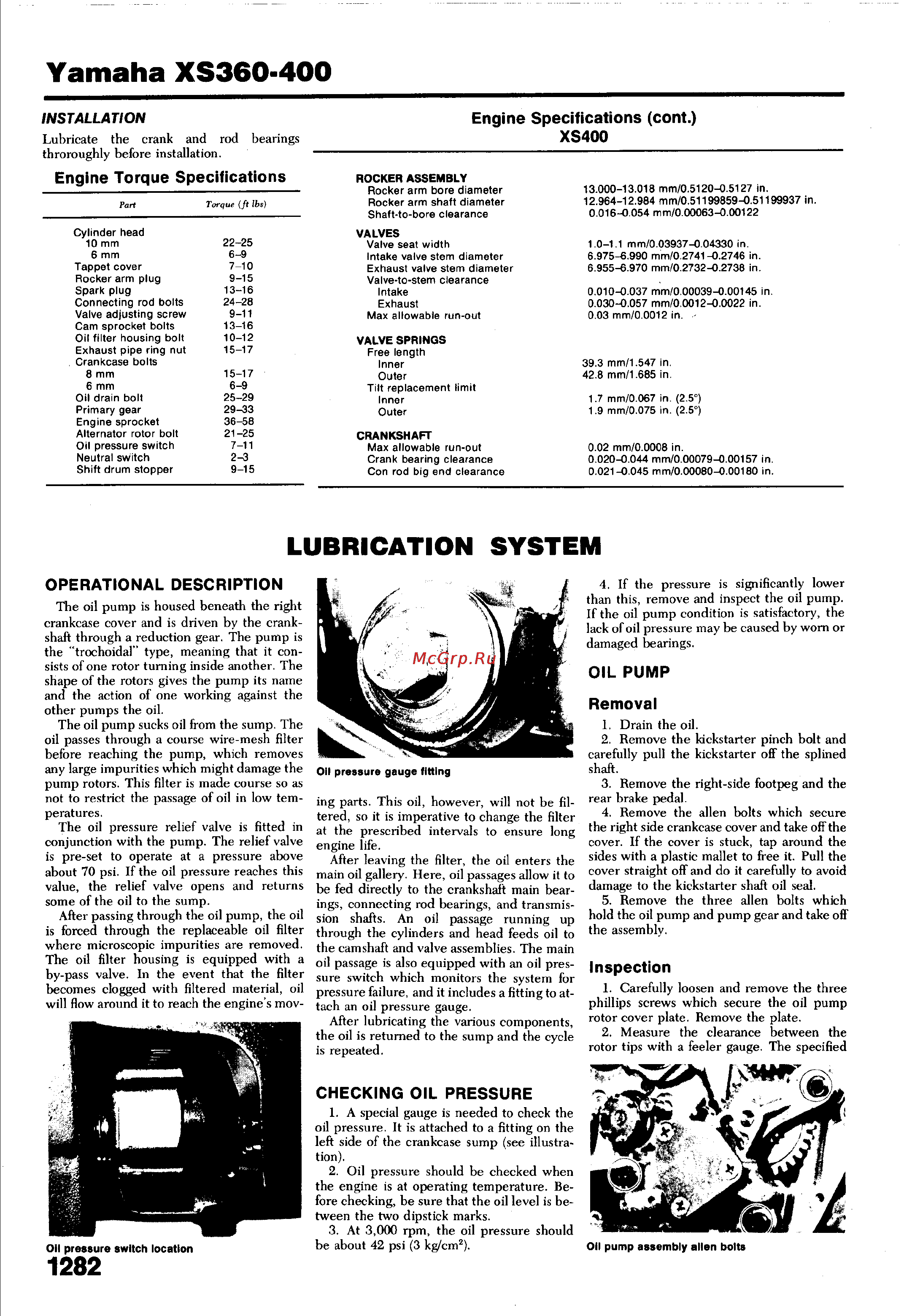

Yamaha XS360 400 INSTALLATION Engine Specifications cont XS400 rod bearings Lubricate the crank and throroughly betöre installation Engine Torque Specifications ROCKER ASSEMBLY Rocker arm shaft diameter Shaft to bore clearance Cylinder head 10 mm 6 mm Tappet cover Rocker arm plug Spark plug Connecting rod bolts Valve adjusting screw Cam sprocket bolts Oil filter housing bolt Exhaust pipe ring nut Crankcase bolts 8 mm 6 mm Oil drain bolt Primary gear Engine sprocket Alternator rotor bolt Oil pressure switch Neutral switch Shift drum stopper VALVES Valve seat width Intake valve stem diameter Exhaust valve stem diameter Valve to stem clearance Intake Exhaust Max allowable run out 22 25 6 9 7 10 9 15 13 16 24 28 9 11 13 16 10 12 15 17 VALVE SPRINGS Free length Inner Outer Tilt replacement limit Inner Outer 15 17 6 9 25 29 29 33 36 58 21 25 7 11 2 3 9 15 CRANKSHAFT Max allowable run out Crank bearing clearance Con rod big end clearance 13 000 13 018 mm 0 5120 0 5127 in 12 964 12 984 mm 0 51199859 0 51199937 in 0 016 0 054 mm 0 00063 0 00122 1 0 1 1 mm 0 03937 0 04330 in 6 975 6 990 mm 0 2741 0 2746 in 6 955 6 970 mm 0 2732 0 2738 in 0 010 0 037 mm 0 00039 0 00145 in 0 030 0 057 mm 0 0012 0 0022 in 0 03 mm 0 0012 in 39 3 mm 1 547 in 42 8 mm 1 685 in 1 7 mm 0 067 in 2 5 1 9 mm 0 075 in 2 5 0 02 mm 0 0008 in 0 020 0 044 mm 0 00079 0 00157 in 0 021 0 045 mm 0 00080 0 00180 in LUBRICATION SYSTEM 4 If the pressure is significantly lower than this remove and inspect the oil pump If the oil pump condition is satisfactory the lack of oil pressure may be caused by worn or damaged bearings OPERATIONAL DESCRIPTION The oil pump is housed beneath the right crankcase cover and is driven by the crank shaft through a reduction gear The pump is the trochoidal type meaning that it con sists of one rotor turning inside another The shape of the rotors gives the pump its name and the action of one working against the other pumps the oil The oil pump sucks oil from the sump The oil passes through a course wire mesh filter before reaching the pump which removes any large impurities which might damage the pump rotors This filter is made course so as not to restrict the passage of oil in low tem peratures The oil pressure relief valve is fitted in conjunction with the pump The relief valve is pre set to operate at a pressure above about 70 psi If the oil pressure reaches this value the relief valve opens and returns some of the oil to the sump After passing through the oil pump the oil is forced through the replaceable oil filter where microscopic impurities are removed The oil filter housing is equipped with a by pass valve In the event that the filter becomes clogged with filtered material oil will flow around it to reach the engine s mov OIL PUMP Removal 1 Drain the oil 2 Remove the kickstarter pinch bolt and carefully pull the kickstarter off the splined shaft Oil pressure gauge fitting 3 Remove the right side footpeg and the ing parts This oil however will not be fil rear brake pedal 4 Remove the alien bolts which secure tered so it is imperative to change the filter at the prescribed intervals to ensure long the right side crankcase cover and take off the cover If the cover is stuck tap around the engine life After leaving the filter the oil enters the sides with a plastic mallet to free it Pull the main oil gallery Here oil passages allow it to cover straight off and do it carefully to avoid be fed directly to the crankshaft main bear damage to the kickstarter shaft oil seal 5 Remove the three alien bolts which ings connecting rod bearings and transmis sion shafts An oil passage running up hold the oil pump and pump gear and take off through the cylinders and head feeds oil to the assembly the camshaft and valve assemblies The main oil passage is also equipped with an oil pres Inspection sure switch which monitors the system for 1 Carefully loosen and remove the three pressure failure and it includes a fitting to at phillips screws which secure the oil pump tach an oil pressure gauge After lubricating the various components rotor cover plate Remove the plate 2 Measure the clearance between the the oil is returned to the sump and the cycle rotor tips with a feeler gauge The specified is repeated CHECKING OIL PRESSURE Oll pressure switch location 1282 1 A special gauge is needed to check the oil pressure It is attached to a fitting on the left side of the crankcase sump see illustra tion 2 Oil pressure should be checked when the engine is at operating temperature Be fore checking be sure that the oil level is be tween the two dipstick marks 3 At 3 000 rpm the oil pressure should be about 42 psi 3 kg cm2 Oil pump assembly alien bolts
