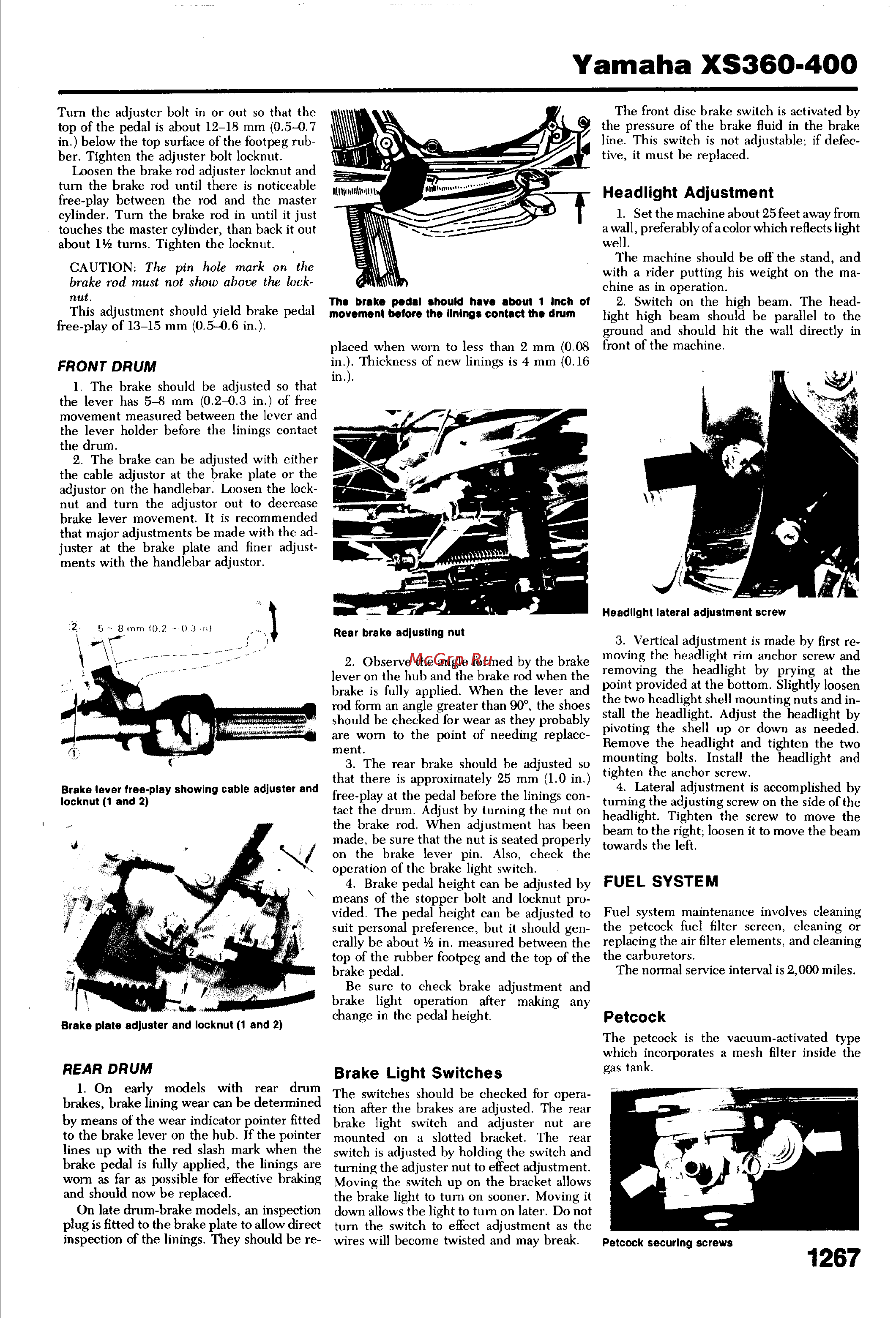

Yamaha XS360 400 The front disc brake switch is activated by the pressure of the brake fluid in the brake line This switch is not adjustable if defec tive it must be replaced Turn the adjuster bolt in or out so that the top of the pedal is about 12 18 mm 0 5 0 7 in below the top surface of the footpeg rub ber Tighten the adjuster bolt locknut Loosen the brake rod adjuster locknut and turn the brake rod until there is noticeable free play between the rod and the master cylinder Turn the brake rod in until it just touches the master cylinder than back it out about 1 turns Tighten the locknut CAUTION The pin hole mark on the brake rod must not show above the lock nut This adjustment should yield brake pedal free play of 13 15 mm 0 5 0 6 in FRONT DRUM 1 The brake should be adjusted so that the lever has 5 8 mm 0 2 0 3 in of free movement measured between the lever and the lever holder before the linings contact the drum 2 The brake can be adjusted with either the cable adjustor at the brake plate or the adjustor on the handlebar Loosen the lock nut and turn the adjustor out to decrease brake lever movement It is recommended that major adjustments be made with the ad juster at the brake plate and finer adjust ments with the handlebar adjustor Headlight Adjustment The brake pedal should have about 1 Inch of movement before the linings contact the drum placed when worn to less than 2 mm 0 08 in Thickness of new linings is 4 mm 0 16 in 1 Set the machine about 25 feet away from a wall preferably of a color which reflects light well The machine should be off the stand and with a rider putting his weight on the ma chine as in operation 2 Switch on the high beam The head light high beam should be parallel to the ground and should hit the wall directly in front of the machine Headlight lateral adjustment screw Rear brake adjusting nut Brake lever free play showing cable adjuster and locknut 1 and 2 Brake plate adjuster and locknut 1 and 2 2 Observe the angle formed by the brake lever on the hub and the brake rod when the brake is fully applied When the lever and rod form an angle greater than 90 the shoes should be checked for wear as they probably are worn to the point of needing replace ment 3 The rear brake should be adjusted so that there is approximately 25 mm 1 0 in free play at the pedal before the linings con tact the drum Adjust by turning the nut on the brake rod When adjustment has been made be sure that the nut is seated properly on the brake lever pin Also check the operation of the brake light switch 4 Brake pedal height can be adjusted by means of the stopper bolt and locknut pro vided The pedal height can be adjusted to suit personal preference but it should gen erally be about in measured between the top of the rubber footpeg and the top of the brake pedal Be sure to check brake adjustment and brake light operation after making any change in the pedal height 3 Vertical adjustment is made by first re moving the headlight rim anchor screw and removing the headlight by prying at the point provided at the bottom Slightly loosen the two headlight shell mounting nuts and in stall the headlight Adjust the headlight by pivoting the shell up or down as needed Remove the headlight and tighten the two mounting bolts Install the headlight and tighten the anchor screw 4 Lateral adjustment is accomplished by turning the adjusting screw on the side of the headlight Tighten the screw to move the beam to the right loosen it to move the beam towards the left FUEL SYSTEM Fuel system maintenance involves cleaning the petcock fuel filter screen cleaning or replacing the air filter elements and cleaning the carburetors The normal service interval is 2 000 miles Petcock The petcock is the vacuum activated type which incorporates a mesh filter inside the gas tank REAR DRUM Brake Light Switches 1 On early models with rear drum brakes brake lining wear can be determined by means of the wear indicator pointer fitted to the brake lever on the hub If the pointer lines up with the red slash mark when the brake pedal is folly applied the linings are worn as far as possible for effective braking and should now be replaced On late drum brake models an inspection plug is fitted to the brake plate to allow direct inspection of the linings They should be re The switches should be checked for opera tion after the brakes are adjusted The rear brake light switch and adjuster nut are mounted on a slotted bracket The rear switch is adjusted by holding the switch and turning the adjuster nut to effect adjustment Moving the switch up on the bracket allows the brake light to turn on sooner Moving it down allows the light to turn on later Do not turn the switch to effect adjustment as the wires will become twisted and may break Petcock securing screws 1267
