Yamaha XS360 (1976-1982) [25/34] Yamaha xs360 400
Содержание
- A sight glass in the crankcase is pro 1
- Below 15 c 59 f use sae 10w 30 service rating se or sf 1
- Checking oil level xs400gisg on 1
- General specifications ________________ 1
- In order to prevent possible confusion when ordering parts always refer to the engine and frame serial numbers 1
- Lubrication 1
- Maintenance 1
- Motor oil 1
- Note common maintenance procedures are explained in detail in general infor mation 1
- Recommended lubricants chart at the end of this section 1
- Serial number location 1
- Side of the steering lug while the engine number is located on a raised boss just be hind the right cylinder on the top of the crankcases 1
- Straight grades can also be used according 1
- The frame number is stamped on the right 1
- To ambient air temperatures as given in the 1
- Vided to enable the rider to check oil level at a glance when checking the motorcycle should be parked on the centerstand on a level surface 1
- When the air temperature is consistently 1
- When the average air temperature is above 5 c 41 f use yamalube 4 stroke oil or sae 20w 40 service rating se or sf 1
- Yamaha xs360 400 1
- Changing oil 2
- Filter screen 2
- Front forks 2
- Oil filter 2
- Other models 2
- Yamaha xs360 400 2
- Chassis lubrication 3
- Clutch 3
- Drive chain 3
- Service checks and adjustments 3
- Yamaha xs360 400 3
- Brakes front disc 4
- Rear disc 4
- Throttle cable 4
- Yamaha xs360 400 4
- Brake light switches 5
- Front drum 5
- Fuel system 5
- Headlight adjustment 5
- Petcock 5
- Rear drum 5
- Yamaha xs360 400 5
- Air filters 6
- Although major overhaul of the carbu 6
- Blow out the elements from the inside 6
- Carburetors 6
- Caution do not let gasoline spill on a hot engine 3 remove the four screws which secure 6
- Check the sealing washer and replace it 6
- Clean the filter screen in a solvent be 6
- Disconnect the fuel line from the petcock and the vacuum line from the manifold 6
- Each float bowl and carefully lower the bowls until they are clear of the float mechanism 6
- If it is damaged 6
- Install the petcock after the tank is 6
- Install them 6
- Intervals 6
- Maintenance data 6
- Make sure that the petcock is shut off 6
- Note after several such cleanings the elements should be replaced with new ones the service interval for replacement will depend upon the amount of dirt build up on the elements 5 refit the elements into their cases and 6
- Periodic maintenance 6
- Pilot jets these are fitted to the float bowl on 360 models and are on the carburetor bodies on 400 models blow the jets clear then rein stall clean any foreign matter out of the float bowls when installing position the bowls carefully to avoid damage to the floats tighten the screws gradually and evenly check for fuel leaks before operation 6
- Recommended lubricants 6
- Refitted check for leaks before operating the motorcycle 6
- Remove the case screws and separate 6
- Remove the gas tank drain off the fuel 3 unscrew the petcock securing nut or 6
- Remove the side covers 2 loosen the carburetor clamp remove 6
- Res position drain the fuel from the car buretor float bowls by removing the main jet cover bolt from the bottom of the float bowls 6
- Retors requires their removal as a unit the float bowls and jets can be cleaned with the units in place 6
- Set the petcock to the res position 6
- Sure to remove any foreign matter trapped in the screen as this will impede fuel flow if the screen cannot be cleaned or if it is punc tured or otherwise damaged it should be re placed 6
- The case halves removing the filter element 6
- The element case holder screw take off the securing band and remove the element case 6
- Two phillips screws depending upon the method of fastening and pull off the petcock 6
- Unscrew and remove the main and 6
- With compressed air 6
- Yamaha xs360 400 6
- Cam chain adjustment 7
- Compression test 7
- Contact breaker points 7
- Location 7
- Replacement 7
- Tune up 7
- Valve adjustment 7
- Yamaha xs360 400 7
- Dynamic timing 8
- Gapping 8
- Ignition timing breaker point models 8
- Lubrication 8
- Yamaha xs360 400 8
- Adjusting float level 9
- Carburetors 9
- Ignition timing xs400g sg h 9
- Static timing 9
- Synchronization 9
- Yamaha xs360 400 9
- Connect the vacuum gauges 5 start the engine and note the vacuum 10
- Ders must be within 5 cm hg 0 in hg adjust if necessary by turning the synchro nization screw in or out until the vacuum readings for the two cylinders is as identical as possible 10
- Feed line if necessary so that the synchro nization screw between the carburetors is ac cessible 10
- Idle speed and mixture 10
- Idle speed is set by means of the throt 10
- If the limiter caps are missing or if the 10
- Manifolds the vacuum gauge fitting for the right cylinder operates the fuel petcock dis connect the petcock line from the fitting and turn the petcock to the prime position for the duration of the procedure 10
- Note if the vacuum gauges read more than 5 cm hg 0 in hg at 1 200 rpm check the compression spark plugs igni tion timing and valve clearance 6 if vacuum gauges are not available a 10
- Pilot screws have been removed as during a carburetor overhaul pilot screw adjustment is accomplished by screwing the pilot screws in very carefully until lightly seated then backing them out 1 turns on 360 models and 1 turns on 400 models 10
- Readings at idle 1 200 rpm the two cylin 10
- Rough method of synchronizing the carbu retors may be carried out remove the car buretors as a unit from the motorcycle look into the engine side of the carburetors and note the relative positions of the edges of the butterflies in relation to the small by pass passages in the bottom of the bores both butterflies should be in the same position relative to these by pass holes 10
- Screw fitted to each carburetor the screws are fixed in position by means of idle limiter caps this is designed to reduce emissions therefore it is not generally necessary to ad just the pilot screws 10
- The idle mixture is controlled by a pilot 10
- The vacuum gauge fittings are on the 10
- Tle stop screw between the carburetors idle speed is 1 200 rpm and must be adjusted when the engine is at operating temperature 10
- Tune up specifications 10
- Yamaha xs360 400 10
- Cylinder head removal 11
- Engine and transmission 11
- Engine removal and installation 11
- Engine service 11
- Top end 11
- Yamaha xs360 400 11
- Cylinder and piston removal 12
- Cylinder head 12
- Inspection camshaft 12
- Rocker arms and shafts 12
- Valve assembly 12
- Yamaha xs360 400 12
- Cylinders and pistons 13
- Lapping 13
- Seat cutting 13
- Yamaha xs360 400 13
- Cylinder and piston installation 14
- Cylinder head installation 14
- Piston rings 14
- Yamaha xs360 400 14
- Clutch removal 15
- Crankcase cover components 15
- Yamaha xs360 400 15
- Gearshift mechanism removal 16
- Inspection 16
- Installation 16
- Kickstarter shaft removal 16
- Oil pump 16
- Yamaha xs360 400 16
- Alternator starter drive removal 17
- Case assembly 17
- Engine sprocket removal 17
- Inspection 17
- Installation 17
- Lower end and transmission 17
- Splitting the crankcases 17
- Transmission gear shift assembly removal 17
- Yamaha xs360 400 17
- Assembly 18
- Crankshaft removal 18
- Inspection 18
- Yamaha xs360 400 18
- 1 blue 19
- 2 black 19
- Before installing connecting rods on the 19
- Berance is towards the intake side of the engine be sure that the rods are installed so that the cap numbers align with the rod num bers 19
- Big end bearing no crankpin no 19
- Brown green 19
- Coat the con rod bolt threads with a 19
- Crankcase no journal no insert 19
- Crankpins thoroughly lubricate the bearings with motor oil install the rods so that the yamaha mark on both rods faces the left end of the crankshaft and the bearing protu 19
- Engine specifications 19
- Going to be replaced be sure that the weight codes stamped on the rod and cap match for both rods 19
- If one or both of the connecting rods is 19
- Insert 19
- Molybdenum disulphide lubricant and 19
- Replace big end bearing inserts with in 19
- Rod side play at the small end if the move ment exceeds 0 mm 0 19 in the big end bearing should be replaced 19
- Serts of the same color code if the color is no longer visible on the old insert select a re placement according to the following chart 19
- Torque them to 24 28 ft lbs 19
- With a dial gauge check connecting 19
- Yamaha xs360 400 19
- Checking oil pressure 20
- Engine specifications cont 20
- Engine torque specifications 20
- Inspection 20
- Installation 20
- Lubrication system 20
- Oil pump 20
- Operational description 20
- Removal 20
- Yamaha xs360 400 20
- Carburetors 21
- Fuel system 21
- Installation 21
- Lubrication system specifications 21
- Removal 21
- Yamaha xs360 400 21
- Disassembly 22
- Inspection 22
- Yamaha xs360 400 22
- Alternator output check 23
- Assembly 23
- Carburetor specifications 23
- Charging system 23
- Electrical system 23
- Field coiliarmature tests 23
- Fuel petcock 23
- Yamaha xs360 400 23
- Breaker point ignition 24
- Pick up coil removal and installation 24
- Rectifier 24
- Regulator 24
- Transistorized ignition 24
- Troubleshooting 24
- Yamaha xs360 400 24
- Brake light 25
- Electrical components 25
- Inspection 25
- Neutral indicator 25
- Starter motor service removal and installation 25
- Starter solenoid 25
- Starting system 25
- Taillight 25
- Testing 25
- Turn signals 25
- Yamaha xs360 400 25
- Oil pressure indicator 26
- Self cancelling turn signal system 26
- Wiring diagrams 26
- Yamaha xs360 400 26
- Yamaha xs360 400 27
- J xs400fonly 28
- Wiring diagrams 28
- Xs400 2e 28
- Xs400f 2f 28
- Yamaha xs360 400 28
- Chassis 29
- Wiring diagrams 29
- Yamaha xs360 400 29
- Bleeding 30
- Disc brake service 30
- Flushing 30
- Precautions 30
- Rear wheel assembly removal and installation 30
- Tubeless tires 30
- Wheel bearings 30
- Yamaha xs360 400 30
- Caliper 31
- Front disc brake pad replacement 31
- Master cylinder 31
- Yamaha xs360 400 31
- Disc service 32
- Dissassembly 32
- Front drum brake 32
- Front forks 32
- Inspection 32
- Rear disc brake 32
- Rear drum brake 32
- Removal 32
- Yamaha xs360 400 32
- Assembly 33
- Bearing adjustment 33
- Disassembly 33
- Inspection 33
- Installation 33
- Steering stem assembly 33
- Yamaha xs360 400 33
- Assembly 34
- Inspection 34
- Rear shocks 34
- Removal and installation 34
- Swing arm 34
- Yamaha xs360 400 34
Похожие устройства
- Tesy GCH/L 12044 30 B12 TSR Инструкция по эксплуатации
- Yamaha XJR1300 (P) (2002) Инструкция по эксплуатации
- Tesy GCV 3036 16D A04 TS2R Инструкция по эксплуатации
- Yamaha XJR1300 (L) (1999) Инструкция по эксплуатации
- Tesy GCV 6036 20D A04 TS2R Инструкция по эксплуатации
- Yamaha XJ900S (G) (1995) Инструкция по эксплуатации
- Tesy GCV 8036 24D A04 TS2R Инструкция по эксплуатации
- Yamaha XJ750 (1980-1984) Инструкция по эксплуатации
- Tesy GCV 5045 16D A04 TS2R Инструкция по эксплуатации
- Yamaha XJ650 (1980-1984) Инструкция по эксплуатации
- Tesy GCV 8045 24D A04 TS2R Инструкция по эксплуатации
- Yamaha WR450FR (2003) Инструкция по эксплуатации
- Tesy GCV 10045 24D A04 TS2R Инструкция по эксплуатации
- Yamaha WR250FR (2002) Инструкция по эксплуатации
- Tesy GCV 12045 24D A04 TS2R Инструкция по эксплуатации
- Yamaha VMX12HC (1995) Инструкция по эксплуатации
- Tesy GCV 15045 24D A04 TS2R Инструкция по эксплуатации
- Yamaha VMX12H (1995) Инструкция по эксплуатации
- Tesy GCH[L] 8045 20D A04 TS2R ANTICALC Инструкция по эксплуатации
- Yamaha TZR250 (1987) Инструкция по эксплуатации

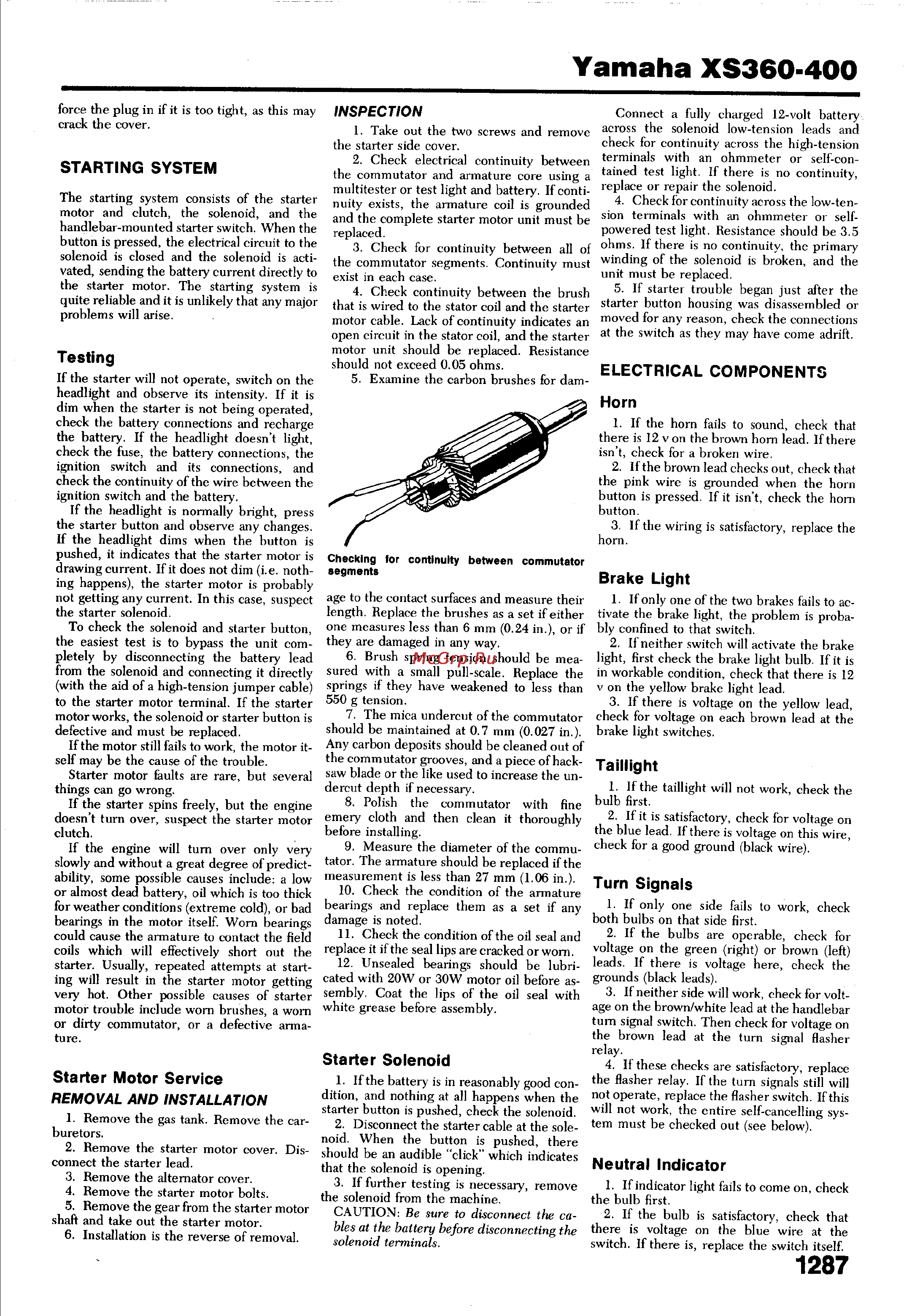

Yamaha XS360 400 force the plug in if it is too tight as this may crack the cover INSPECTION Connect a fully charged 12 volt battery 1 Take out the two screws and remove across the solenoid low tension leads and check for continuity across the high tension the starter side cover 2 Check electrical continuity between terminals with an ohmmeter or self con STARTING SYSTEM the commutator and armature core using a tained test light If there is no continuity multitester or test light and battery If conti replace or repair the solenoid The starting system consists of the starter nuity exists the armature coil is grounded 4 Check for continuity across the low ten motor and clutch the solenoid and the and the complete starter motor unit must be sion terminals with an ohmmeter or selfhandlebar mounted starter switch When the replaced powered test light Resistance should be 3 5 button is pressed the electrical circuit to the 3 Check for continuity between all of ohms If there is no continuity the primary solenoid is closed and the solenoid is acti the commutator segments Continuity must winding of the solenoid is broken and the vated sending the battery current directly to exist in each case unit must be replaced the starter motor The starting system is 5 If starter trouble began just after the 4 Check continuity between the brush quite reliable and it is unlikely that any major that is wired to the stator coil and the starter starter button housing was disassembled or problems will arise motor cable Lack of continuity indicates an moved for any reason check the connections open circuit in the stator coil and the starter at the switch as they may have come adrift motor unit should be replaced Resistance Testing should not exceed 0 05 ohms ELECTRICAL COMPONENTS If the starter will not operate switch on the 5 Examine the carbon brushes for damheadlight and observe its intensity If it is Horn dim when the starter is not being operated check the battery connections and recharge 1 If the horn fails to sound check that the battery If the headlight doesn t light there is 12 v on the brown horn lead If there check the fuse the battery connections the isn t check for a broken wire ignition switch and its connections and 2 If the brown lead checks out check that check the continuity of the wire between the the pink wire is grounded when the horn ignition switch and the battery button is pressed If it isn t check the horn button If the headlight is normally bright press the starter button and observe any changes 3 If the wiring is satisfactory replace the horn If the headlight dims when the button is pushed it indicates that the starter motor is Checking for continuity between commutator drawing current If it does not dim i e noth segments Brake Light ing happens the starter motor is probably not getting any current In this case suspect age to the contact surfaces and measure their 1 If only one of the two brakes fails to ac the starter solenoid length Replace the brushes as a set if either tivate the brake light the problem is proba To check the solenoid and starter button one measures less than 6 mm 0 24 in or if bly confined to that switch the easiest test is to bypass the unit com they are damaged in any way 2 If neither switch will activate the brake pletely by disconnecting the battery lead 6 Brush spring tension should be mea light first check the brake light bulb If it is from the solenoid and connecting it directly sured with a small pull scale Replace the in workable condition check that there is 12 with the aid of a high tension jumper cable springs if they have weakened to less than v on the yellow brake light lead to the starter motor terminal If the starter 550 g tension 3 If there is voltage on the yellow lead 7 The mica undercut of the commutator check for voltage on each brown lead at the motor works the solenoid or starter button is should be maintained at 0 7 mm 0 027 in brake light switches defective and must be replaced If the motor still fails to work the motor it Any carbon deposits should be cleaned out of the commutator grooves and a piece of hack self may be the cause of the trouble Taillight Starter motor faults are rare but several saw blade or the like used to increase the un dercut depth if necessary 1 If the taillight will not work check the things can go wrong 8 Polish the commutator with fine bulb first If the starter spins freely but the engine 2 If it is satisfactory check for voltage on doesn t turn over suspect the starter motor emery cloth and then clean it thoroughly before installing the blue lead If there is voltage on this wire clutch 9 Measure the diameter of the commu check for a good ground black wire If the engine will tum over only very slowly and without a great degree of predict tator The armature should be replaced if the ability some possible causes include a low measurement is less than 27 mm 1 06 in Turn Signals 10 Check the condition of the armature or almost dead battery oil which is too thick 1 If only one side fails to work check for weather conditions extreme cold or bad bearings and replace them as a set if any both bulbs on that side first bearings in the motor itself Wom bearings damage is noted 2 If the bulbs are operable check for 11 Check the condition of the oil seal and could cause the armature to contact the field voltage on the green right or brown left coils which will effectively short out the replace it if the seal lips are cracked or wom 12 Unsealed bearings should be lubri leads If there is voltage here check the starter Usually repeated attempts at start ing will result in the starter motor getting cated with 20W or 30W motor oil before as grounds black leads 3 If neither side will work check for volt very hot Other possible causes of starter sembly Coat the lips of the oil seal with age on the brown white lead at the handlebar motor trouble include wom brushes a wom white grease before assembly tum signal switch Then check for voltage on or dirty commutator or a defective arma the brown lead at the turn signal flasher ture relay Starter Solenoid 4 If these checks are satisfactory replace Starter Motor Service 1 If the battery is in reasonably good con the flasher relay If the tum signals still will dition and nothing at all happens when the not operate replace the flasher switch If this REMOVAL AND INSTALLATION will not work the entire self cancelling sys starter button is pushed check the solenoid 1 Remove the gas tank Remove the car 2 Disconnect the starter cable at the sole tem must be checked out see below buretors noid When the button is pushed there 2 Remove the starter motor cover Dis should be an audible click which indicates connect the starter lead Neutral Indicator that the solenoid is opening 3 Remove the alternator cover 3 If further testing is necessary remove 1 If indicator light fails to come on check 4 Remove the starter motor bolts the solenoid from the machine the bulb first 5 Remove the gear from the starter motor CAUTION Be sure to disconnect the ca 2 If the bulb is satisfactory check that shaft and take out the starter motor bles at the battery before disconnecting the there is voltage on the blue wire at the 6 Installation is the reverse of removal solenoid terminals switch If there is replace the switch itself 1287
