5. Specifications
Item Details
Broadcasting system SCC-B5300(G)/B5301(G)/B5303(G)
/B5305(G) : NTSC STANDARD
SCC-B5300(G)P/B5301(G)P
/B5303(G)P/ B5305(G)P
: PAL STANDARD
Pick-up device 1/3" SUPER HAD IT CCD
Number of effective SCC-B5300(G) : 510(H) x 492(V)
pixel SCC-B5301(G)/B5303(G)/B5305(G)
: 768(H) x 494(V)
SCC-B5300(G)P : 500(H) x 582(V)
SCC-B5301(G)P /B5303(G)P /B5305(G)P
: 752(H) x 582(V)
Synchronization Internal/Linelock
(Auto control for using DC/AC power)
Resolution SCC-B5300(G)(P): 330 TV Lines (H)
350 TV Lines (V)
SCC-B5301(G)(P)/B5303(G)(P)/B5305(G)(P)
:
480 TV Lines (H)
350 TV Lines (V)
Video output VBS 1.0Vp-p(75 , composite)
S/N ratio 50dB
Min. illumination SCC-B5300(G)(P) : 0.3Lux
SCC-B5301(G)
(P)
/B5303(G)
(P)
/B5305(G)
(P)
:
0.5Lux
Electronic Shatter Speed
Max 1/100k sec
Lens (focal length)
SCC-B5300(G)(P)/B5301(G)(P) : f=3.8mm
SCC-B5303(G)
(P) : f=2.9mm
SCC-B5305(G)
(P) : f=8mm
Gamma correction 0.45
Body Color SCC-B530X(P) :
Black
SCC-B530XG(P) :
Grey
In/out connector
Signal output: BNC, Power input : 2P-Jack
Operating temperature -10~+50°C
Power source
DC 12V 10%,-5%, AC 24V 10%
(NTSC : 60Hz 0.3Hz, 50Hz 0.3Hz)
Power consumption 3 W
Size 100(ø) x 67(H)mm
Weight 180g
8

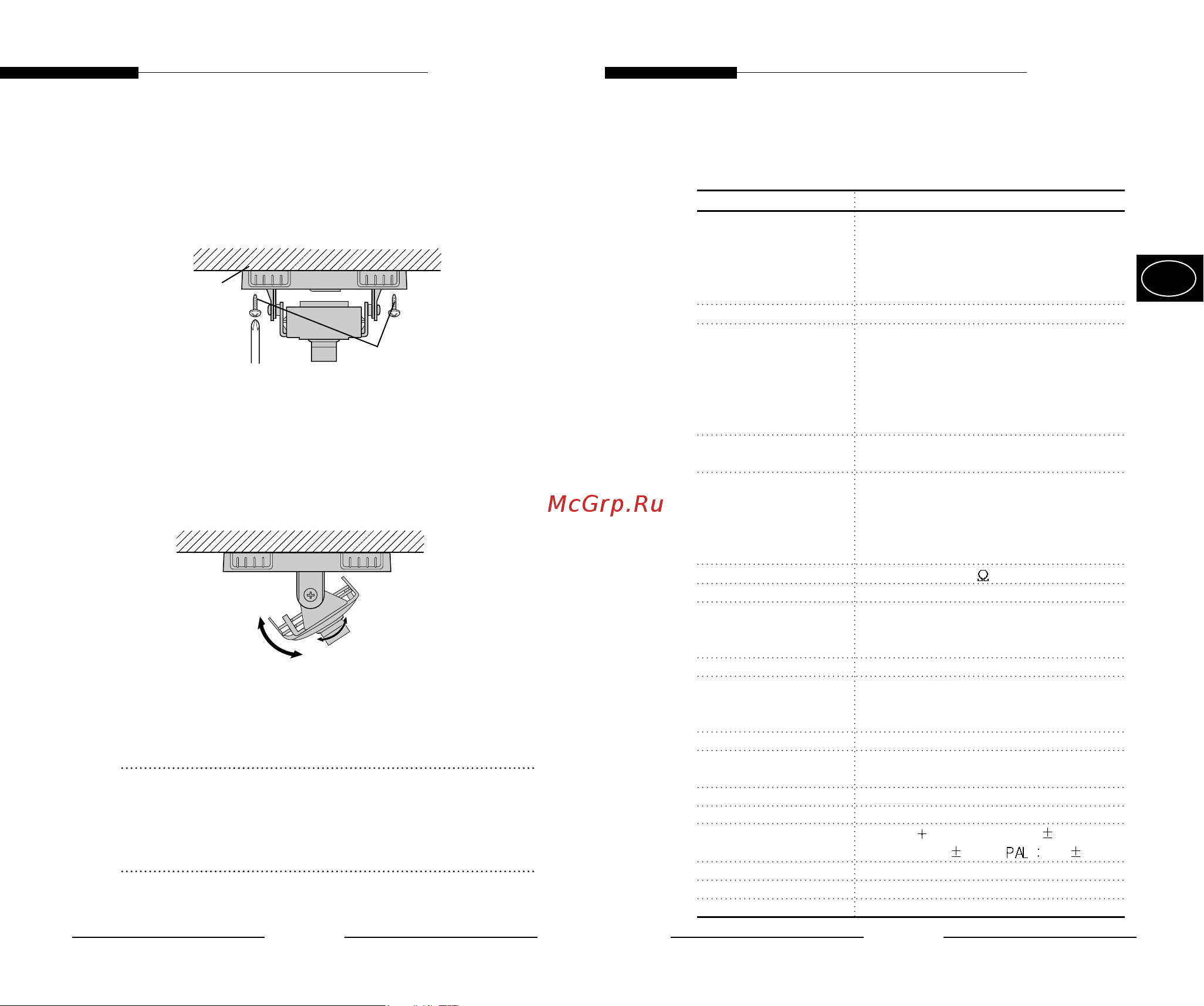

4. Attach the camera on the target location with
the screw driver using the provided tab screw.
5. Set the proper image by moving the camera
body (PCB board) inside the dome camera
upward or downward and set the focus by
turning the lens to the left or right direction.
6. Assemble the dome cover by turning it
clockwise.
NOTE
Please make sure that any foreign matter gathers
on the lens cover when assembling or
disassembling the dome cover.
Wall or ceiling
Main body
Tab screw
Screw Driver
Wall or ceiling
Adjust the
image upward
or downward
Adjust focus by
turning left or right
