7
User Guide
E

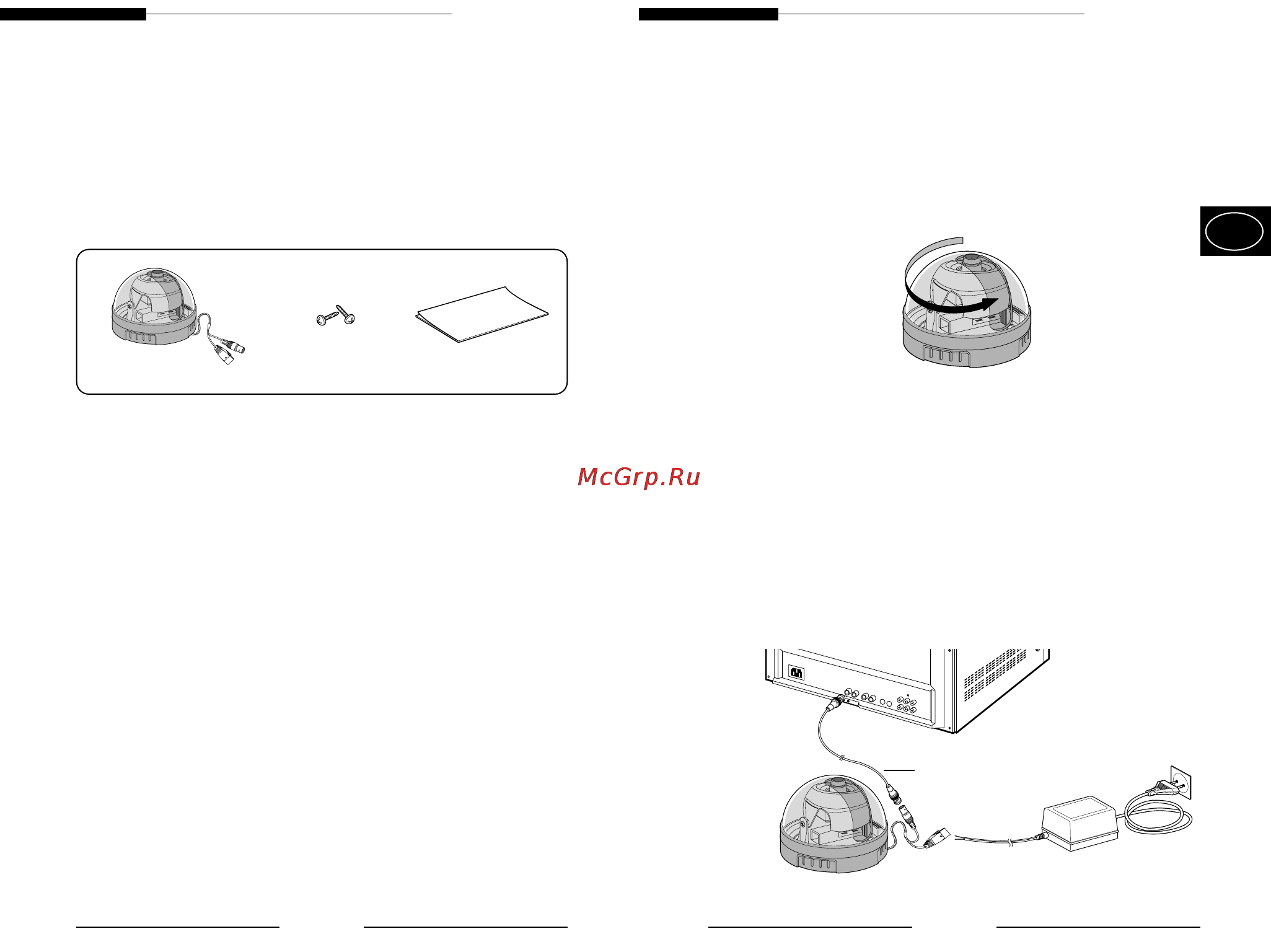

■ Cable connection
1. Hold the camera body with one hand and turn
the dome cover counterclockwise with other
hand in order to disassemble it.
2.Connect the BNC cable to the video cable
connector attached on the dome camera, and
connect the remained BNC cable to the video
input terminal of the monitor.
3.Connect the power adaptor at this time.
Connect the DC 12V/AC 24V power cable of
the connector to the power cable connection
that is attached on the dome camera.
Monitor
BNC Cable
6
User Guide
4. Installation
■ Check what is inside the package
• Check to see if the following parts are included in the
purchased package.
■ Notes on installation and usage
1. Users should not disassemble the camera from the
front direction.
2. Always handle the camera with care. Please do not
apply a shock or vibration as much as possible and
take cautions not to cause damage or make a
scratch on the camera due to careless storage.
3. Please do not install the camera with the rainy place
or highly humid areas. And do not operate the
camera in the wet place.
4. Do not clean the camera body with the strong
abrasives or soaps. When the camera becomes
dirty, clean it with the dry rugs. Especially, make
sure to use the dedicated rugs for lens to clean the
dome cover.
5. Please keep the camera at the cool area that is not
exposed to the direct sunlight. If you do, it can
cause bad effects on the product.
Camera
User's guide
tab screw
