1
Copy Tray
Extender
: Slide this out when making copies on large-size paper.
2
Copy Tray : Holds copies fed out of the copier.
3
Front Door : Open for the following purposes:
• Replacing the Toner Bottle.
➭
p. 63
• Clearing a paper misfeed.
➭
p. 68
• Cleaning the Corona Units.
➭
p. 8
4
1st Drawer : Holds up to 250 sheets of paper.
➭
p. 6
The Edge Guide and Trailing Edge Stop are movable, allowing you to
load paper of different sizes.
5
2nd Drawer : Holds up to 250 sheets of paper.
➭
p. 6
6
Control Panel : Use to start a copy cycle or make various copy-job settings.
➭
p. 1
7
Original Cover : Holds the original placed on the Original Glass in position.
8
Power Switch : Use to turn ON and OFF the copier.
➭
p. 1
9
Multi Bypass
Tray
: Holds up to 50 sheets of standard paper which is not loaded in any of
the Drawers.
➭
p. 28
10
Multi Bypass Tray
Extender
: Slide this out when using large-size copy paper.
➭
p. 2
11
Right Door : Open to clear a paper misfeed.
➭
pp. 72, 73
12
Total Counter : Shows the total number of copies made so far.

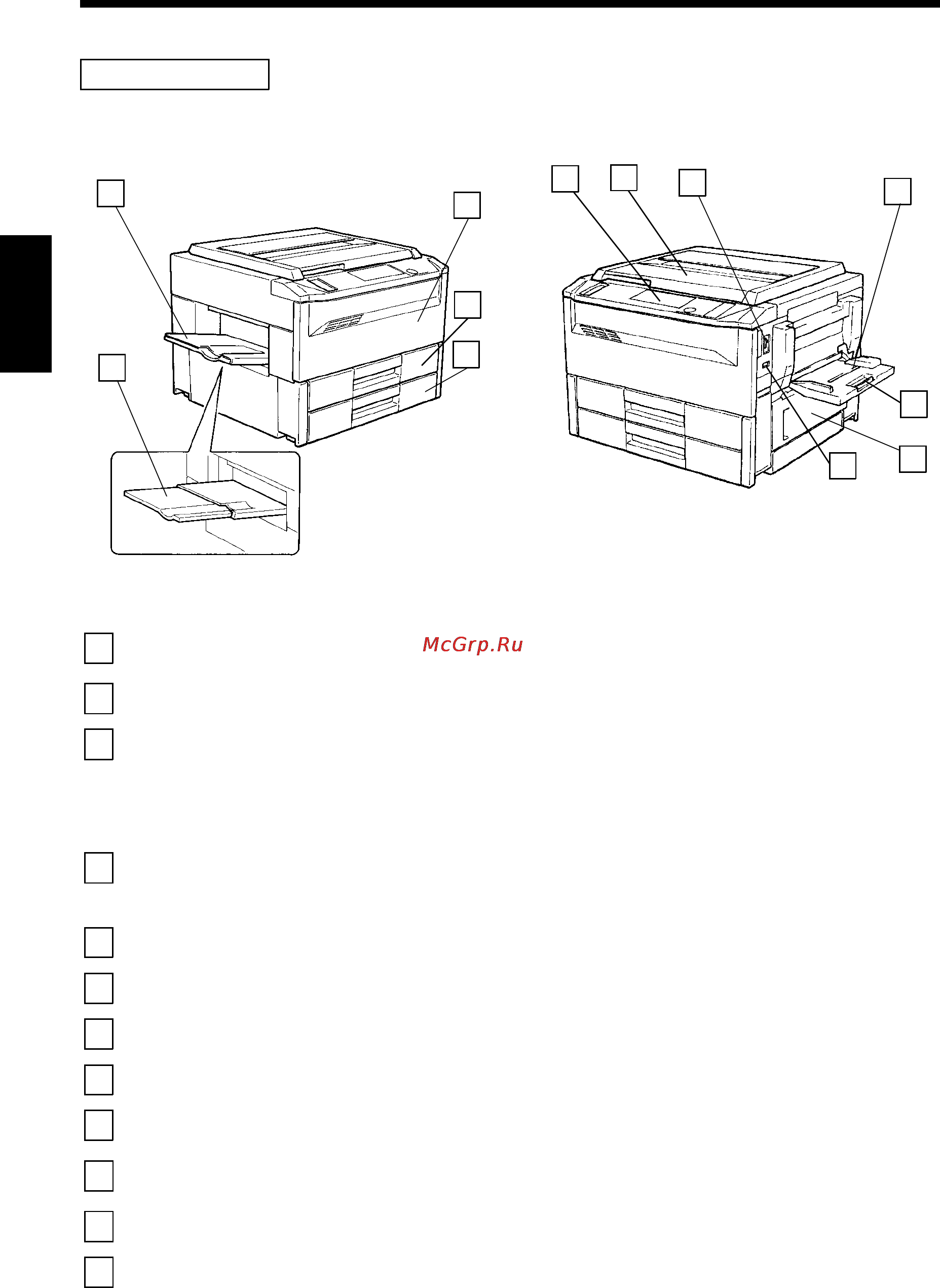

Outside the Copier
2. Copier Parts and Accessories
1139O1010A
1
2
3
4
5
1139O2030A
6
7
8
9
11
12
10
Chapter 2
Getting to Know Your Copier
8
