13
Mixed Original Detection Key
Press when making copies using the
Automatic / Duplexing Document Feede
in which originals of assorted sizes are
loaded together.
➭
p. 25
14
Orig. Copy Key
Press to select the type of copying job
you wish to make.
➭
p. 36
15
Manual Staple Key
Press to staple copy sets or stacks already
made.
➭
p. 4
16
Finishing Key
Press to select the finishing type you
want.
➭
p. 42
17
Auto Size Key
Press as necessary to select the Auto Size
Mode.
➭
p. 3
18
File Margin Key
Press to set the copier into the File
Margin Mode.
➭
p. 46
19
Cover Key
Press to set the copier into the Cove
Mode.
➭
p. 4
▼
20
Job Memory Select Key
Press to call up a copy job program
previously stored in the program memory.
➭
p. 1
21
Job Memory Input Key
Press to store a copy job program in the
program memory.
➭
p. 1
22
Drum Dehumidify Key
Press to remove condensation formed on
the surface of the PC Drum.
➭
p. 51
23
Auxiliary Toner Replenishing Key
Press when the image on the copy
becomes too light.
➭
p. 5
24
Meter Count Key
Press to check for each of the current
counts of different electronic counters of
the copier.
➭
p. 50
A3
A4
A4
B4
FLS.
Inch
Auto
S
hoto
Darker
0.5~2.0
Auto
A4
Full Size
A3
Full Size Paper
123
456
789
0C
B4 A3
B4 A4
A3 A4
A5
1151O041DA
uto
1151O041DA
7 8 10 9 6 5
4 3
2 1
Chapter 2
Getting to Know Your Copier

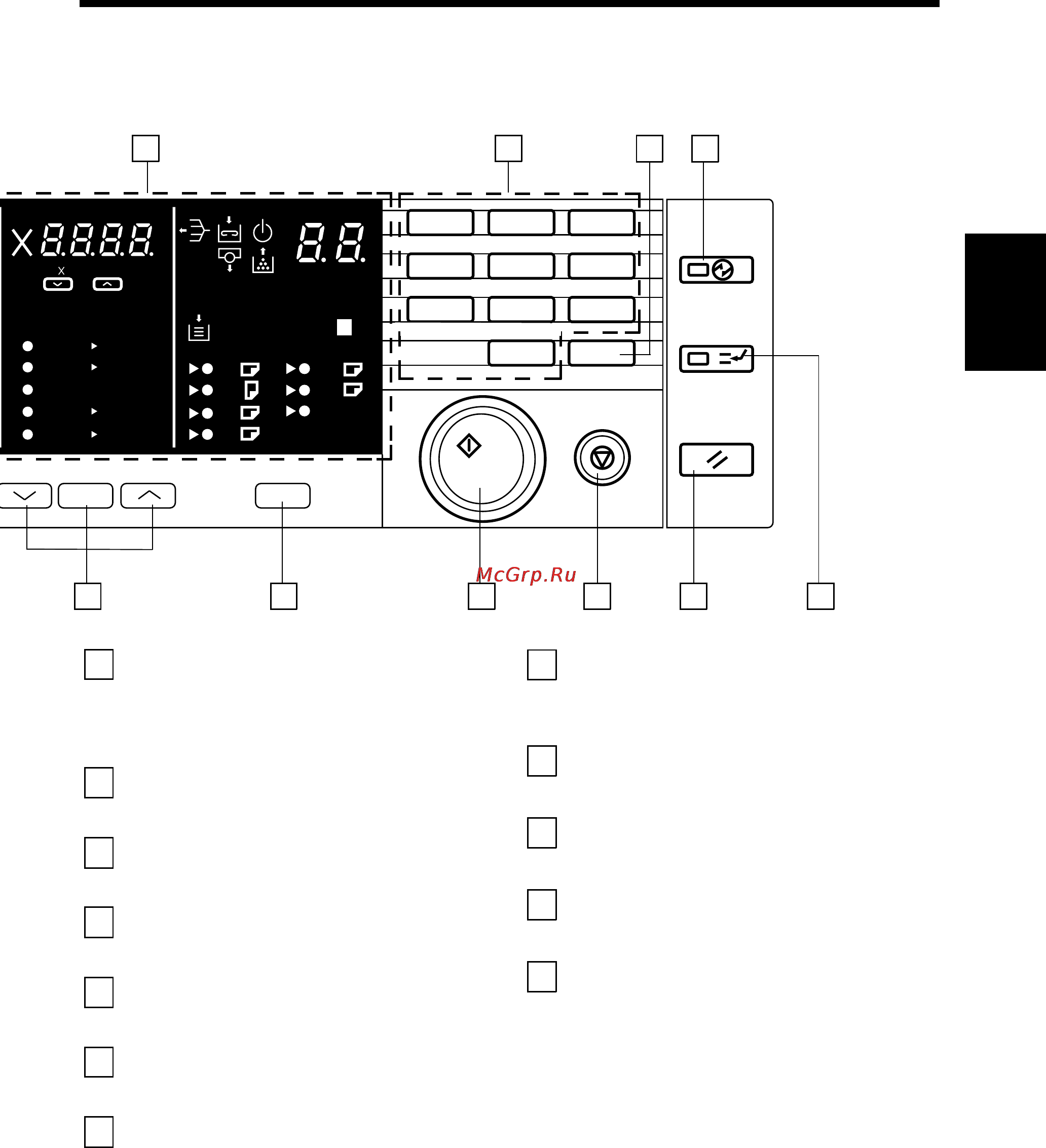

3. Control Panel Keys and Indicators
