Konica Minolta EP2051 [43/101] Making copies
![Konica Minolta EP2051 [43/101] Making copies](/views2/1122112/page43/bg2b.png)
▲
1139O0300A
Original
Copy
2-sided 2-sided
•

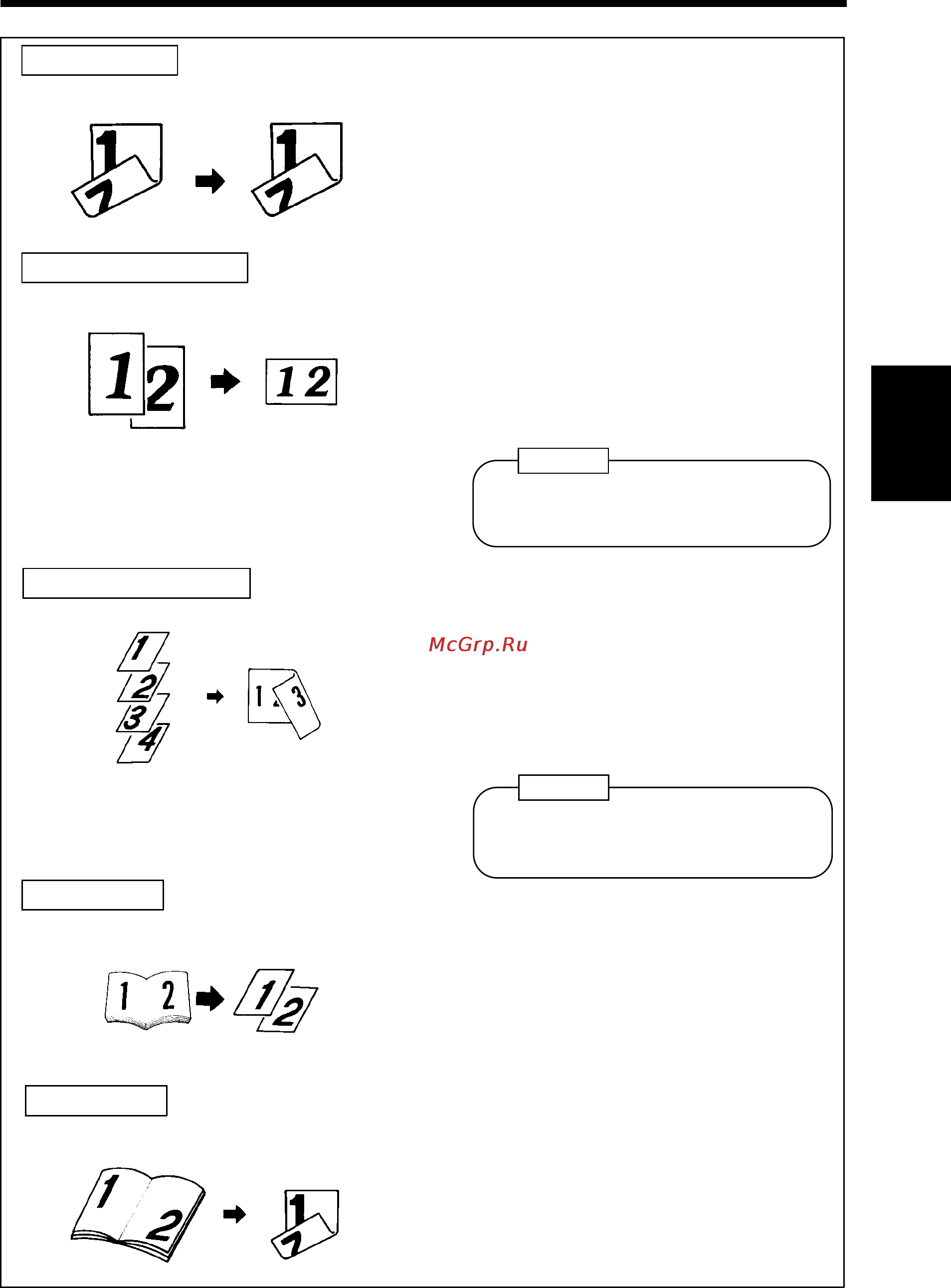

Select this mode to make 2-sided copies from
2-sided originals.
(Only when the Duplexing Document Feeder
and Duplex Unit are mounted.
▲
The size of the original should be A4
crosswise for 2-in-1.
NOTE
The size of the original should be A4
crosswise for 2-in-1.
NOTE
1139O0320A
Originals
Copy
1-sided 2-sided [2-in-1]
•
Select this mode to make a 2-sided copy,
through reduction, from four 1-sided
originals. Each pair of originals will be placed
side-by-side on either side of the copy.
(Only when the Automatic/Duplexing
Document Feeder is mounted.)
*
You need 1/4 as many sheets of copy paper
as required otherwise.
▲
1139O1990A
Original
Copies
Book 1-sided
•
Select this mode to make a 1-sided copy o
each page of an open book.
▲
1139O0330A
Original Copy
Book 2-sided
•
Select this mode to make a 2-sided copy o
an open book. Each page of the open book
will be copied onto one side of the copy.
(Only when the Duplex Unit is mounted.)
▲
1140O273
Originals
Copy
1-sided 1-sided [2-in-1
•
Select this mode to make a 1-sided copy,
through reduction, from two 1-sided originals
side-by-side.
(Only when the Automatic/Duplexing
Document Feeder is mounted.
*
You need half as many sheets of copy
paper as required otherwise.
▲
Chapter 3
Making Copies
7. Original Copy Type
37
