Konica Minolta EP2051 [41/101] Making copies

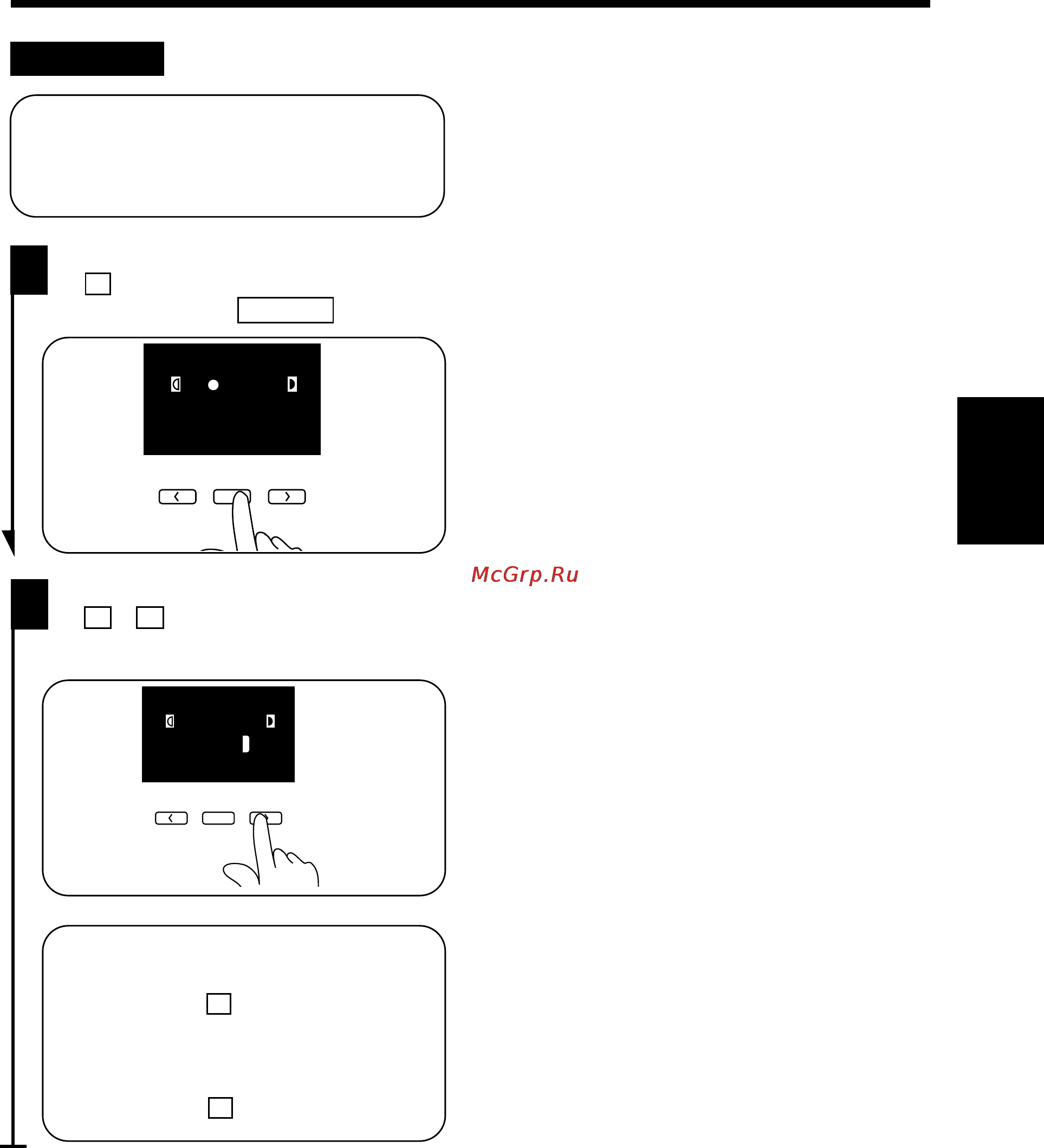

Photo Mode

6. Image Density

The copier can make a faithful reproduction

of an original having a halftone image such

as photos. The image density of the photo

may be varied in nine steps.

Press the Auto Exposure Mode Key

A as necessary to light up the Photo

Mode Indicator ❍

Photo .


Lighter Darker

Auto / Photo

1151O080CA

Press the Exposure Control Key

< or > to set the desired Photo Mode

level.

Lighter Darker

Auto / Photo

1151O081CA

To make the image darker:

Press or hold down the Exposure

Control Key > .

To make the image lighter:

Press or hold down the Exposure

Control Key < .

Chapter 3

Making Copies
