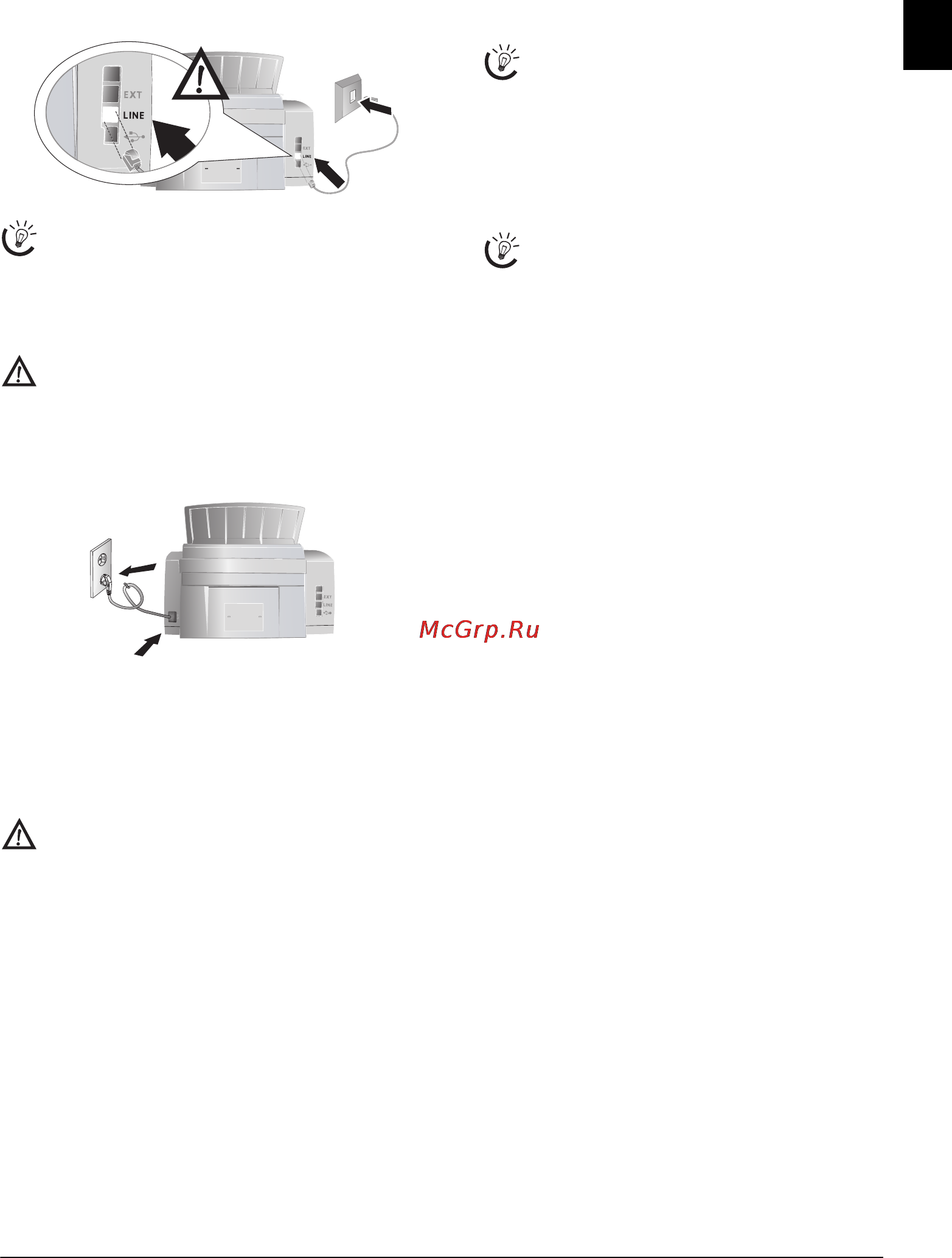

Installation Guide 5
EN
Connecting the Telephone Cable
Connecting the Te lephone Cable
Connect the telephone cord to the device by inserting it in
the socket designated with LINE (RJ-11-Connector). In-
sert the telephone plug into your telephone connection
socket.
Telefonkabel anschließen
PABX Systems 1
Connecting the Mains Cable
Mains Voltage a t Setup Location
Connecting the Mains Cable
Insert the mains cable into the connection located on the
rear side of the device. Connect the mains cable to the elec-
trical socket.
Netzkabel anschließen
Initial Installation
Initial Installat ion
After you connect your device to the mains, the initial in-
stallation commences.
Selecting the Country
Setting the Cou ntry Correctly
1 Press OK.
2 Use [ to select the country in which you are operat-
ing the device.
3 Confirm twice with OK.
Entering Number
Header
Your name and number are added together with date, time
and page number at the top edge of each fax transmission
(= header).
1 Enter your number.
2 Confirm with OK.
Entering Name
1 Enter the name using the keys (A—Z).
2 Confirm with OK.
Entering the Date and Time
1 Enter the date (two digits for each field), for example
31¦05¦25 for May 31th, 2025.
2 Enter the time, e.g. 14 00 for 2 pm.
3 Confirm with OK.
If you connect your device as extension to a tele-
phone system, you must set it for working as an ex-
tension (also see Chapter "Telephone connections
and additional devices, page 28).
Check whether the mains voltage of your device (in-
dicated on the type label) matches the mains voltage
available at the setup location.
Always set the country in which you are operating
the machine. Otherwise, your machine is not adapt-
ed to the telephone network. If your country is not
included in the list, you must select a different setting
and use the correct telephone cable for the country.
Consult your retailer.
To insert special characters and symbols, press
;ü. Select with [. Confirm with OK.
You can move the cursor using [. Use C to de-
lete individual characters.
Enter capital letters by pressing and holding ú
button. You can enter special characters using ½.
To insert special characters and symbols, press
;ü. Press ûü to insert language specific special
characters. Select with [. Confirm with OK.
You can move the cursor using [. Use C to de-
lete individual characters.
