MEASUREMENT FOUNDATION

DigiTeo-2/5/10/20

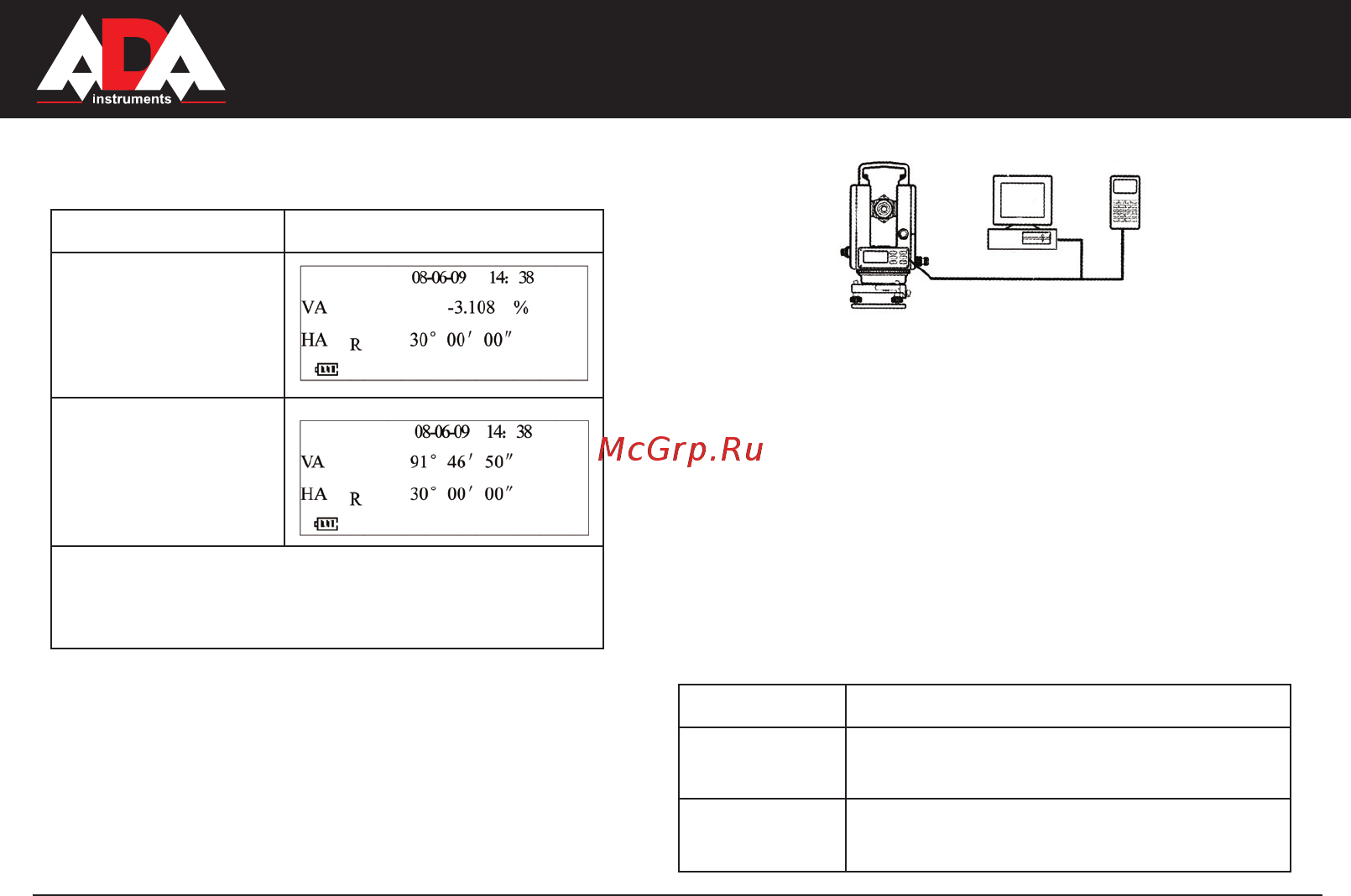

5. Measuring a percent of grade (slope measurement)

Conrm in the angle mode

Operating Display

Press [V%], the dis-

play of vertical angle

changes to percent

grade.

Press [V%]. Percent

grade changes to angle

display.

Every time press V% , the displayed mode will change

alternately. When measured angle is exceeding ±100% to

horizontal position,“EEEEE.EEE”displays.

Output the data and serial communication (DigiTeo-2;5)

This instrument can record the data, you can record the angle

data and the distance data in the memory (500 data) or you can

output the data through COM. The data will include the time,

you should set it before you record or output it. (please see

“function setting ”)

1. RS-232 interface

DigiTeo-2 has the RS-232 interface joined. The instrument with the

computer or the PDA through the cable. It can transport the data of

the measure to the computer or the data collection equipment. It also

can transport the computer data to the DigiTeo-2. Remember the in-

terface is under the vertical knob.

2. Record the data

DigiTeo-2 in the different measuring mode, press [SFT], press [V%];

you can output the data from the instrument to the computer or the

PDA (select the cluster correspond), or you can record the data in the

memory of the instrument (select the memory of the instrument).

Mode Output (record)

Angle mode VA, HA

or HA

(vertical angle, horizontal

angle)

Distance mode VA, HA

or SD (vertical angle, horizontal

angle, slope distance)
