MEASUREMENT FOUNDATION

DigiTeo-2/5/10/20

Setting the vertical collimation error and the telescope axis error and

the compensator error

In this mode, you can observe : the plate on the right and on the left and you can

get the error. Use this error you can adjust the telescope axis when you observe in a

same position of the horizontal plate. You can set the vertical plate error, and avoid

the error in measuring.

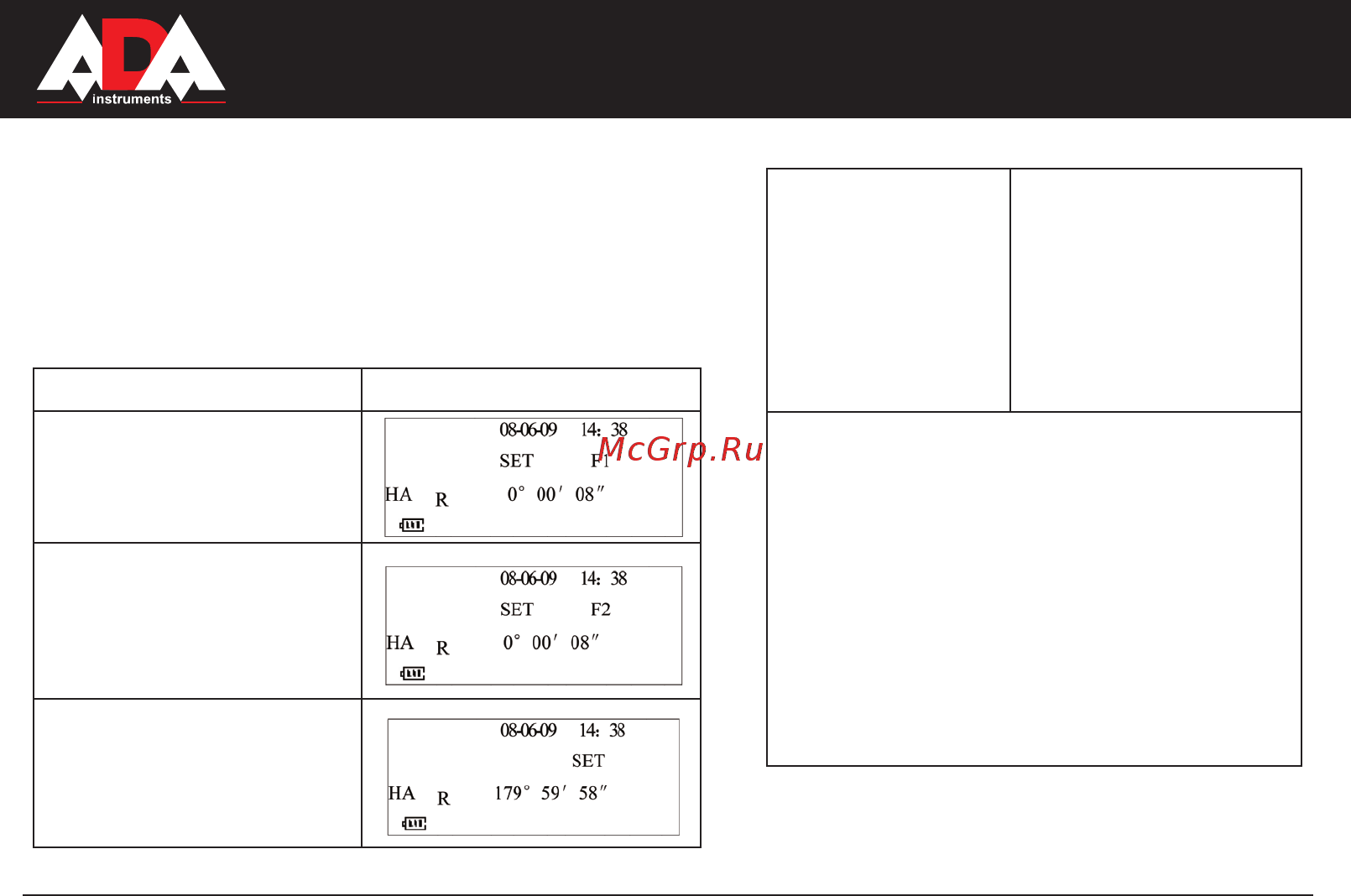

Operating Display

Press [R/L] and power, it will dis-

play “SETUP” and “SET 0”. Ro-

tate the telescope, the rst line will

display “SET F1” and will glint.

Level the instrument and make

the plate at left, collimate

the target at innitude, press

[OSET], the rst line will glint

and display “SET F2”

Make the plate at right and then

collimate the same target, press

[OSET], the rst line will glint

and display “SET”.

Press [OSET], the in-

strument perform the

new data of the vertical

error, the telescope axis

error and the compensa-

tor 0 error, and return to

the angle mode.

● If you want to exit at any time , you can press [SFT].

● DigiTeo have no the function of setting the telescope

axis error and the compensator 0 error.

● After you change the “minimum unit”, “compensator

function” mode, you should repeat the above steps.

● After you adjustment it, you should check the instru-

ment OK. Collimate the same target when the plate

at left and at right , the vertical angle summation is

360°±″20″. The difference of the vertical angle should

less than 20″. If there display the E03, you should ad-

just it again or follow “collimation of the telescope

axis”.
