2. Correction function (DigiTeo-2; 5)

DigiTeo-2 has a vertical axis incline compen-

sate. It can self-motion compensate the incline

angle. When the incline sensor is switch on,

the instrument can display the vertical axis

incline angle. We can adjust the instrument

level exactly by hand through the data. When

it incline over the compensate arrange, the

instrument display “TILT”. We must level the

instrument.

Note:

● In gale day or the quiver surrounding, the angle display is not stabili-

zation. You should close the compensate before you measure it.

● Set or close the compensate function, please read the “setup”.

3. Illumination and timing close

DigiTeo have a display and a illumination setting on the reticle. When

you press [SFT] over 2 seconds, the display and the illumination setting

will be open or closed.

If you don’t operate the instrument for 20 minutes or 30 minutes, the

power will be closed. About this function, you can reference the setup.

The other function

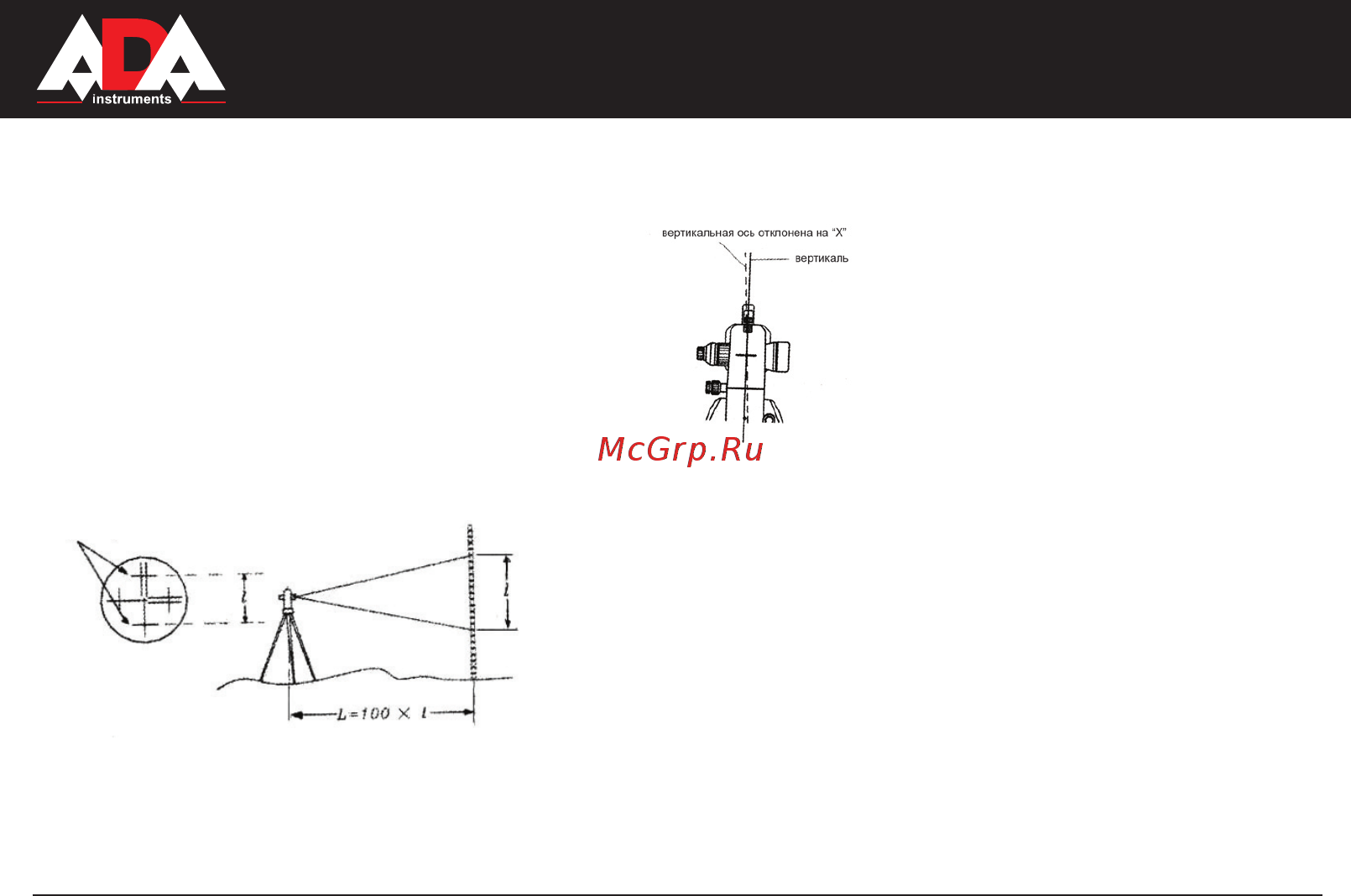

1. Measuring distance stadia hairs

So scale station pole is needed, for example horizon-

tal measuring staff and apparent distance staff. By

viewing through the telescope, the length between

upper and under stadia hairs which multiplies 100 is

the distance from instrument center to station pole.

(The length refers to the reading from station pole

between two stadia hairs).

a. First x the station pole at the measuring point.

b. Level instrument. By viewing through the telescope,

make sure the reading “ ” between two stadia lines.

c. The distance from instrument plumb bob center to

station staff “L” is 100 times of “l”: L = 100Xl

stadia hairs
