MEASUREMENT FOUNDATION

DigiTeo-2/5/10/20

Tribrach

It is convenient to detach and attach instrument by

loosening or tightening the locking lever.

Detachment:

a. Turn locking lever 180° in counter clock-wise

direction.

b. Lift the instrument up with one hand carrying

handle and another hand holding the tribrach.

Attachment:

a. Match the instrument base with the correct groove

before putting the instrument on the board.

b. Tighten the locking lever

Error display

E01 Vertical angle 0 position is out of range or set with

incorrect procedure.

E02 Tilt angle compensator 0 position is out of range or

set with incorrect procedure.

E03 During measuring of the collimation error, the value

measured is out of range.

E04 There’s abnormality in internal memory system.

E05 Reserved for adjustment in factory.

E06 There’s abnormality in angle measuring system.

E07 The level collimation or the telescope revolves too

fast (over 4 r/s).

E08 There’s a error detected in angle measuring system.

The instrument should be re-powered to eliminate

this error.

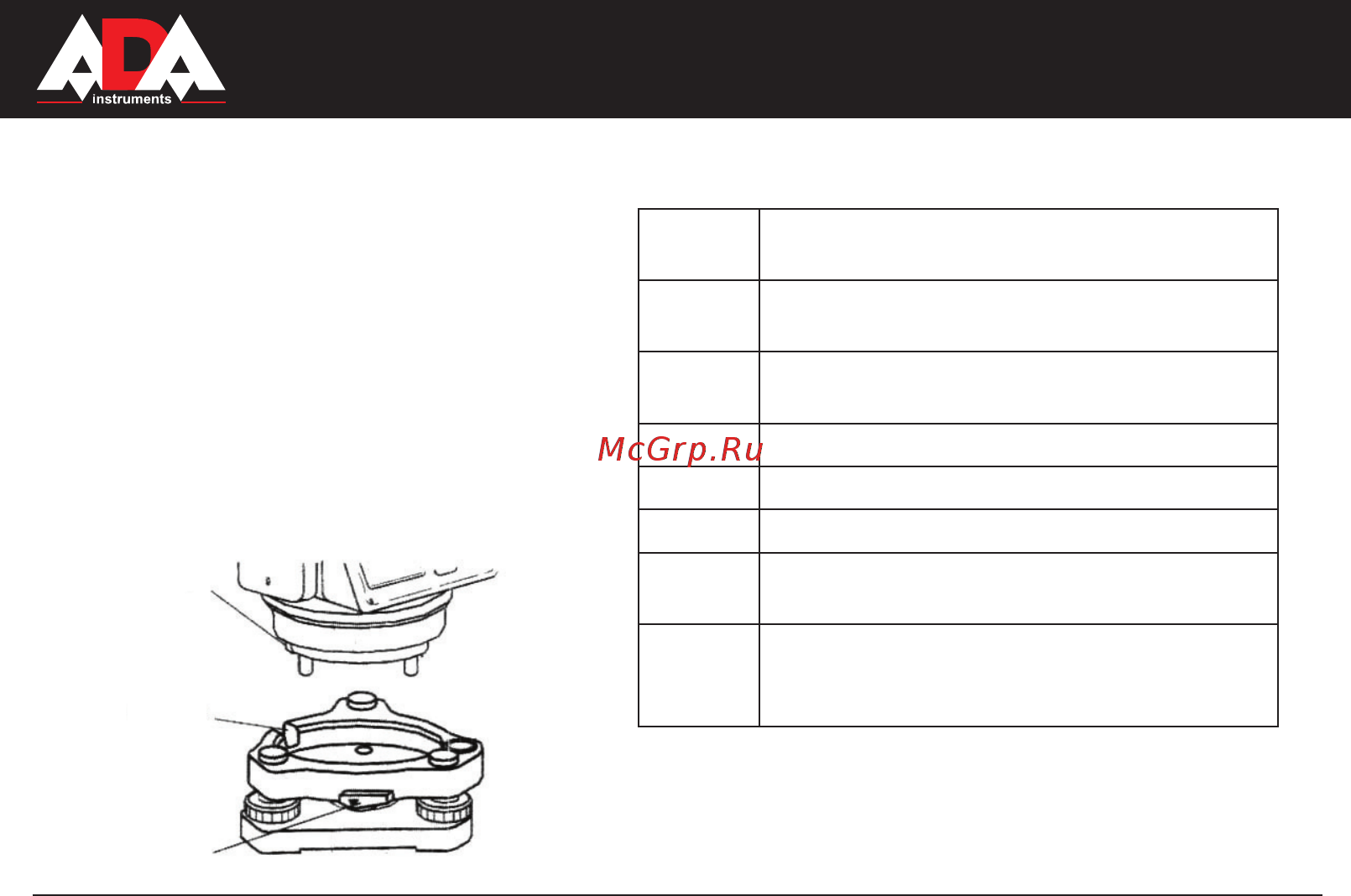

instrument base

groove

locking lever
