MEASUREMENT FOUNDATION

DigiTeo-2/5/10/20

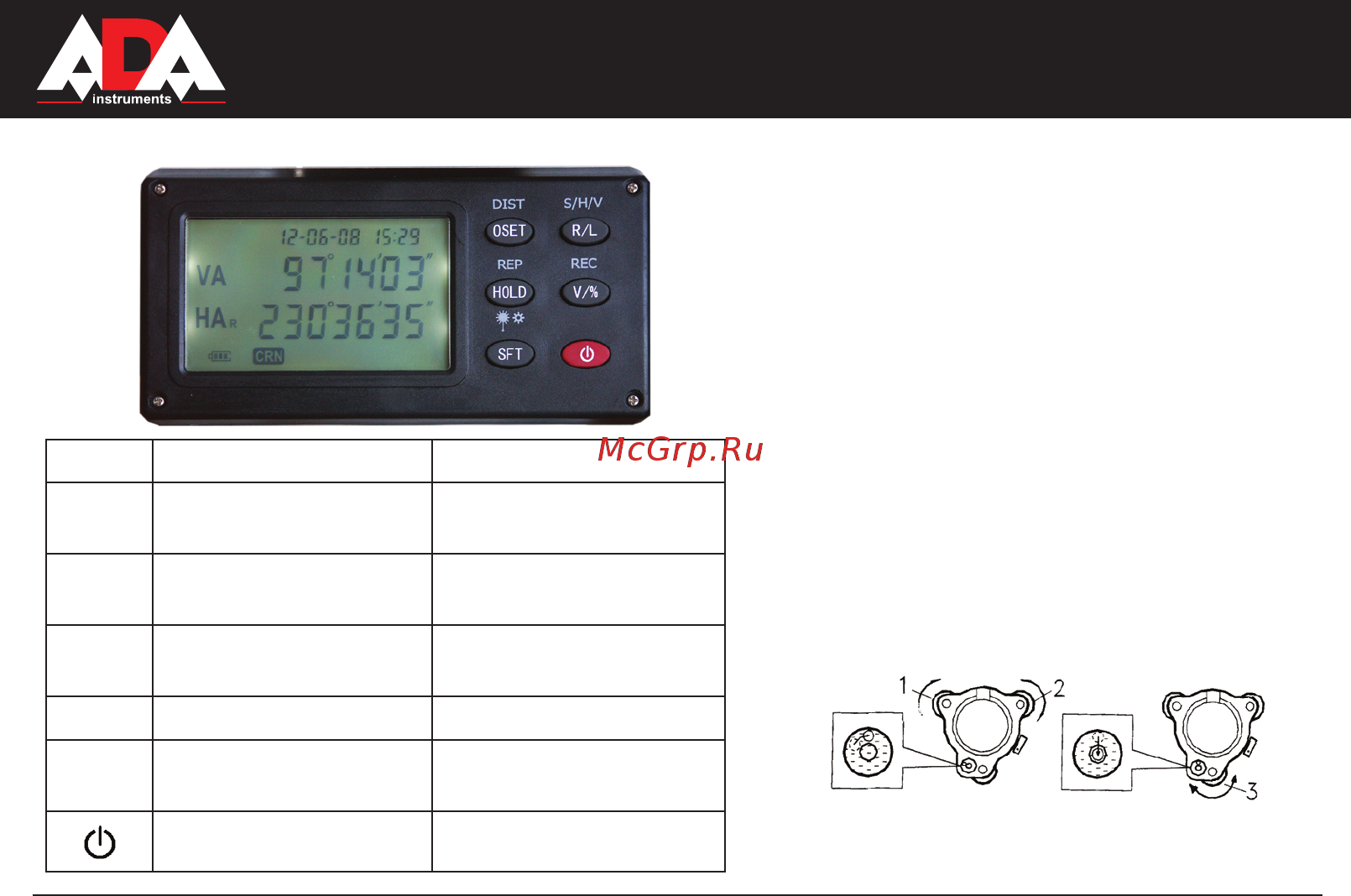

Operating keyboard and operating key

Keys Function 1 Function 2

OSET Setting horizontal 0 Distance measurement

(Connected with rangender)

HOLD Hold the horizontal angle Repeat horizontal angle

measurement

SFT Illuminate Select the second

function

R/L Horizontal angle right or left Setting the mode

V% Percent grade of vertical

angle

Output the data

Power switch

Preparative before measurement

1. Level the instrument.

1.1. Level and center the instrument correctly to insure

the best performance.

1.2. Place the tripod.

First, put the tripod leg in the proper position and

tighten the locking screws.

1.3. Leveling the instrument with circular level.

Use leveling screws 1,2 to move the bubble of the

circular level until the bubble of the circular level

until the bubble is now located on a line perpendicu-

lar to a line running through the centers of the two

leveling screws being adjusted. Revolve the level-

ing screw 3 to shift the bubble to the center of the

circular.

bubble
