128
AUDIOGRAM 3 Owner’s Manual

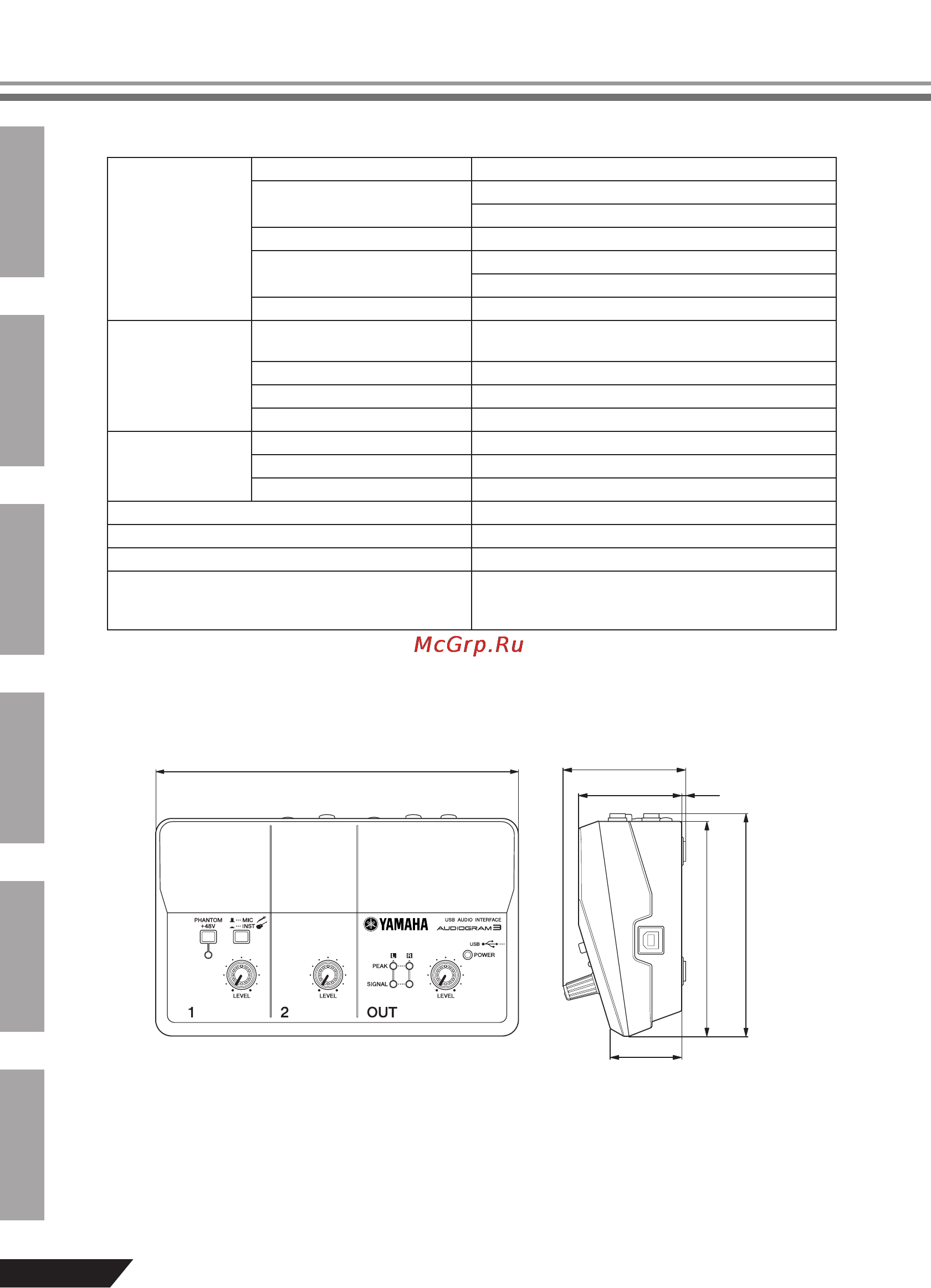

Specifications
General Specifications
Dimensional Diagrams
Jacks MIC/INST Input Jack x 1 Combo jack (Mic/HiZ)
LINE Input Jacks (L, R) x 1 Phone jacks
x 1 RCA pin jacks
PHONES Jack x 1 Phone jack
STEREO OUT Jacks (L, R) x 1 Phone jacks
x 1 RCA pin jacks
USB Connector x 1 USB 1.1 44.1/48 kHz, 16 bit
Controls MIC/INST Switch x 1 MIC: for microphones
INST (Hi-Z): for guitars, etc.
LEVEL Control x 2 Adjust the level of CH 1, 2
PHANTOM +48V Switch x 1 48 V, only for CH1
OUT LEVEL Control x 1 Adjusts the overall signal
Indicators Phantom Power x 1 Red
Level Indicators x 1 2 points (green, red)
Powerx 1 Green
Power Supply USB bus-powered
Dimensions (W x H x D) 180 x 61 x 112 mm
Net Weight 490 g
Included Accessories Cubase AI 4 DVD-ROM
USB cable
Owner’s Manual
W: 180
D: 112
108
36
H: 61
52 2
Unit: mm
audiogram3_en.book Page 128 Wednesday, April 2, 2008 2:40 PM
