RAID Configure:

System Disks:

Array Disks:

Spare Disks:

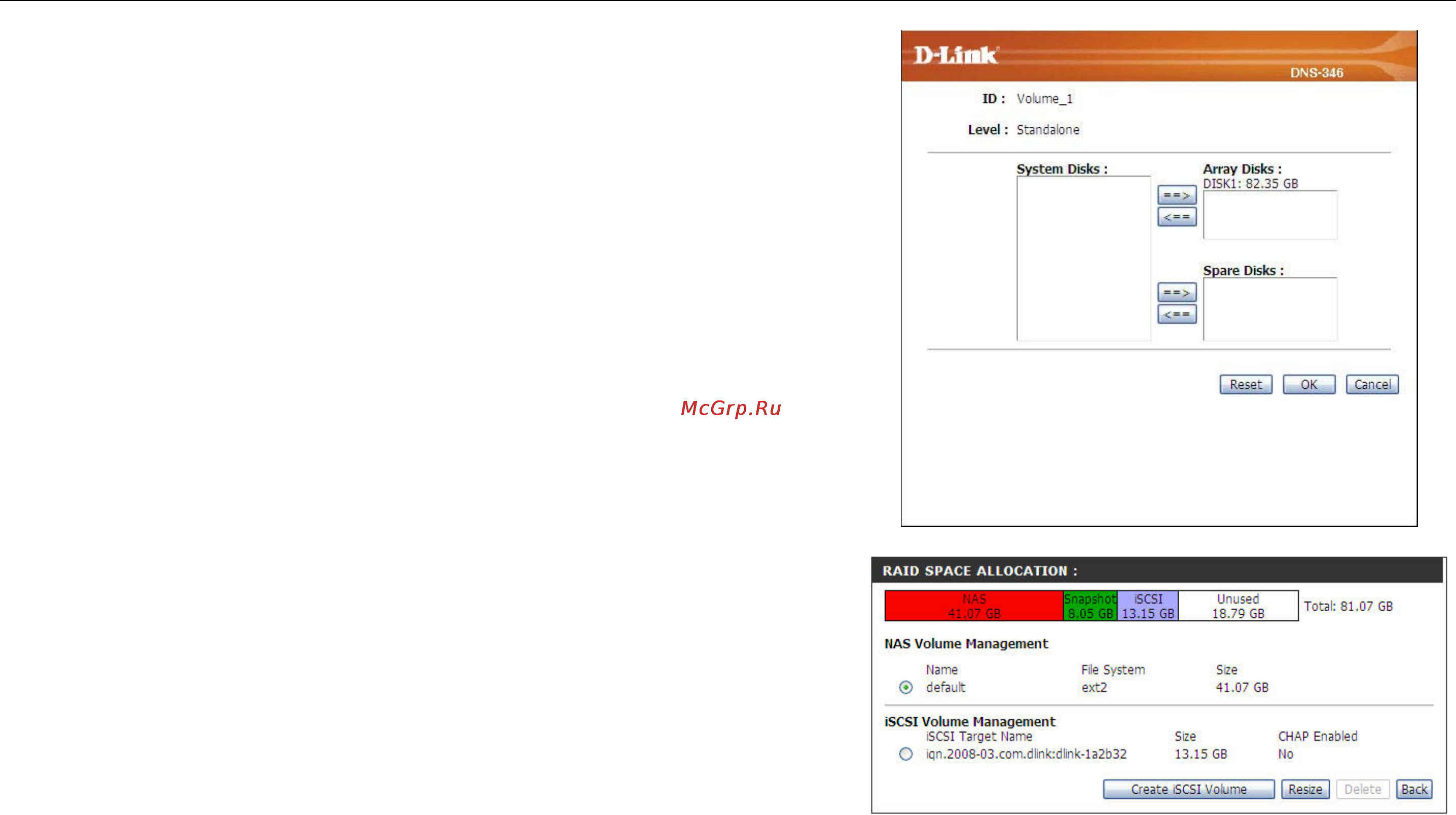

When the user clicks the Configure button the following screen

appears.

Displays the disks that are installed in the DNS-346.

Use the ==> button to add disks to the RAID array from the disks

listed in the System Disks section.

Use the <== button to remove disks from the array.

Use the ==> button to add spare disks to the RAID array from the

disks listed in the System Disks section.

Use the <== button to remove spare disks from the array.

Click the OK button to save the changes to the array.

RAID Space Allocation:

NAS Volume Management:

Create iSCSI Volume:

Resize:

Delete:

Back:

When the user clicks the Volume Management button the

following screen appears.

Click the radio button of the NAS Volume you want to configure.

Click the Create iSCSI Volume button to open the iSCSI Volume

Create window.

Click the Resize button to open the NAS volume resize window.

Click the Delete button to delete the NAS volume.

Click the Back button to return to the RAID settings window.
