D-Link DNS-346 USER’S MANUAL
Page 62 of 85

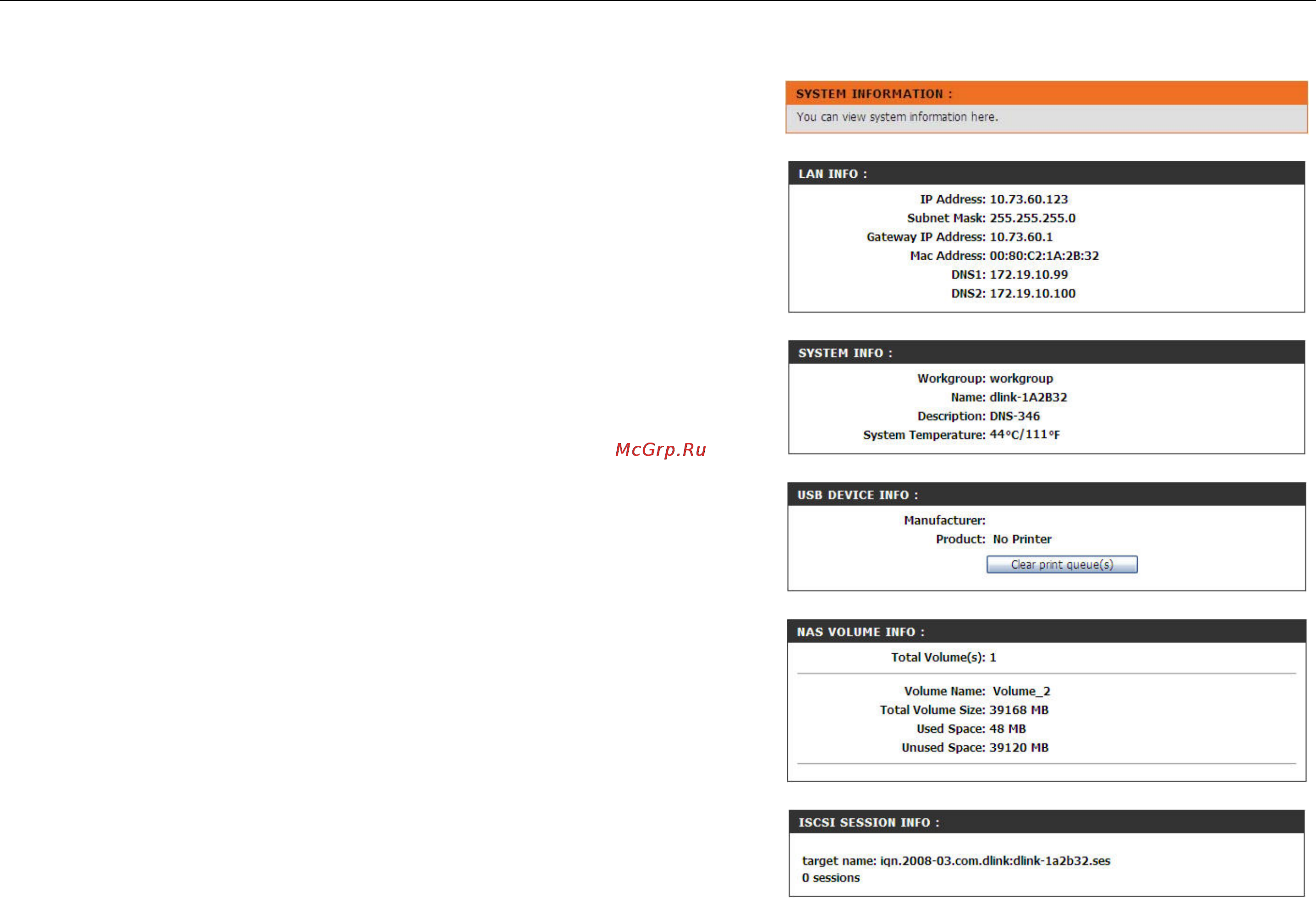

System Info Page
You can view system information here.
LAN Info: Displays the local network settings of the DNS-346
System Info: Displays the Workgroup, name, description and current
temperature of the DNS-346.
USB Device Info: Displays information for a connected USB printer or UPS. If your
computer is having problems printing to the DNS-346, you can
click the Clear print queue(s) button to remove any print jobs
that may be causing your computer not to print.
NAS Volume Info: Displays information regarding all NAS volumes on the DNS-346.
This information includes the total volume size, used space, and
unused space of every NAS volume.
iSCSI Session Info: Displays information about any iSCSI Sessions that have been
setup on the DNS-346.
