D-Link DNS-346 USER’S MANUAL
Page 7 of 85

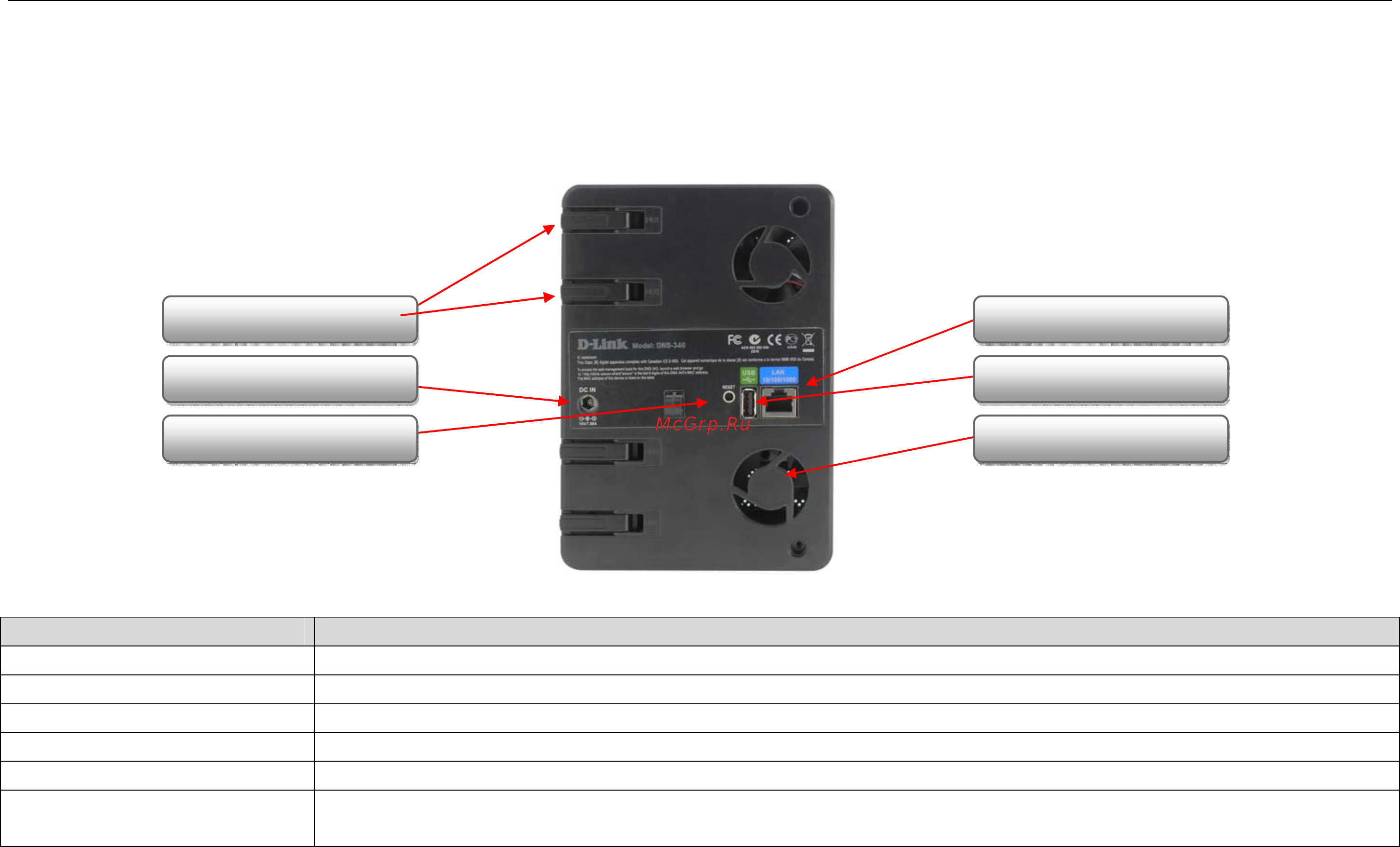

Rear Panel (Connections)
COMPONENT DESCRIPTION
Drive Eject Levers Use the provided levers to eject the SATA hard drives.
Reset Button Press this button for more than 5 seconds to reset the unit to factory defaults.
Power Receptacle Connect the 19V / 4.74A power supply to the receptacle.
USB Connector 1x USB 2.0 (Type A) connector. USB Host port for print server or USB UPS monitoring.
Gigabit Ethernet Port Use the Gigabit Ethernet Port to connect the DNS-346 to the local network.
Cooling Fans The cooling fans are used to cool the hard drives and feature speed control. When the unit is first powered on the fans rotate at a low
speed and rotate at a high speed when the temperature rises above 49 °C.
USB Connector
Cooling Fans
Gigabit Ethernet Port
Power Receptacle
Reset Button
Drive Eject Levers
