D-Link DSN-1100-10 [107/137] Ungrouping ports

xStack Storage Management Center Software User’s Guide 97

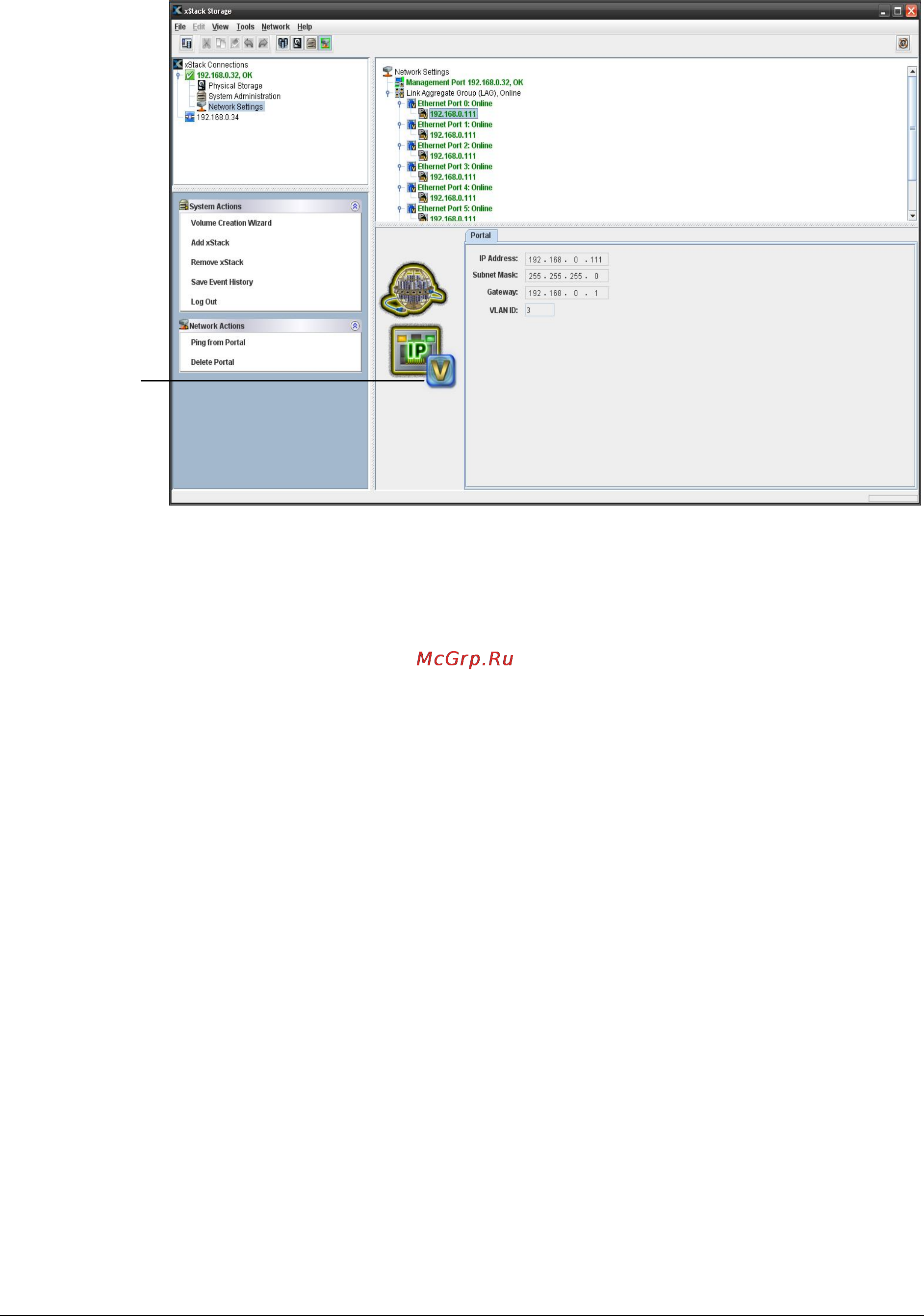

Figure 6-10. Example of an IP Address that Belongs to a VLAN-Enabled Group

6.5.2 Ungrouping Ports

If you want to ungroup the ports in a LAG:

1. In the Network Settings View of the Main Display, click a LAG.

2. Perform one of the following steps:

– On the Network menu, click Ungroup Ports.

– In the Network Actions panel, click Ungroup Ports.

– Press the right mouse button and click Ungroup Ports from the shortcut menu.

Any of these steps ungroups the ports in the selected group.

3. Record your settings in Table C-3.

This “V” Indicates

That the IP

Address Selected

in the Main

Display is VLAN

Enabled
