D-Link DSN-1100-10 [55/137] Destroying a volume

xStack Storage Management Center Software User’s Guide 45

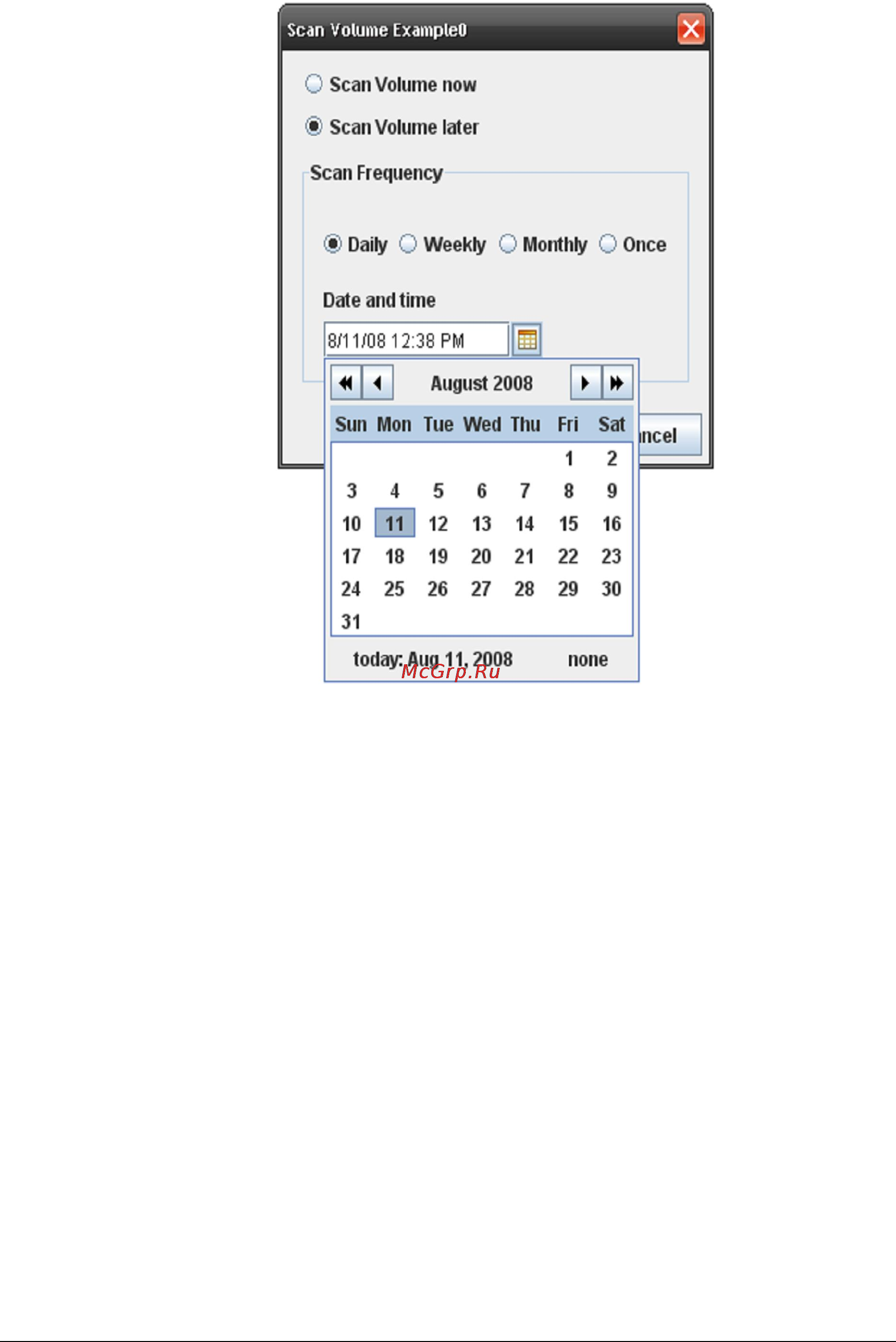

Figure 3-23, Pop-up Calendar

3.3.3 Destroying a Volume

If you no longer need a volume, you can remove or “destroy” it. Destroying a volume

does not “sanitize” data on the drive(s).

To destroy a volume:

1. In the Volume View, click a volume in the Main Display.

2. Perform one of the following steps:

– On the Volumes menu, click Destroy Volume.

– Click Destroy Volume in the Volume Actions panel.

– Press the right mouse button and click Destroy Volume from the shortcut

menu.

Any of these steps display the message in Figure 3-24.
