62 Chapter 4 Managing Physical Storage
4.1 Understanding the Physical Storage View
In the Physical Storage View, the Main Display shows the following information about
each of the xStack Storage drives:
The drive number
The total capacity
The percentage of capacity used
The status
If you click a drive in the Main Display:
The Drive Actions panel lists the actions you can perform on the selected drive.
See section 4.2.
The Detail Tabs let you view the properties and extents associated with the drive,
as well as SMART data and SMART attributes for SATA drives. See section 4.3.

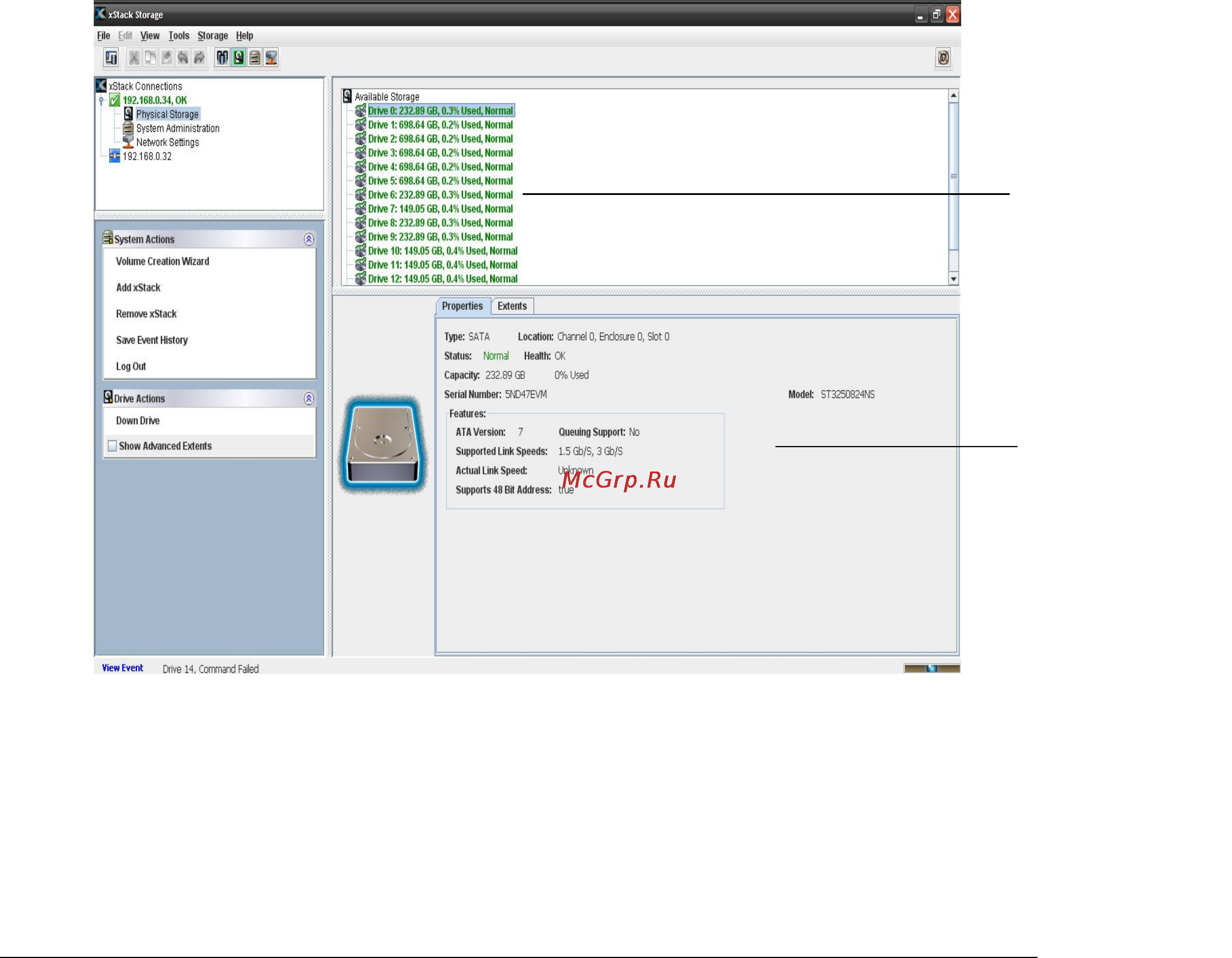

Figure 4-1. Example of the Physical Storage View
Drives Appear Here
(Shaded Drive is
Selected)
Information About the
Selected Drive
Appears Here
