xStack Storage Management Center Software User’s Guide 53

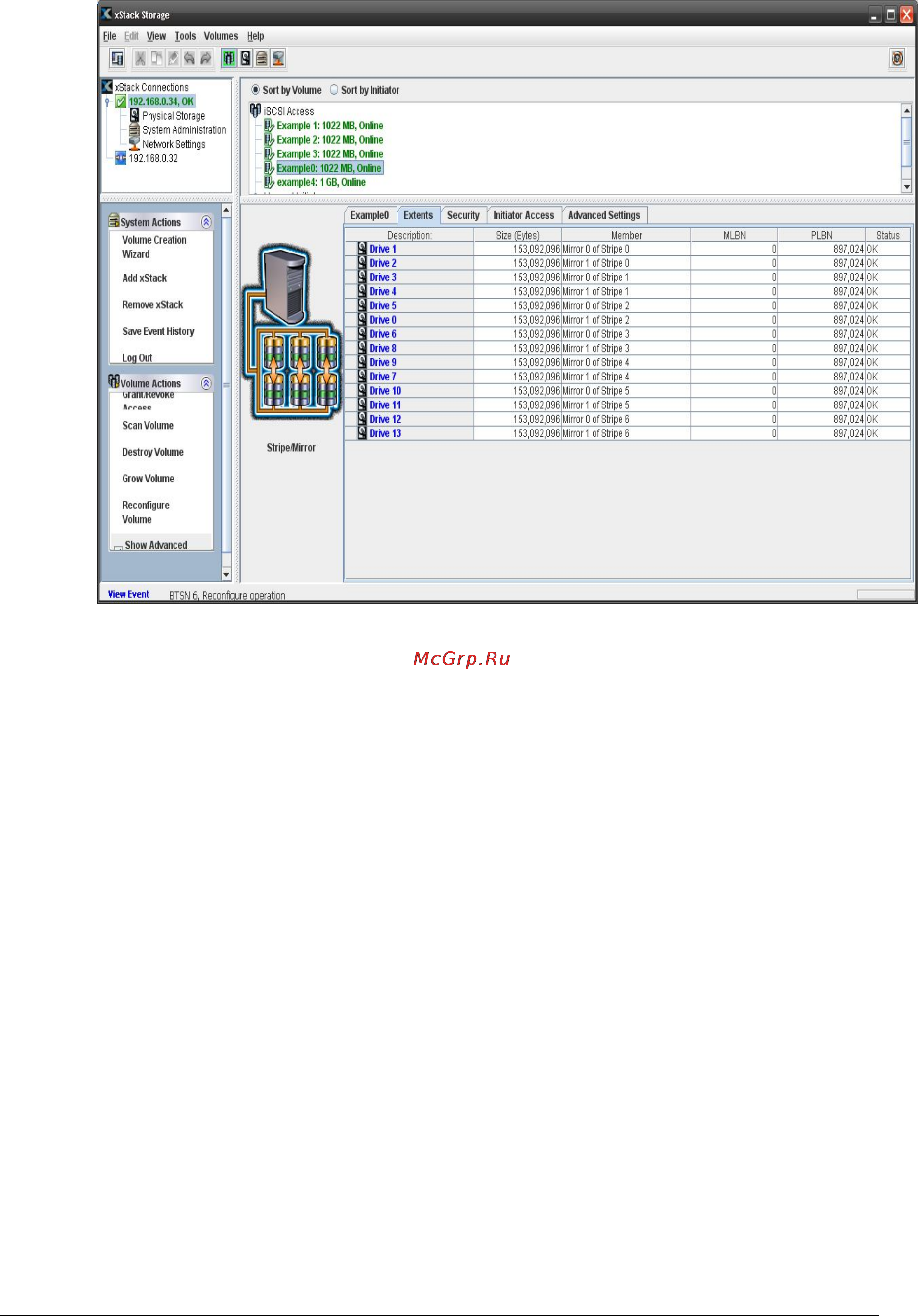

Figure 3-31. Example of Advanced Extent Information in the Extents Tab
3.4.3 Viewing Reconfiguration Information (Reconfigure Tab)
If the volume selected in the Main Display is being reconfigured (see section 3.3.5), a
Reconfigure tab appears between the Extents and Security tabs. This read-only screen
shows the description and status of the drive being reconfigured. Clicking a drive link in
the first Description column displays the Physical Storage View of the drive you
selected. When the reconfiguration process completes, this tab disappears
automatically.
