30 Chapter 3 Managing Volumes

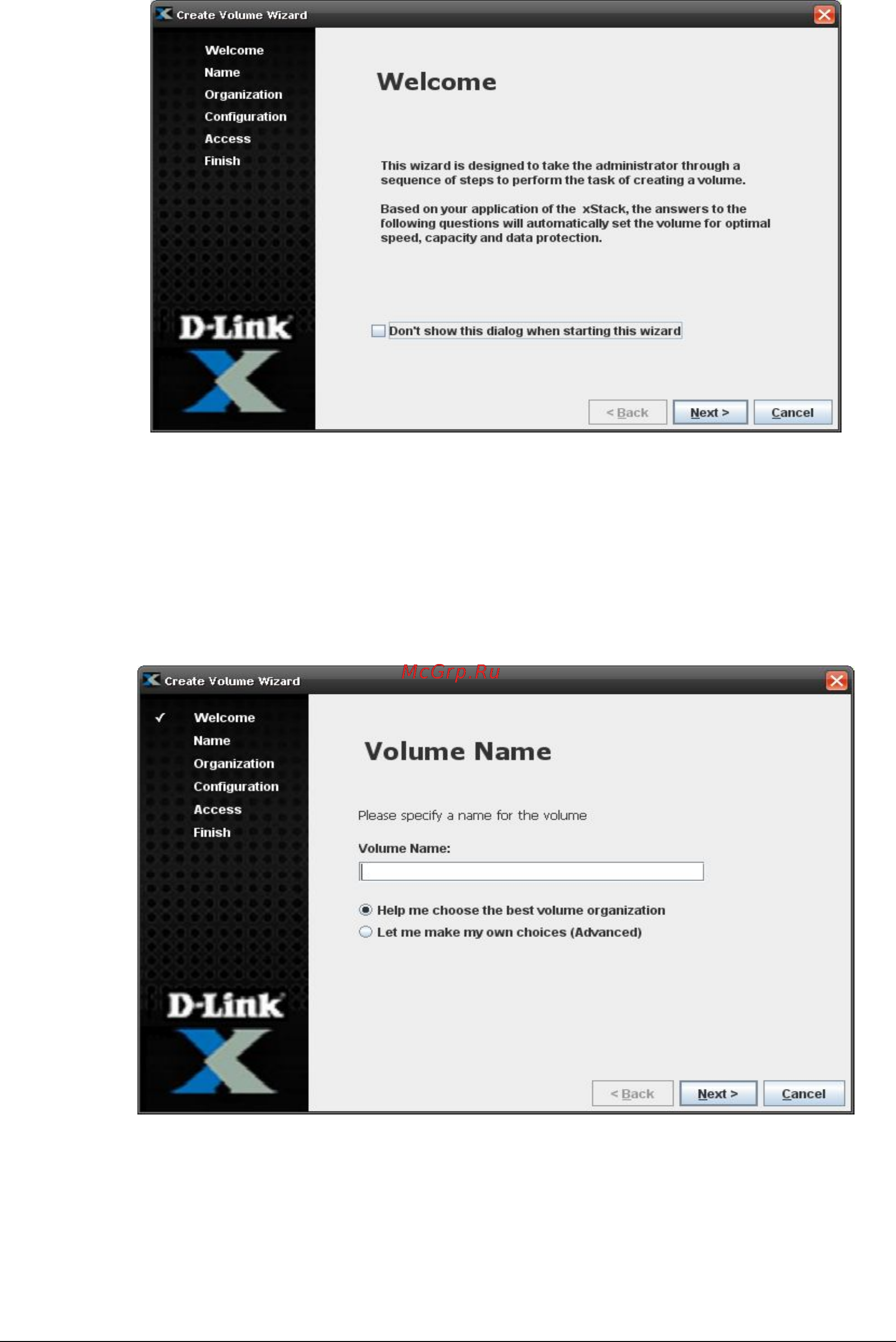

Figure 3-3. Create Volume Wizard Welcome Screen

2. To skip the Welcome page in the future, check Don’t show this dialog when

staring this wizard.

3. Click Next.

The Volume Name screen appears (see Figure 3-4).

Figure 3-4. Volume Name Screen

4. In the Volume Name field, enter a name for the volume. Volume names can

contain from 1 to 30 alphanumeric upper- and lower-case characters. Spaces and

special characters, such as parentheses, dashes, and question marks, are

permitted.
