xStack Storage Management Center Software User’s Guide 33

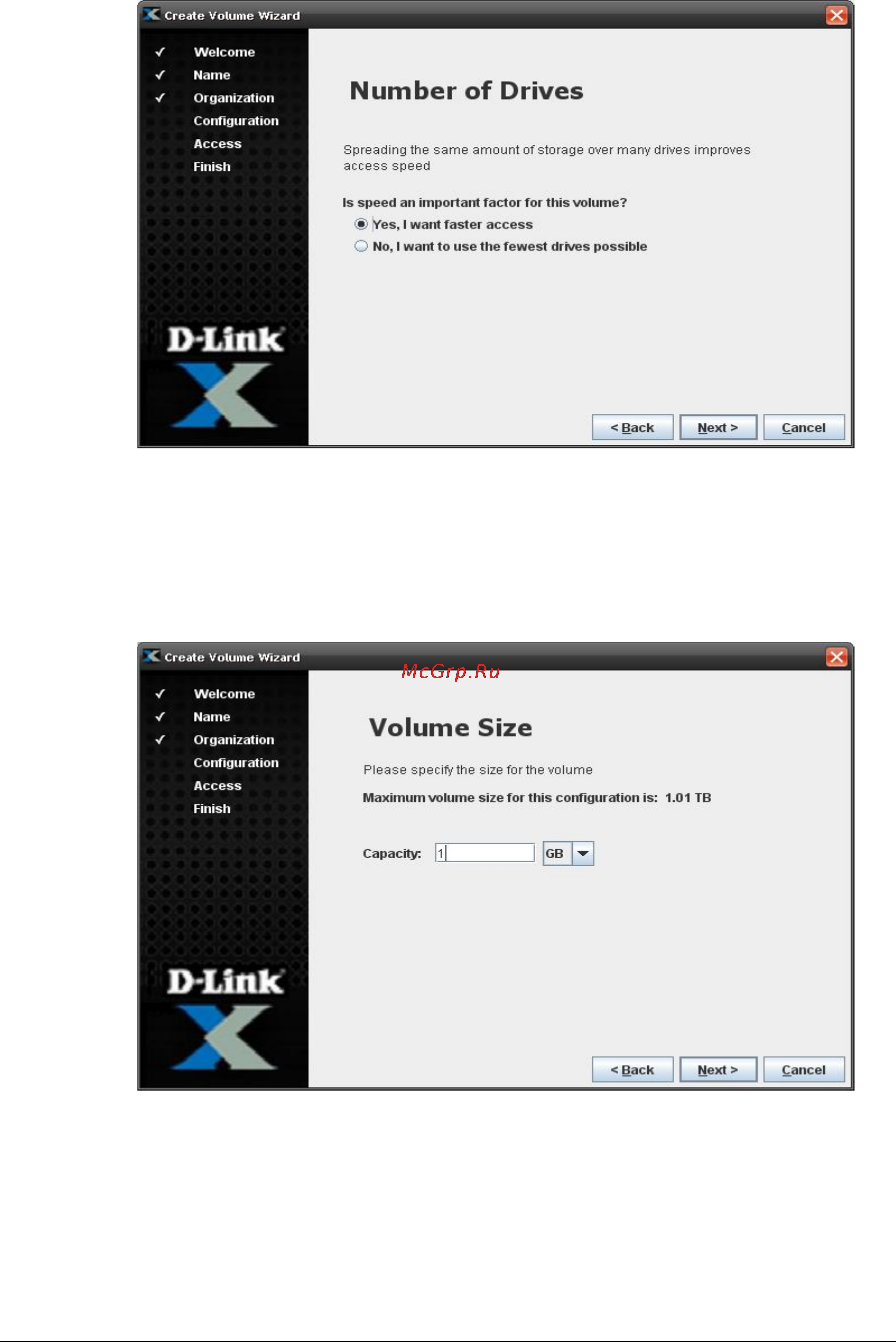

Figure 3-8. Number of Drives Screen

4. Select whether you want to distribute the same amount of storage over many drives

to improve performance or to use the fewest drives possible. Click Next.

The Volume Size screen appears (see Figure 3-9).

Figure 3-9. Volume Size Screen

5. In the Volume Size screen, use the Capacity field and drop-down list to specify the

size to be allocated for this volume. Do not exceed the maximum volume size

shown in this screen. Click Next.

The Grant Access screen appears (see Figure 3-10).
