xStack Storage Management Center Software User’s Guide 39

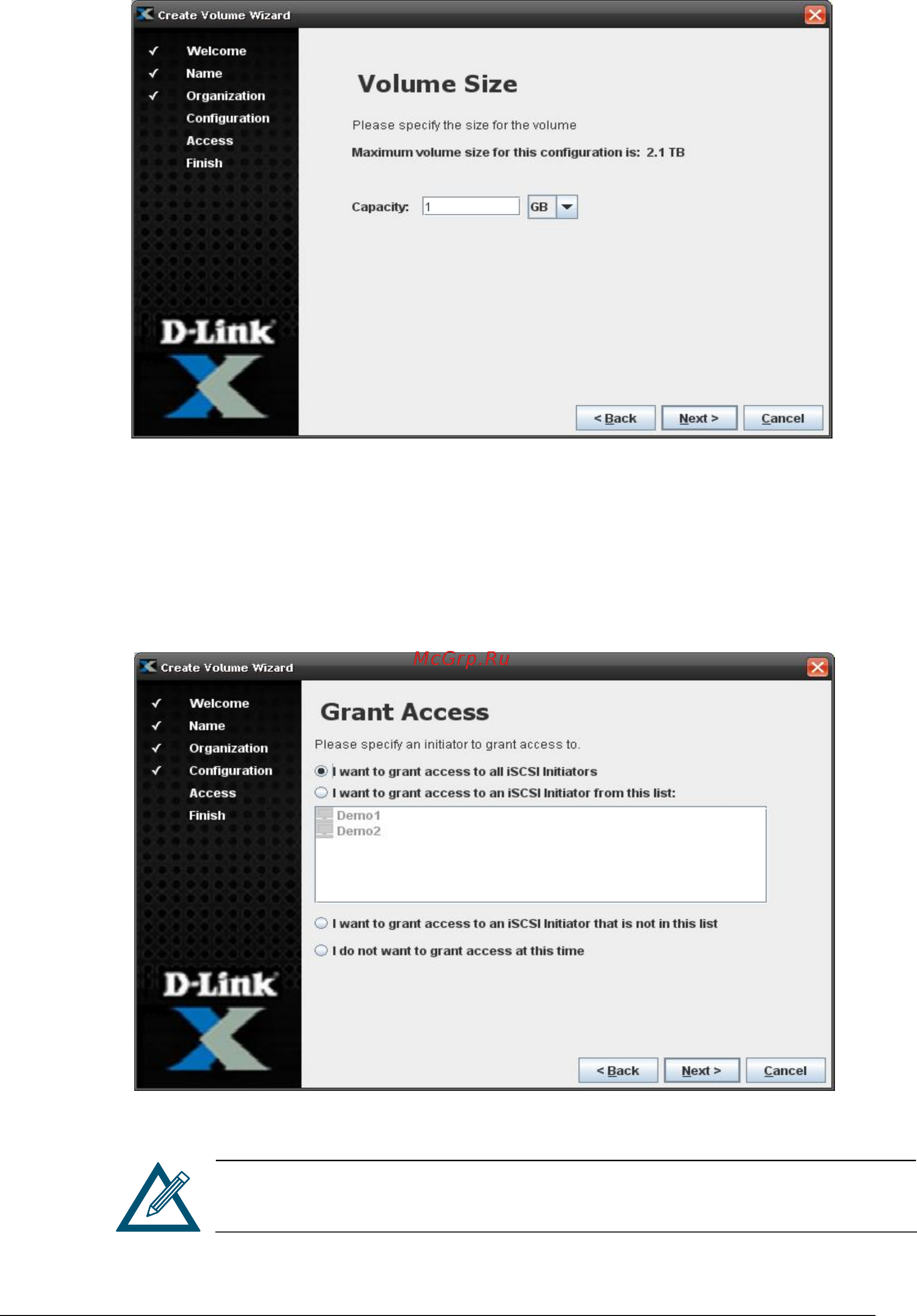

Figure 3-17. Volume Size Screen

8. In the Volume Size screen, use the Capacity field and drop-down list to select the

size to be allocated for this volume. Do not exceed the maximum volume size

shown in the screen. Click Next.

The Grant Access screen appears (see Figure 3-18).

Figure 3-18. Grant Access Screen

The resulting volume capacity may be slightly smaller than the size

specified, depending on the type of volume and the number of drives used.
