72 Chapter 5 System Administration

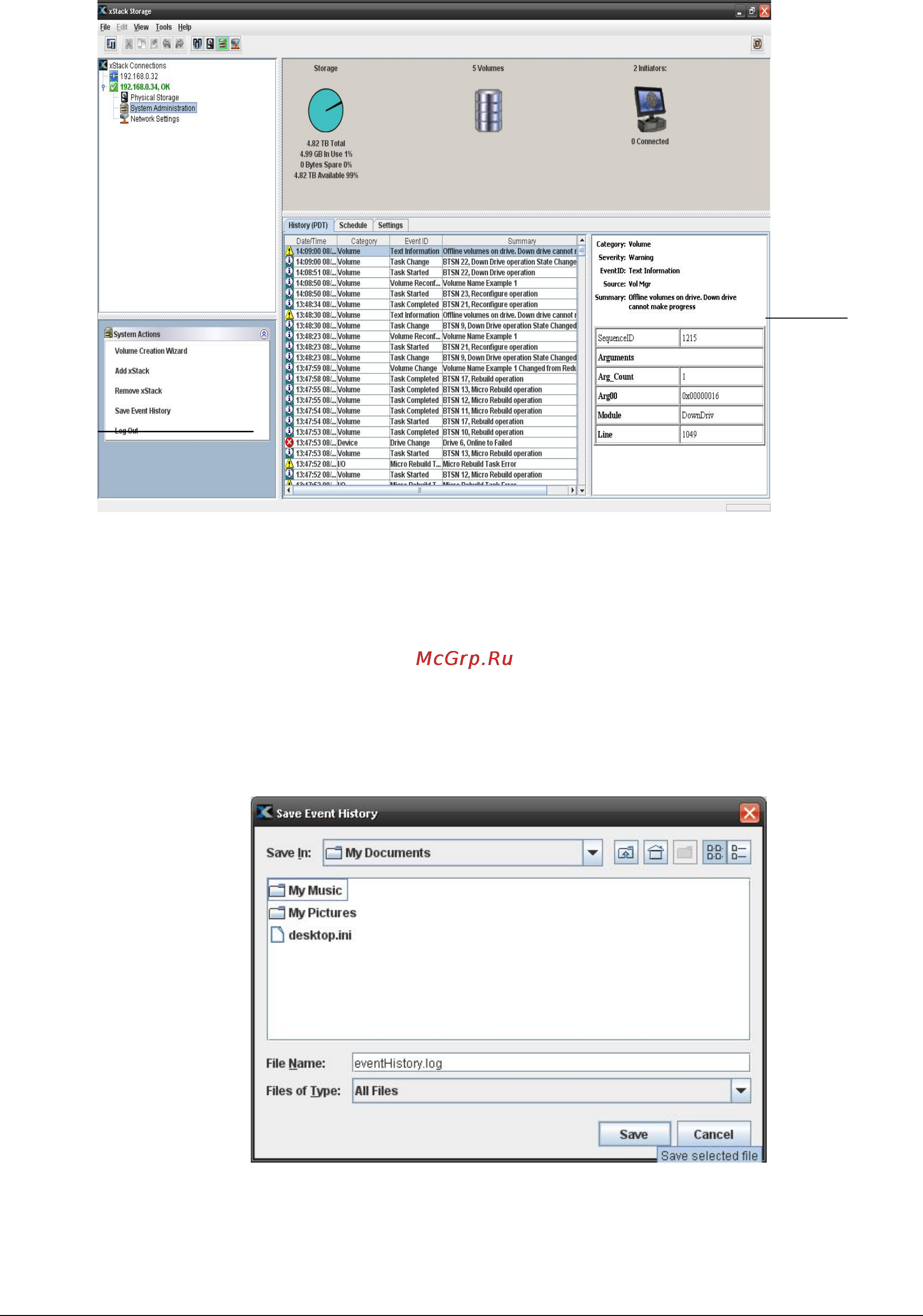

Figure 5-2. Example of the History Tab

You can save the event history as a text file on a local computer.

1. Perform one of the following steps:

– On the Tools menu, click Save Event History.

– In the System Actions panel, click Save Event History.

Any of these steps displays the Save Event History dialog box (see Figure 5-3).

Figure 5-3. Save Event History Dialog Box

2. Select the path where you want the event log to reside.

3. Click the Save button.

When You Select

an Item Here…

Information

About the

Item Appears

Here
