xStack Storage Management Center Software User’s Guide 75

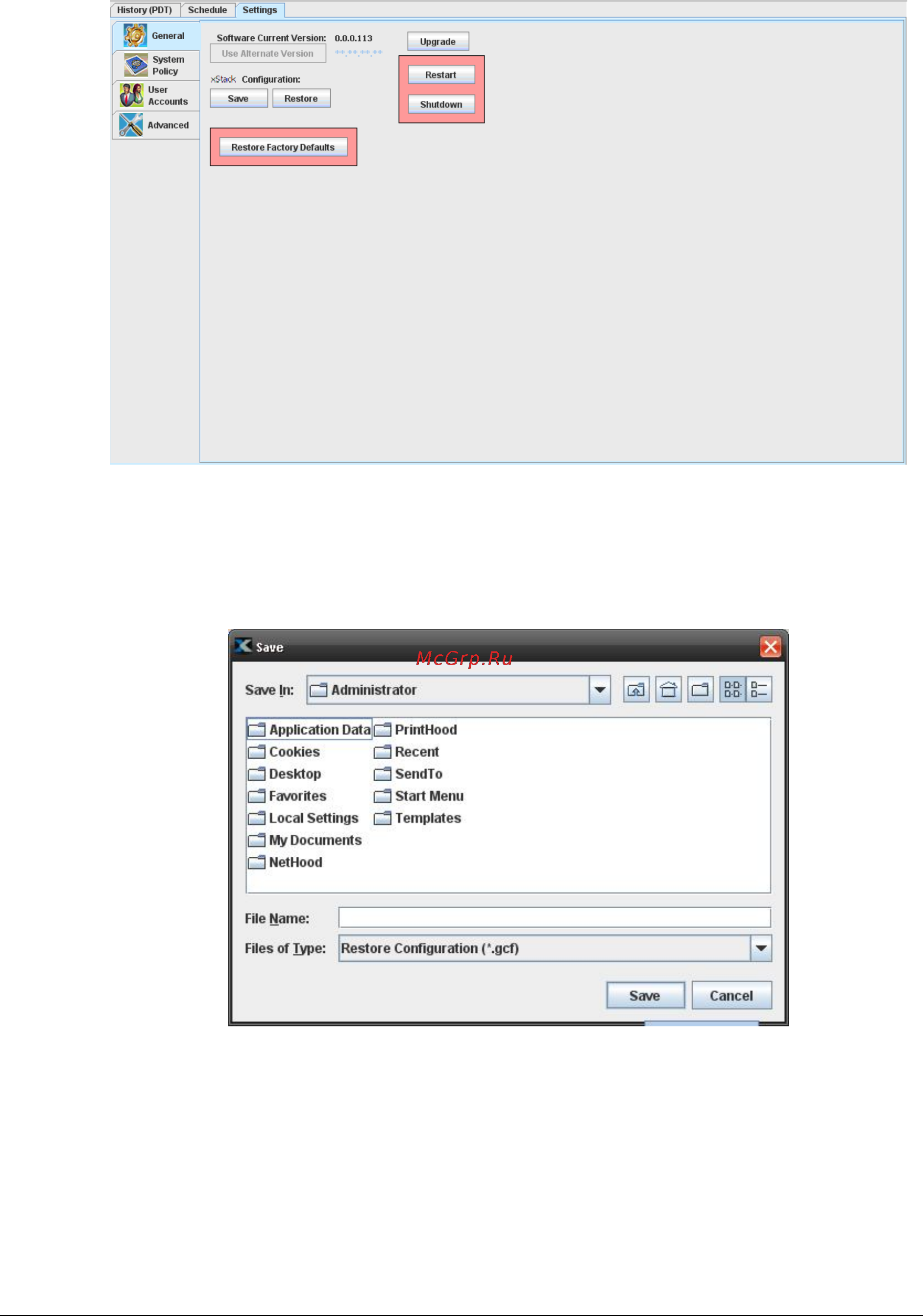

Figure 5-6. Settings Tab (General Settings Shown)

2. Under xStack Configuration, click the Save button.

The Open dialog box appears (see Figure 5-7).

Figure 5-7. Open Dialog Box

3. Using the Open dialog box, go to the location where you want to store the configuration

file.

4. In the File Name field, enter a name for the configuration file. The extension .gcf is

appended to the end of the file name automatically.
