Configuration
D-Link DPH-300S User Manual
20

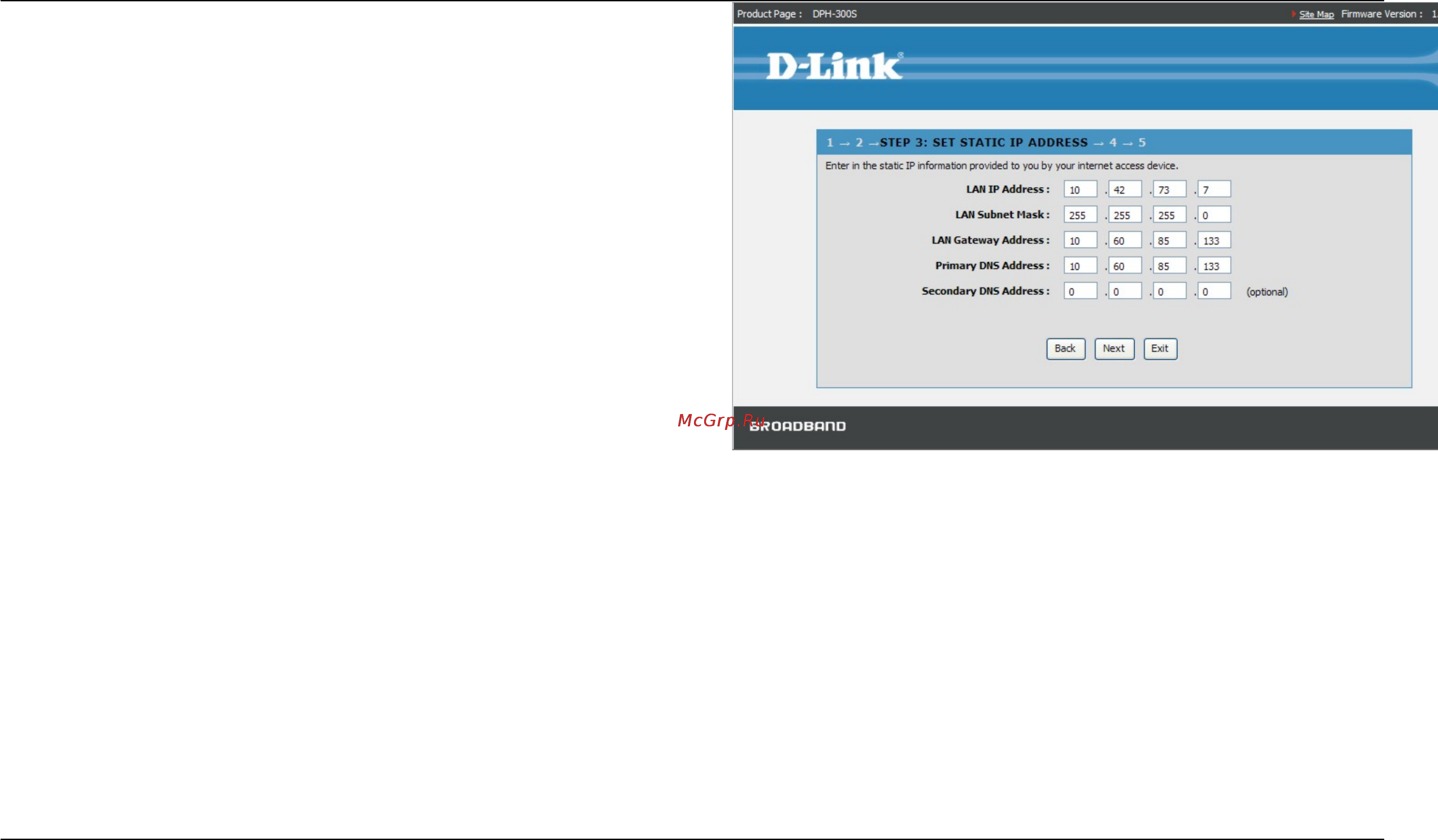

STATIC IP ADDRESS
Static IP (or Fixed IP) addressing is used when connecting to a broadband
connection the requires static IP addressing or when connecting behind a
router that does not offer a DHCP server function. This choice requires the
input of specific IP address information.
IP Address − Input the IP address provided from you router configuration
settings, ISP, or network administrator.
Subnet Mask − Input the Subnet mask provided from your router
configuration settings, ISP, or network administrator.
Default Gateway address − Input the Gateway address provided from your
router configuration settings, ISP, or network administrator.
Primary DNS Address − Input the DNS address provided from your router
configuration settings, ISP, or network administrator.
Secondary DNS Address − Input a secondary DNS address (optional)
provided from your router configuration settings, ISP, or network
administrator.
