Configuration
D-Link DPH-300S User Manual
21

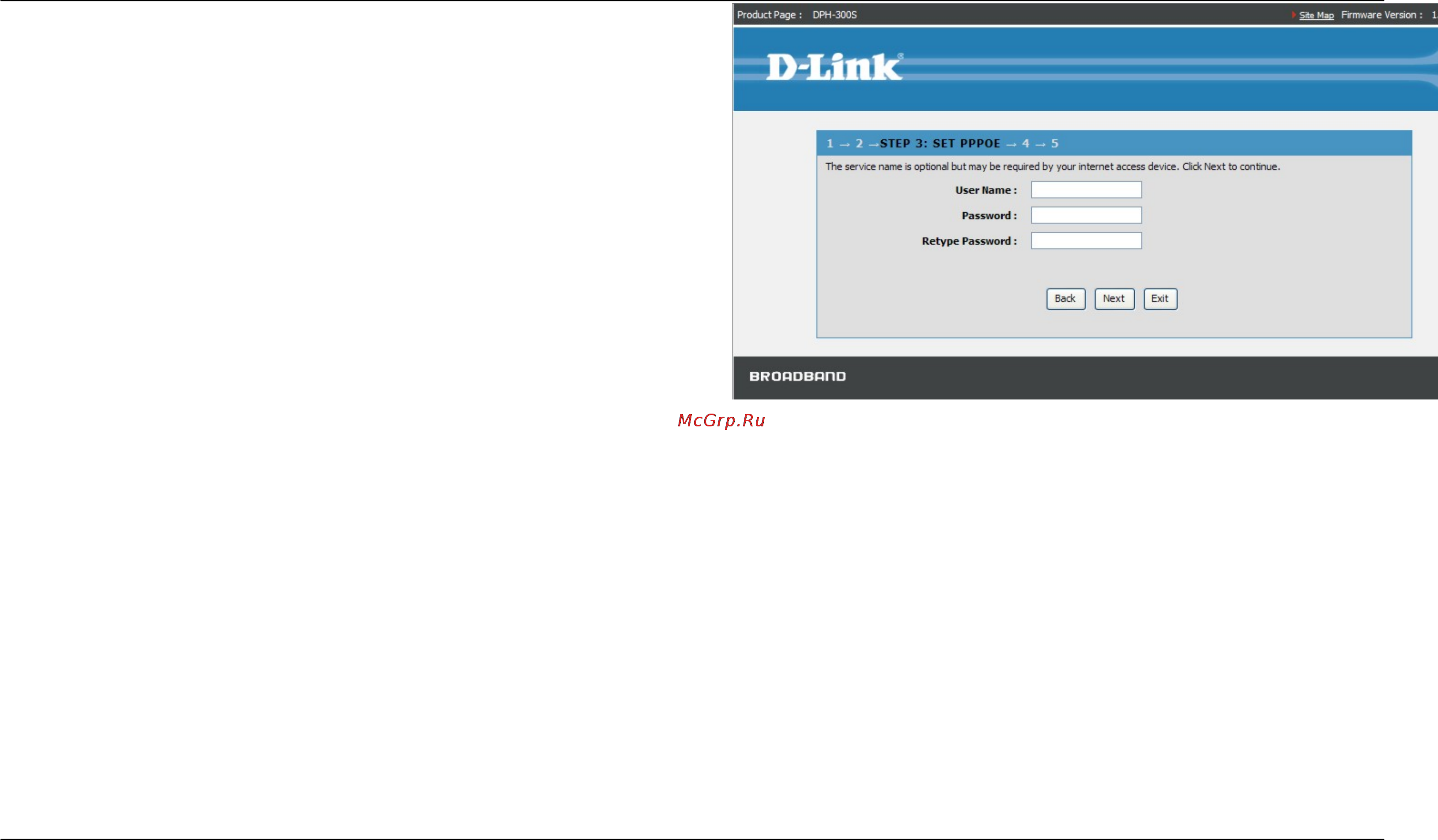

SET PPPoE
PPPoE – (Point-to-Point Protocol over Ethernet) is used when connecting
directly to a DSL modem that offers a PPPoE connection. This choice
requires the input the User name and Password of your PPPoE account −
provided by your ISP.
User Name − Enter your PPPoE User Name as provided by your ISP.
Password − Enter your PPPoE Password.
Retype Password − Retype your PPPoE Password to confirm.
Click the Connect button to continue.
