Configuration
D-Link DPH-300S User Manual
22

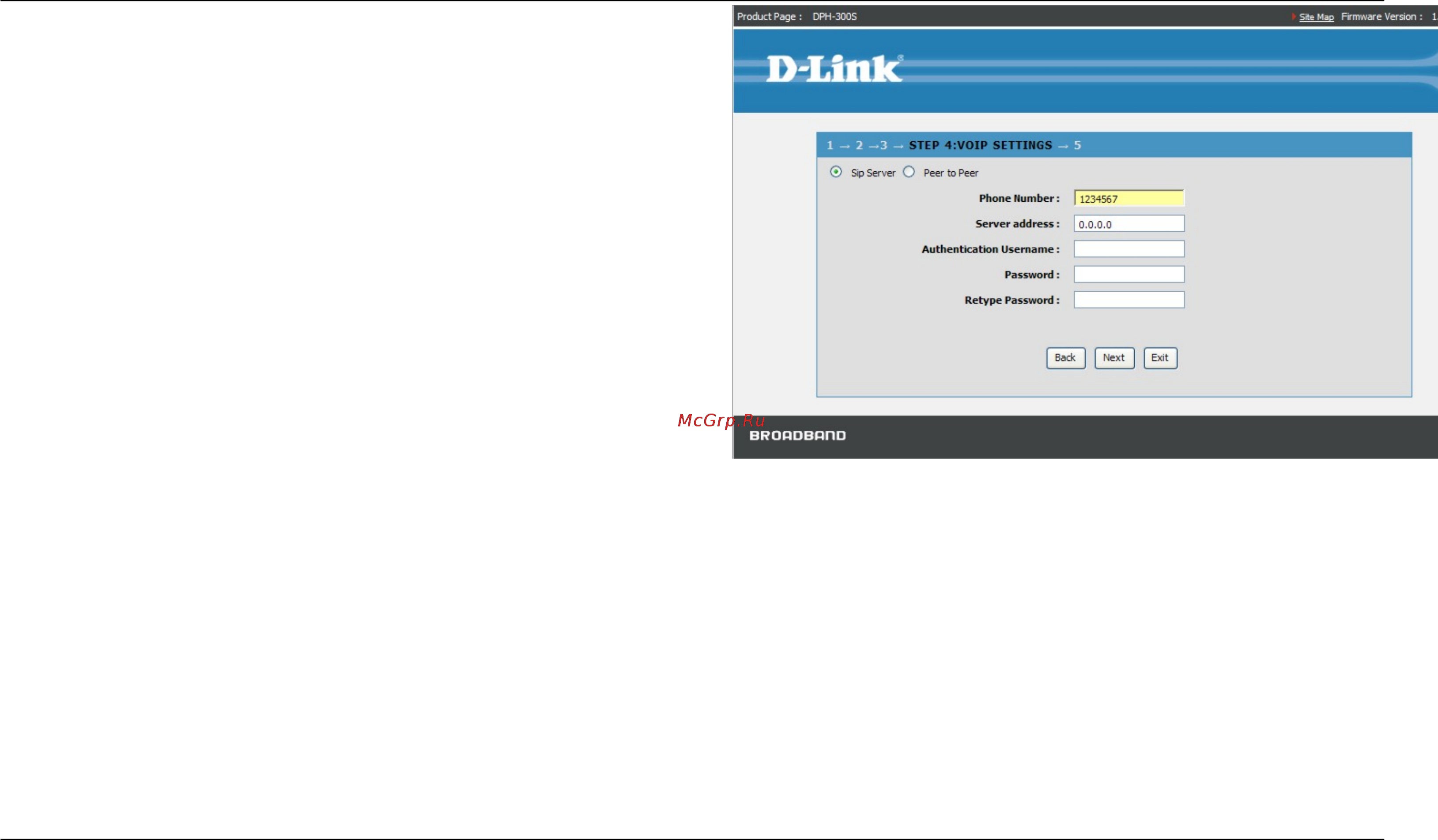

VOIP SETTINGS
A SIP User Agent is a logical entity capable of handling VoIP calls between
peers.
Phone Number – The telephone number assigned to the User Agent by the
SIP VoIP telephony service provider.
Server address – This selects the port number the router will listen to when
determining when calls are being made.
Authentication Name – The Username used to access your SIP server and
your VoIP service provider.
Password – The Password used to access your SIP server and your VoIP
service provider.
Retype Password – Retype your password to confirm and click Apply.
