Assembly

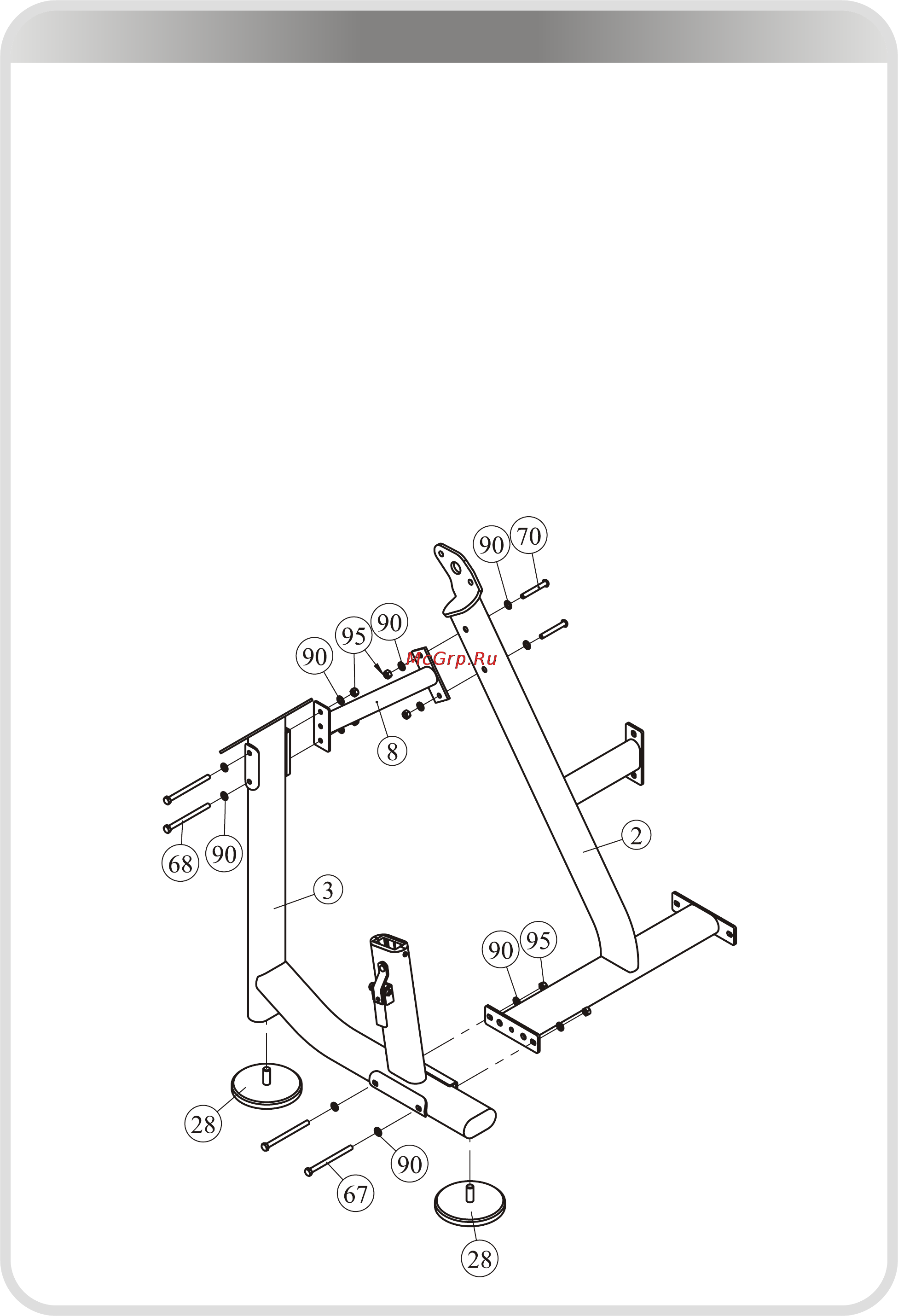

1. Attach two Adjustable Foot plate (#28) to the Main Frame (#3).

2. Attach the Bottom Cross Brace (#2) to the Main Frame (#3) using:

● two M10*135 HHB (#67)

● four Φ11*Φ20*2 Flat Washers (#90)

● two M10 Nylon lock Nuts (#95)

3. Attach the Top Cross Brace (#8) to the Main Frame (#3) using:

● two M10*130 HHB (#68)

● four Φ11*Φ20*2 Flat Washers (#90)

● two M10 Nylon lock Nuts (#95)

4. Attach the Bottom Cross Brace (#2) to the Top Cross Brace (#8) using:

● two M10*80 HHB (#70)

● four Φ11*Φ20*2 Flat Washers (#90)

● two M10 Nylon lock Nuts (#95)

Note: Hand tighten bolts and Nylon Lock nuts.

STEP 1
